Stereocontrolled synthesis of 5-azaspiro[2.3]hexane derivatives as conformationally “frozen” analogues of L-glutamic acid

Introduction

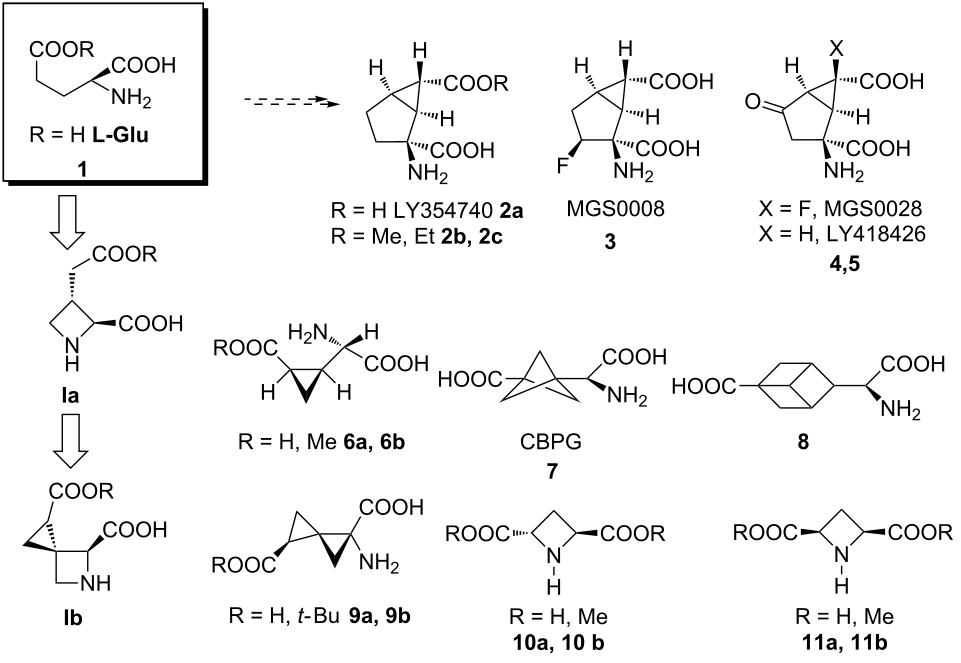

L-Glutamic acid (L-Glu) is the primary excitatory neurotransmitter in the mammalian central nervous system (CNS) playing a critical role in the learning and memory process [1-3]. L-Glu receptors can be subdivided in ionotropic receptors (NMDA, AMPA and kainite receptors) [4,5] and G-protein coupled or metabotropic glutamate receptors (mGluRs) [6,7]. To date, eight different metabotropic receptor subtypes (mGluR1–8) have been identified. Compounds that modulate the function of the mGluRs might be useful for treating a wide range of CNS disorders including schizophrenia, depression, anxiety, addiction, pain, epilepsy and neurodegenerative diseases such as Parkinson’s and Alzheimer’s. Therefore, the identification of potent and selective mGluRs agonists and/or antagonists is critical to elucidate the role of the individual GluRs in the pathophysiology of these CNS diseases. In the last decade several potent in vitro and in vivo mGluR agonists have been reported (Figure 1).

Eglumegad (LY354740, 2a) [8-10] was identified by Eli Lilly and investigated as a potential treatment for anxiety and drug addiction. Modifications to this molecule resulted in the identification of the analogues MGS0008 (3) [11] and MGS0028 (4) [12,13]. In addition, the conformationally constrained analogues of L-Glu 6a,b, 7, 8 and 9a,b were reported [14-18] as either ionotropic or metabotropic glutamate receptors ligands, obtained by “freezing” the glutamate skeleton in search for subtype selective bioactive conformations [19]. Following the latter approach, Ib, shown in Figure 1, was designed as a novel potential ligand of the L-Glu receptors and building block for peptidomimetics. To the best of our knowledge, few structurally related azetidine derivatives 10a,b,11a,b and Ia [20-22], have been reported to date. The preparation of compound Ib appears challenging due to both the need to control the stereochemistry of three contiguous chiral centers and the presence of a [2.3]-spiro junction connecting the cyclopropane moiety with a highly functionalized azetidine ring. Here, we describe the original synthetic approach of compound Ib along with the stereochemical elucidation of the diastereoisomers obtained.

Results and Discussion

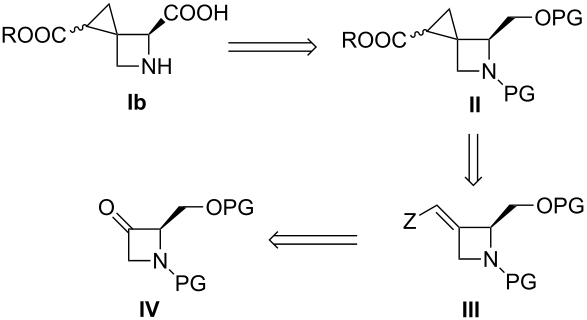

It was envisioned that the synthesis of compound Ib could be accomplished as highlighted in Scheme 1 starting from the known ketone derivative IV [23,24], pursuing two different synthetic strategies: a) cyclopropanation of an α,β-unsaturated ester (compound III, Z = COOR); b) metal-catalyzed cyclopropanation of the corresponding terminal olefin derivative (compound III, Z = H) with a diazoacetate derivative.

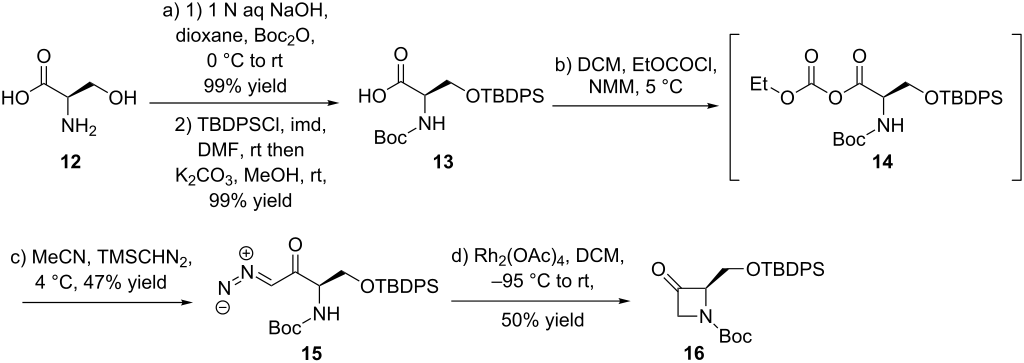

After having accomplished this key step, intermediate II would be transformed into the target compound Ib by sequential deprotection and oxidation of the primary alcohol to access the targeted bridged amino acid derivative. Scheme 2 shows that the synthesis started from the known azetidinone derivative 16 [23,24], whose preparation was further optimized by replacing step c) CH₂N₂ (diazomethane) with TMSCHN₂ (trimethylsilyl diazomethane).

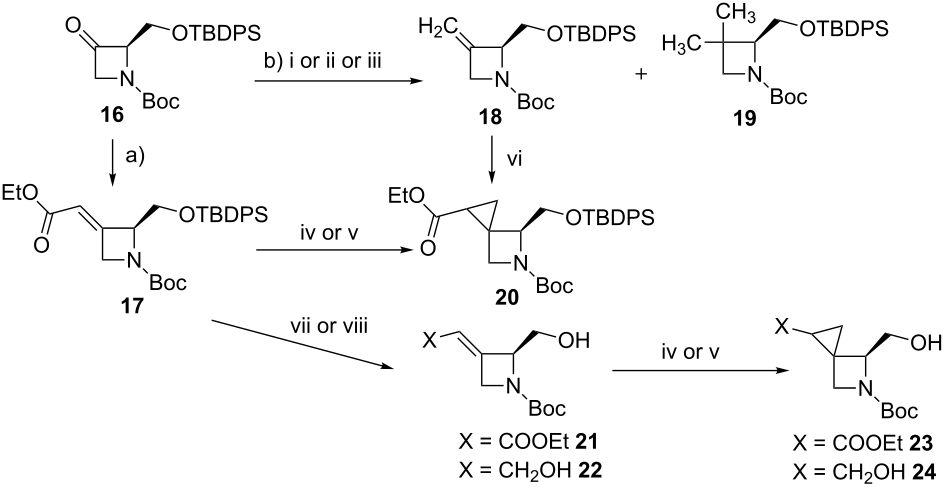

This intermediate was transformed into intermediate 17 by a Horner–Wadsworth–Emmons reaction [23,24], thereby obtaining 17 as the single E-isomer in 68% yield after purification by flash chromatography (Scheme 3).

Then, a systematic study of the reactivity of compound 17 was undertaken to identify the most efficient method to introduce the cyclopropane ring on the sterically hindered, α,β-unsaturated trisubstituted olefin group. With this goal in mind, both the Corey–Chaykovsky [25-27] and the Simmons–Smith [28-33] cyclopropanation reaction were attempted (highlighted in Scheme 3). Regrettably, when these reactions were performed under different reaction conditions by changing the base, the solvent, the temperature and the reaction time, only trace amounts of final product 20 were obtained. Following these initial negative results, compound 17 was de-silylated to remove the steric bulk of the protecting group and improve the reactivity towards the cyclopropanation reactions, affording compound 21. In addition, the ester moiety was reduced with DIBAL (diisobutylaluminium hydride) to yield compound 22. Corey–Chaykovsky cyclopropanation and Simmons–Smith cyclopropanation protocols were then performed on both derivatives 21 and 22 obtaining only trace amounts of products 23 and 24. Based on this initial set of results, we decided to abandon the synthetic strategy a) and to explore the synthetic feasibility of approach b), namely the cyclopropanation of the corresponding terminal olefin derivative 18. To explore this alternative approach, we managed to prepare the ethylidene derivative 18 by using either the Wittig or the Tebbe olefination reaction [34-37]. The former reaction, when accomplished in the presence of methyltriphenylphosphonium bromide and BuLi (butyllithium), successfully afforded the olefin derivative 18, albeit in low yield (23%). The Tebbe reaction was found to be more capricious, and it worked successfully only in small scale (50 mg of compound 16) and in the presence of a large excess of Tebbe reagent (from 4 to 8 equivalents), giving the target compound 18, but only in limited yield (37%). However, when this reaction was scaled-up (400 mg of compound 16), no conversion to the desired olefin derivative 18 was observed, and, regrettably, only the byproduct 19 was isolated from the reaction mixture. To overcome this synthetic hurdle and to obtain amounts of the key intermediate 18 which are large enough to investigate its reactivity in the following cyclopropanation reaction, we decided to attempt the Petasis olefination reaction [38,39]. The initial attempts afforded compound 18 in 50% average yield, but also resulted in significant amounts of the undesired byproduct 19 (ratio 18:19 = 4:1 by ¹H NMR), a compound difficult to separate by flash chromatography from product 18. Therefore, a thorough optimization of the reaction conditions was undertaken to maximize the yield, avoiding the formation of the byproduct 19. In particular, when the reaction was performed with a large amount of compound 16 (1.5 g) under dilute reaction conditions (0.034 M solution in toluene) by adding 3 equivalents of the Petasis reagent and stirring the reaction mixture at 70–90 °C for 2 h, the olefin derivative 18 was isolated in 58% yield after purification by flash chromatography. Notably, under these reaction conditions no formation of the byproduct 19 was observed. After successfully obtaining terminal olefin 18, the efforts were then focused on the exploration of the reactivity of the terminal olefin towards the key cyclopropanation step performed in the presence of ethyl diazoacetate and Rh₂(OAc)₄ (rhodium acetate dimer). The reaction was carefully studied in different solvents (i.e., CH₂Cl₂, DCE, toluene) and with variable amounts of both ethyl diazoacetate and Rh₂(OAc)₄. In particular, encouraging results were obtained when the reaction was performed in CH₂Cl₂ in the presence of 1 equivalent of ethyl diazoacetate added to the reaction mixture by a syringe pump over 10 h, heated under reflux, and in the presence of a catalytic amount of Rh₂(OAc)₄. Under these conditions target compound 20 was obtained in poor yield (12%) as a mixture of diastereoisomers inseparable by flash chromatography. Then, the use of an excess of ethyl diazoacetate (8 equivalents) led to an increased reaction yield of up to 51%. Finally, an optimization study on both the reaction concentration (0.025 M) and the catalyst loading (10% Rh₂(OAc)₄), enabled us to improve the yield up to 60%. As already anticipated, compound 20 was obtained as a mixture of diasteroisomers. The HPLC analysis of the mixture revealed the presence of six diasteroisomers: two of them major (relative ratio: 49%, 33%), the others minor (12%, 3%, 1.8% and 1.2%, respectively). The presence of two unexpected additional diastereoisomers can be explained based upon a partial racemisation of the chiral center next to the nitrogen, most likely occurring during the Petasis olefination reaction of intermediate 16. The two most abundant diastereoisomers were isolated in pure form by semi-preparative chiral HPLC and their stereochemistry was elucidated by NOE studies [40]. In principle, as shown in Figure 2, the attack of the carbene intermediate to the olefin moiety 18 can occur at both the re and si faces of the terminal olefin group, therefore affording both the trans and the cis pair of diasteroisomers.

As expected based on data available in literature [41,42], the reaction was highly diastereoselective toward the formation of the two trans cyclopropane derivatives 20a and 20c. Furthermore, a partial facial selectivity was observed in favor of the Si face attack (ratio 20a:20c = 1.5:1). To explain the results, the relative stability of the four diastereoisomers 20a–d was assessed by theoretical calculations. 10000 conformations were generated for each molecule by using the mixed torsional/low-mode conformational sampling method in MacroModel version 9.111. The resulting geometries were minimized with the Polak–Ribiere Conjugate Gradient algorithm with OPLS-2005 as a force field until convergence to a gradient of 0.05 kJ/mol. Redundant conformers were eliminated based on a rmsd cutoff of 0.5 Å, while an energy cutoff of 5 kcal/mol was applied to discard unreasonable conformations. Default values were used for all the remaining parameters. The lowest energy conformation of the four diastereoisomers 20a–d (Figure 3) was saved to perform the following quantum-mechanical calculations, which were obtained in vacuo at the Hartree–Fock SCF level by using a 6-31G* basis set. Finally, a full geometry optimization was carried out for each diastereoisomer by means of the Gaussian09 program [43].

The relative energies of the four diastereoisomers depicted in Figure 3 are reported in Table 1.

Compounds 20a and 20c showed the same level of stability and were found to be more stable than 20b (+1.49 kcal/mol) and 20d (+4.48 kcal/mol). These results were in line with the level of both diastereoselection and facial selectivity measured by HPLC analysis, confirming that the reaction occurred with trans selectivity leading to the formation of the most stable diastereoisomers. Finally, the most abundant compounds 20a and 20c were deprotected by triethylamine trihydrofluoride and triethylamine in THF at 60 °C, to give compounds 25a and 25c, which were oxidized with Jones reagent, to afford acids 26a and 26c. The final cleavage of the Boc protecting group was carried out in the presence of formic acid at room temperature, affording the target amino acid derivatives 27a and 27c (Scheme 4).

Conclusion

In conclusion, two complex bridged analogues 27a,c of glutamic acid were synthesized. Starting from D-serine, their synthesis was accomplished in 10 steps in good overall yield. After an extensive investigation on the best synthetic approach, key intermediate 20 was successfully prepared by an efficient rhodium-catalyzed cyclopropanation of a terminal double bond of compound 18 with ethyl acetate. The cyclopropanation reaction occurred with trans selectivity preferentially affording the two trans cyclopropane products. Theoretical calculations on the stability of the four possible diastereoisomers were in agreement with both literature and experimental data observed. The final constrained amino acid derivatives 27a and 27c represent useful unnatural amino acid derivatives for both peptidomimetic synthesis and as ligands of the plethora of glutamate receptors.
