Efficient synthesis of polyfunctionalized carbazoles and pyrrolo[3,4-c]carbazoles via domino Diels–Alder reaction

  1. ,
  2. ,
  3. ,
  4. and
  5. ORCID Logo
College of Chemistry and Chemical Engineering, Yangzhou University, Yangzhou 225002, China
  1. Corresponding author email
Associate Editor: B. Nay
Beilstein J. Org. Chem. 2021, 17, 2425–2432. https://doi.org/10.3762/bjoc.17.159
Received 27 Jul 2021, Accepted 06 Sep 2021, Published 16 Sep 2021
A non-peer-reviewed version of this article has been posted as a preprint https://doi.org/10.3762/bxiv.2021.53.v1
Full Research Paper
cc by logo
PDF
Album
Supp Info
Cite

Abstract

The p-TsOH-catalyzed Diels–Alder reaction of 3-(indol-3-yl)maleimides with chalcone in toluene at 60 °C afforded two diastereoisomers of tetrahydropyrrolo[3,4-c]carbazoles, which can be dehydrogenated by DDQ oxidation in acetonitrile at room temperature to give the aromatized pyrrolo[3,4-c]carbazoles in high yields. On the other hand, the one-pot reaction of 3-(indol-3-yl)-1,3-diphenylpropan-1-ones with chalcones or benzylideneacetone in acetonitrile in the presence of p-TsOH and DDQ resulted in polyfunctionalized carbazoles in satisfactory yields. The reaction mechanism included the DDQ oxidative dehydrogenation of 3-(indol-3-yl)-1,3-diphenylpropan-1-ones to the corresponding 3-vinylindoles, their acid-catalyzed Diels–Alder reaction and sequential aromatization process.

Keywords: carbazole; chalcone; Diels–Alder reaction; maleimide; pyrrolo[3,4-c]carbazole; 3-vinylindole

Introduction

Carbazole is one of the most well-known privileged nitrogen-containing heterocycles. The carbazole skeleton is widely occurring in natural alkaloids and pharmacologically active compounds representing a broad spectrum of important bioactivities such as anticancer, antituberculosis, anti-protein kinase C, antipsychotic, and antioxidative activities [1-5]. For some examples, carprofen is a nonsteroidal anti-inflammatory pharmaceutical used to treat joint pain and postoperative pain [6] (Figure 1). Ellipticine was considered to be based mainly on DNA intercalation and topoisomerase II inhibition [7]. Midostaurin and carvediol have been approved by the FDA for tumor therapy and treatment of congestive heart failure [8]. On the other hand, carbazole derivatives also have potential applications in optoelectronic materials, conducting polymers, and synthetic dyes [9-11]. Over the past decades, many efficient synthetic methodologies for functionalized carbazole derivatives have been successfully developed [12-18]. Because indoles are readily available materials, the direct extension of indoles to carbazole skeletons has a great advantage [19-27]. Therefore, the Diels–Alder reaction of activated 2-vinylindolines or 3-vinylindolines with diverse dienophiles has become the most attractive strategy for the synthesis of carbazole derivatives [28-40]. In recent years, by using the one-pot domino synthetic strategy of in situ-generated 2-vinyl- or 3-vinylindolines and sequential Diels–Alder reaction with activated dienophiles, we have successfully developed several efficient synthetic protocols for diversely functionalized tetrahydrocarbazoles and the corresponding carbazole derivatives [41-47]. To further demonstrate the synthetic application of domino Diels–Alder reactions and in continuation of our aim to providing efficient domino reactions for the synthesis of biologically important carbazole derivatives [48-53], herein we wish to report the DDQ-mediated dehydrogenative Diels–Alder reaction of 3-(indol-3-yl)maleimides and benzoyl-substituted 3-ethylindoles with readily available chalcones for the convenient synthesis of polyfunctionalized carbazole derivatives.

[1860-5397-17-159-1]

Figure 1: Representative bioactive carbazole derivatives.

Results and Discussion

According to our previously established reaction conditions for the preparation of spiro[indoline-3,5'-pyrrolo[3,4-c]carbazoles] [48], an equivalent amount of 3-(indol-3-yl)maleimide with chalcone was stirred in toluene at 60 °C for two hours in the presence of p-toluenesulfonic acid. After workup, two diastereoisomers 3a and 3b of tetrahydropyrrolo[3,4-c]carbazoles were successfully isolated in 18% and 71% yields, respectively (Scheme 1). It should be pointed out that nearly no reaction was detected in the absence of p-toluenesulfonic acid. The structures of both products were fully characterized by various spectroscopy methods and confirmed by determination of their single crystal structures (Figure 2 and Figure 3).

[1860-5397-17-159-i1]

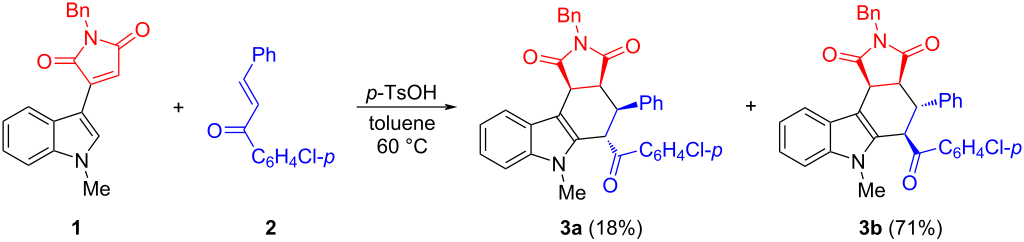

Scheme 1: Synthesis of tetrahydropyrrolo[3,4-c]carbazoles 3a and 3b.

From Figure 2, it can be seen that the phenyl group and the adjacent p-chlorobenzoyl group are trans-oriented. Additionally, the phenyl group is cis-oriented to the 1-benzylpyrrolidine-2,5-dione ring in compound 3a. On the other hand, for compound 3b (Figure 3), it can be seen that the phenyl group is trans-oriented to both, the p-chlorobenzoyl group and the 1-benzylpyrrolidine-2,5-dione ring in this compound. Thus, the isomers 3a and 3b are diastereoisomers. It is known that the starting chalcones usually have E-configuration. The phenyl group and p-chlorobenzoyl group still exist in the trans-position in both diastereoisomers 3a and 3b as in the starting chalcone. This result clearly showed that this acid-catalyzed cycloaddition reaction proceeded through a concerted Diels–Alder reaction mechanism.

[1860-5397-17-159-2]

Figure 2: Single crystal structure of the isomer 3a.

[1860-5397-17-159-3]

Figure 3: Single crystal structure of the isomer 3b.

The acid-catalyzed Diels–Alder reaction afforded a mixture of two diastereoisomers, which decreased the synthetic value of the reaction. Thus, after the first step reaction, a DDQ dehydrogenation reaction was carried out in acetonitrile at room temperature. A series of aromatized pyrrolo[3,4-c]carbazoles 4a–l were successfully synthesized by the one-pot two-step reaction and the results are summarized in Table 1. All reactions proceeded smoothly to give the corresponding pyrrolo[3,4-c]carbazoles 4a–l in satisfactory yields. Indole itself and N-methylindole could also be successfully employed in the reaction. The N–Me, N–Ph, and N–Bn substitution in the maleimide moiety showed only a marginal effect on the reaction outcome. Various chalcones with electron-donating methyl and methoxy groups and electron-withdrawing m-chloro and p-chloro substituents gave the products in good yields. However, the nitro-substituted chalcone gave the product 4h in a slightly lower yield. The structures of the pyrrolo[3,4-c]carbazoles 4a–l were established by various spectroscopy methods. Further, the single crystal structure of compound 4g was determined by X-ray diffraction (Figure 4). It can be seen that the ring of pyrrolo[3,4-c]carbazole exists in a slightly twisted plane. The dihedral angles of the phenyl and the benzoyl group to the central benzene ring are 72.018° and 88.402°.

Table 1: Synthesis of pyrrolo[3,4-c]carbazoles 4a–l.a

[Graphic 1]
entry compound R1 R2 Ar1 Ar2 yield (%)b
1 4a H Ph p-CH3C6H4 C6H5 87
2 4b CH3 CH3 p-ClC6H4 C6H5 89
3 4c CH3 CH3 C6H5 p-CH3C6H5 92
4 4d CH3 CH3 p-CH3C6H4 p-CH3C6H4 91
5 4e CH3 Ph C6H5 CH3 85
6 4f CH3 Ph C6H5 C6H5 84
7 4g CH3 Ph p-CH3C6H4 C6H5 93
8 4h CH3 Ph m-NO2C6H4 p-CH3C6H4 76
9 4i CH3 Ph p-CH3C6H4 p-CH3OC6H4 86
10 4j CH3 Ph p-CH3C6H4 m-ClC6H4 84
11 4k CH3 Bn p-CH3C6H4 C6H5 93
12 4l CH3 Bn C6H5 p-ClC6H4 87

aReaction conditions: 1) 3-(indol-3-yl)maleimide (1.0 mmol), chalcone (1.0 mmol), toluene (10.0 mL), p-TsOH (0.2 mmol), 80 °C, 2 h; 2) DDQ (1.2 mmol), CH3CN (10.0 mL), rt, 2 h. bIsolated yields.

[1860-5397-17-159-4]

Figure 4: Single crystal structure of the isomer 4g.

To further expand the scope of this domino Diels–Alder reaction, another kind of 3-vinylindoles was employed in the one-pot reaction. First, the 3-(indol-3-yl)-1,3-diphenylpropan-1-ones prepared through Friedel–Crafts alkylation of indole with chalcones, were oxidized by DDQ in acetonitrile to generate in situ the expected active diene, indole-substituted chalcones. Then, the p-TsOH-catalyzed Diels–Alder reaction of indole-chalcones with second chalcones and sequential aromatization through DDQ dehydrogenation resulted in the polyfunctionalized carbazoles 6a–l in good yields (Table 2). Additionally, the similar reaction with benzylideneacetone gave the desired carbazoles 6m and 6n albeit in significantly lower yields. Thus, this one-pot domino reaction successfully constructed carbazoles with four substituents on the benzene ring from the corresponding indole derivatives with two molecules of chalcones. It should be pointed out that the Diels–Alder reaction resulted in a complex mixture comprising four diastereoisomers of the tetrahydrocarbazoles, which was very difficult to separate. After oxidation with DDQ, the aromatized carbazole derivatives 6a–n were easily obtained as single products in good yields. The chemical structures of the carbazoles were fully characterized by 1H NMR, 13C NMR, IR, and HRMS spectra.

Table 2: Synthesis of the polysubstituted carbazoles 6a–n.a

[Graphic 2]
entry compound Ar1 Ar2 Ar3 Ar4 (R) yield (%)b
1 6a C6H5 C6H5 C6H5 C6H5 61
2 6b p-CH3C6H4 p-CH3C6H4 p-CH3C6H4 p-CH3C6H4 63
3 6c p-CH3C6H4 p-CH3C6H4 p-ClC6H4 p-CH3C6H4 68
4 6d p-CH3C6H4 p-CH3C6H4 o-CH3C6H4 p-CH3OC6H4 64
5 6e p-CH3OC6H4 p-CH3C6H4 o-CH3C6H4 p-CH3OC6H4 62
6 6f p-CH3OC6H4 p-CH3C6H4 p-CH3OC6H4 p-ClC6H4 66
7 6g p-ClC6H4 p-CH3C6H4 C6H5 C6H5 59
8 6h p-ClC6H4 p-CH3C6H4 p-ClC6H4 p-CH3C6H4 60
9 6i p-ClC6H4 p-CH3C6H4 p-NO2C6H4 p-CH3OC6H4 69
10 6j o-ClC6H4 p-CH3C6H4 p-CH3OC6H4 p-ClC6H4 63
11 6k p-CH3OC6H4 p-ClC6H4 m-ClC6H4 p-CH3C6H4 61
12 6l p-CH3OC6H4 p-ClC6H4 p-CH3OC6H4 p-ClC6H4 62
13 6m C6H5 C6H5 C6H5 CH3 31
14 6n p-ClC6H4 p-CH3C6H4 C6H5 CH3 32

aReaction conditions: 1) 3-(indol-3-yl)-1,3-diphenylpropan-1-one (0.6 mmol), chalcone (0.5 mmol), DDQ (0.72 mmol), MeCN (15.0 mL), rt, 0.5 h; 2) p-TsOH (0.06 mmol), reflux, 4 h; 3) DDQ (0.6 mmol), rt, 1 h. bIsolated yields.

To explain the formation of the products, a plausible reaction mechanism was proposed in Scheme 2 on the basis of the previously reported reaction [48,53]. Firstly, the DDQ oxidative dehydrogenation of 3-(indol-3-yl)-1,3-diphenylpropan-1-one gave the expected indole-substituted chalcone A, which comprises the desired 3-vinylindole scaffold as the reactive diene. In the meantime, the carbonyl group of the chalcone is protonated to give the activated dienophile in the presence of p-toluenesulfonic acid. Secondly, the Diels–Alder reaction of indole-chalcone A with the dienophile results in the tetrahydrocarbazole B having an exocyclic C=C bond. Thirdly, a new tetrahydrocarbazole intermediate C is formed by a 1,3-H shifting process. The resulting tetrahydrocarbazole intermediate (C) might be a mixture of several possible diastereoisomers because it has four substituents on the cyclohexenyl ring. After a further DDQ oxidation, the aromatized carbazole 6 is successfully produced as the final product.

[1860-5397-17-159-i2]

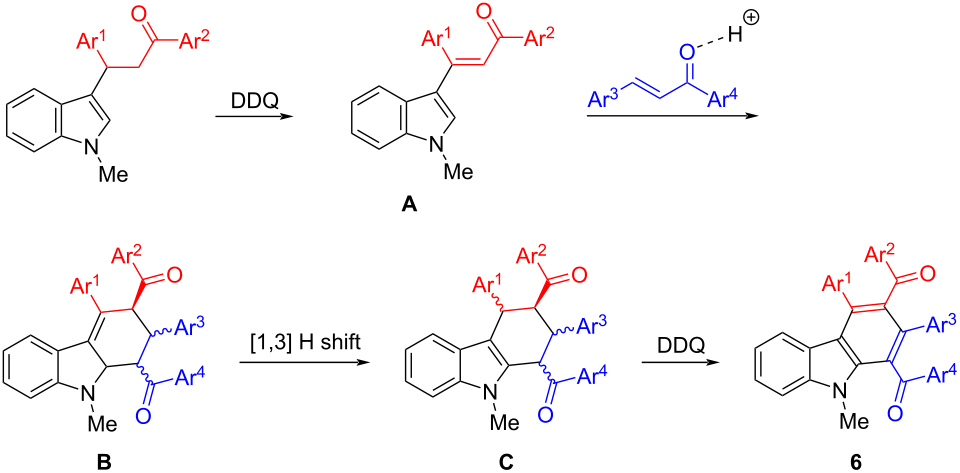

Scheme 2: Proposed domino reaction mechanism for the formation of carbazoles 6.

Conclusion

In summary, we have investigated the domino Diels–Alder reaction of 3-(indol-3-yl)maleimides and in situ-generated indole-chalcones with dienophilic chalcones. This one-pot two-step reaction successfully provided the polyfunctionalized carbazole derivatives in an extremely simple and highly efficient fashion. This protocol has the advantages of using readily available starting reagents, simple manufacture, high efficiency and atomic economy. The unusual feature of this reaction is the normal electron-demand Diels–Alder reaction between electron-deficient dienes such as (3-(indol-3-yl)maleimides and indole-chalcone to electron-deficient dienophilic chalcones. The potential applications of this reaction in organic and medicinal chemistry might be significant.

Experimental

1. General procedure for the preparation of the carbazoles 4a–l: To a round-bottomed flask was added 3-(indol-3-yl)maleimide (1.0 mmol), chalcone (1.0 mmol), p-toluenesulfonic acid (0.2 mmol), and toluene (10.0 mL). The solution was heated to 60 °C for two hours. After removing the solvent by rotatory evaporation, DDQ (1.2 mmol) and acetonitrile (10.0 mL) were added and the mixture was stirred at room temperature for two hours. After removing the solvent, the residue was subjected to column chromatography with petroleum ether and ethyl acetate 8:1 (v/v) as eluent to give the pure products for analysis.

5-Benzoyl-2-phenyl-4-(p-tolyl)pyrrolo[3,4-c]carbazole-1,3(2H,6H)-dione (4a): green solid, 440 mg, 87%; mp 234–236 °C; 1H NMR (400 MHz, CDCl3) δ 9.24 (s, 1H, ArH), 9.15 (d, J = 8.0 Hz, 1H, ArH), 7.60–7.56 (m, 1H, ArH), 7.53–7.44 (m, 7H, ArH), 7.42–7.31 (m, 3H, ArH), 7.21–7.14 (m, 4H, ArH), 6.92 (d, J = 7.6 Hz, 2H, ArH), 2.18 (s, 3H, CH3); 13C {1H} NMR (100 MHz, CDCl3) δ 198.0, 167.3, 142.9, 141.7, 138.2, 137.6, 137.2, 132.9, 131.9, 131.7, 130.7, 129.1, 129.0, 128.8, 128.2, 127.9, 127.8, 127.7, 126.7, 126.1, 125.6, 121.7, 120.7, 120.3, 119.2, 111.3, 21.1; IR (KBr) ν: 2988, 1786, 1734, 1611, 1485, 1456, 1357, 1314, 1185, 1021, 988, 786, 734 cm−1; HRMS–ESI-TOF (m/z): [M + Na]+ calcd for C34H22NaN2O3, 529.1523; found, 529.1512.

2. General procedure for the preparation of carbazoles 6a–n: To a round-bottomed flask were added 3-(indol-3-yl)-1,3-diphenylpropan-1-one (0.6 mmol), DDQ (0.72 mmol), and acetonitrile (15.0 mL). The mixture was stirred at room temperature for 30 min. Then, the chalcone (0.5 mmol) and p-toluenesulfonic acid (0.06 mmol) were added and the solution was refluxed for four hours. After cooling to room temperature, DDQ (0.6 mmol) was added and the mixture was stirred at room temperature for one hour. After removing the solvent by rotatory evaporation at reduced pressure, the residue was subjected to column chromatography with a mixture of petroleum ether, ethyl acetate and methylene dichloride 20:1:5 (v/v/v) to give the pure products for analysis.

(9-Methyl-2,4-diphenyl-9H-carbazole-1,3-diyl)bis(phenylmethanone) (6a): White solid, 165 mg, 61%; mp 249–251 °C; 1H NMR (400 MHz, CDCl3) δ 7.64 (d, J = 7.6 Hz, 3H, ArH), 7.43 (t, J = 7.8 Hz, 2H, ArH), 7.39–7.34 (m, 6H, ArH), 7.28–7.24 (m, 3H, ArH), 7.09 (t, J = 7.6 Hz, 2H, ArH), 7.01 (s, 2H, ArH), 6.96 (t, J = 7.8 Hz, 2H, ArH), 6.84 (d, J = 6.8 Hz, 4H, ArH), 3.64 (s, 3H, CH3); 13C NMR (400 MHz, CDCl3) δ 198.5, 198.4, 142.4, 138.9, 138.7, 137.6, 137.5, 136.8, 135.9, 135.2, 133.3, 132.2, 131.5, 131.4, 129.5, 129.2, 128.3, 128.2, 127.8, 127.6, 127.0, 126.9, 126.4, 122.4, 122.0, 121.8, 121.6, 119.6, 108.7, 32.1; IR (KBr) ν: 3057, 3023, 2907, 2360, 2339, 1720, 1605, 1482, 1320, 1267, 1172, 1009, 936, 805, 743, 612, 447 cm−1; HRMS–ESI (m/z): [M + Na]+ calcd for C39H27NO2, 564.1934; found, 564.1926.

The crystallographic data of the compounds 3a (CCDC 2099074), 3b (CCDC 2099075), and 4g (CCDC 2099076) have been deposited at the Cambridge Crystallographic Database Centre (http://www.ccdc.cam.ac.uk).

Supporting Information

Supporting Information File 1: Characterization data and 1H NMR, 13C NMR, and HRMS spectra of the synthesized compounds.
Format: PDF Size: 4.3 MB Download

Funding

This work was financially supported by the National Natural Science Foundation of China (Nos. 21572196, 21871227) and the Priority Academic Program Development of Jiangsu Higher Education Institutions (No. BK2013016).

References

  1. Thevissen, K.; Marchand, A.; Chaltin, P.; Meert, E. M. K.; Cammue, B. P. A. Curr. Med. Chem. 2009, 16, 2205–2211. doi:10.2174/092986709788612701
    Return to citation in text: [1]
  2. Dhara, K.; Mandal, T.; Das, J.; Dash, J. Angew. Chem., Int. Ed. 2015, 54, 15831–15835. doi:10.1002/anie.201508746
    Return to citation in text: [1]
  3. He, W.; Wang, P.; Chen, J.; Xie, W. Org. Biomol. Chem. 2020, 18, 1046–1056. doi:10.1039/c9ob02627d
    Return to citation in text: [1]
  4. Hesse, R.; Kataeva, O.; Schmidt, A. W.; Knölker, H.-J. Chem. – Eur. J. 2014, 20, 9504–9509. doi:10.1002/chem.201403645
    Return to citation in text: [1]
  5. Shaikh, M.; Karpoormath, R.; Thapliyal, N.; Rane, R.; Palkar, M.; Faya, A. M.; Patel, H.; Alwan, W.; Jain, K.; Hampannavar, G. Anti-Cancer Agents Med. Chem. 2015, 15, 1049–1065. doi:10.2174/1871520615666150113105405
    Return to citation in text: [1]
  6. Favia, A. D.; Habrant, D.; Scarpelli, R.; Migliore, M.; Albani, C.; Bertozzi, S. M.; Dionisi, M.; Tarozzo, G.; Piomelli, D.; Cavalli, A.; De Vivo, M. J. Med. Chem. 2012, 55, 8807–8826. doi:10.1021/jm3011146
    Return to citation in text: [1]
  7. Deng, C.; Liu, Y.; Xu, M.; Xie, K.; Liu, S. Org. Biomol. Chem. 2021, 19, 1395–1403. doi:10.1039/d0ob02527e
    Return to citation in text: [1]
  8. Caruso, A.; Sinicropi, M. S.; Lancelot, J.-C.; El-Kashef, H.; Saturnino, C.; Aubert, G.; Ballandonne, C.; Lesnard, A.; Cresteil, T.; Dallemagne, P.; Rault, S. Bioorg. Med. Chem. Lett. 2014, 24, 467–472. doi:10.1016/j.bmcl.2013.12.047
    Return to citation in text: [1]
  9. Wang, C.; Dong, H.; Hu, W.; Liu, Y.; Zhu, D. Chem. Rev. 2012, 112, 2208–2267. doi:10.1021/cr100380z
    Return to citation in text: [1]
  10. Bryden, M. A.; Zysman-Colman, E. Chem. Soc. Rev. 2021, 50, 7587–7680. doi:10.1039/d1cs00198a
    Return to citation in text: [1]
  11. Cha, M. S.; Park, J. E.; Kim, S.; Han, S.-H.; Shin, S.-H.; Yang, S. H.; Kim, T.-H.; Yu, D. M.; So, S.; Hong, Y. T.; Yoon, S. J.; Oh, S.-G.; Kang, S. Y.; Kim, O.-H.; Park, H. S.; Bae, B.; Sung, Y.-E.; Cho, Y.-H.; Lee, J. Y. Energy Environ. Sci. 2020, 13, 3633–3645. doi:10.1039/d0ee01842b
    Return to citation in text: [1]
  12. Knölker, H.-J.; Reddy, K. R. Chem. Rev. 2002, 102, 4303–4428. doi:10.1021/cr020059j
    Return to citation in text: [1]
  13. Schmidt, A. W.; Reddy, K. R.; Knölker, H.-J. Chem. Rev. 2012, 112, 3193–3328. doi:10.1021/cr200447s
    Return to citation in text: [1]
  14. Lancianesi, S.; Palmieri, A.; Petrini, M. Chem. Rev. 2014, 114, 7108–7149. doi:10.1021/cr400676v
    Return to citation in text: [1]
  15. Liu, D.; Huang, J.; Fu, Z.; Huang, W. Green Chem. 2019, 21, 968–972. doi:10.1039/c9gc00064j
    Return to citation in text: [1]
  16. Faltracco, M.; Ortega-Rosales, S.; Janssen, E.; Cioc, R. C.; Vande Velde, C. M. L.; Ruijter, E. Org. Lett. 2021, 23, 3100–3104. doi:10.1021/acs.orglett.1c00785
    Return to citation in text: [1]
  17. Wu, C.-J.; Cao, W.-X.; Chen, B.; Tung, C.-H.; Wu, L.-Z. Org. Lett. 2021, 23, 2135–2139. doi:10.1021/acs.orglett.1c00290
    Return to citation in text: [1]
  18. Jiang, Z.; Zhou, J.; Zhu, H.; Liu, H.; Zhou, Y. Org. Lett. 2021, 23, 4406–4410. doi:10.1021/acs.orglett.1c01341
    Return to citation in text: [1]
  19. Aggarwal, T.; Sushmita, S.; Verma, A. K. Org. Biomol. Chem. 2019, 17, 8330–8342. doi:10.1039/c9ob01381d
    Return to citation in text: [1]
  20. Chaudhari, T. Y.; Tandon, V. Org. Biomol. Chem. 2021, 19, 1926–1939. doi:10.1039/d0ob02274h
    Return to citation in text: [1]
  21. Sheng, F.-T.; Wang, J.-Y.; Tan, W.; Zhang, Y.-C.; Shi, F. Org. Chem. Front. 2020, 7, 3967–3998. doi:10.1039/d0qo01124j
    Return to citation in text: [1]
  22. Wang, J.-Y.; Sun, M.; Yu, X.-Y.; Zhang, Y.-C.; Tan, W.; Shi, F. Chin. J. Chem. 2021, 39, 2163–2171. doi:10.1002/cjoc.202100214
    Return to citation in text: [1]
  23. Sheng, F.-T.; Li, Z.-M.; Zhang, Y.-Z.; Sun, L.-X.; Zhang, Y.-C.; Tan, W.; Shi, F. Chin. J. Chem. 2020, 38, 583–589. doi:10.1002/cjoc.202000022
    Return to citation in text: [1]
  24. Liu, L.; Zhang, J. L. Chin. J. Org. Chem. 2019, 39, 3308–3309. doi:10.6023/cjoc201900004
    Return to citation in text: [1]
  25. Tan, B. Chin. J. Org. Chem. 2020, 40, 1404–1405. doi:10.6023/cjoc202000027
    Return to citation in text: [1]
  26. Mao, Y.; Lu, Y.; Li, T.; Wu, Q.; Tan, W.; Shi, F. Chin. J. Org. Chem. 2020, 40, 3895–3907. doi:10.6023/cjoc202005096
    Return to citation in text: [1]
  27. Jiang, M.; Zhou, T.; Shi, B. Chin. J. Org. Chem. 2020, 40, 4364–4366. doi:10.6023/cjoc202000083
    Return to citation in text: [1]
  28. Neto, J. S. S.; Zeni, G. Org. Chem. Front. 2020, 7, 155–210. doi:10.1039/c9qo01315f
    Return to citation in text: [1]
  29. Tu, M.-S.; Chen, K.-W.; Wu, P.; Zhang, Y.-C.; Liu, X.-Q.; Shi, F. Org. Chem. Front. 2021, 8, 2643–2672. doi:10.1039/d0qo01643h
    Return to citation in text: [1]
  30. Guan, X.-K.; Zhang, H.; Gao, J.-G.; Sun, D.-Y.; Qin, X.-S.; Jiang, G.-F.; Zhang, G.-L.; Zhang, S. J. Org. Chem. 2019, 84, 12562–12572. doi:10.1021/acs.joc.9b02024
    Return to citation in text: [1]
  31. Pirovano, V.; Brambilla, E.; Moretti, A.; Rizzato, S.; Abbiati, G.; Nava, D.; Rossi, E. J. Org. Chem. 2020, 85, 3265–3276. doi:10.1021/acs.joc.9b03117
    Return to citation in text: [1]
  32. Wang, T.; Hoye, T. R. J. Am. Chem. Soc. 2016, 138, 13870–13873. doi:10.1021/jacs.6b09628
    Return to citation in text: [1]
  33. Sha, F.; Tao, Y.; Tang, C.-Y.; Zhang, F.; Wu, X.-Y. J. Org. Chem. 2015, 80, 8122–8133. doi:10.1021/acs.joc.5b01223
    Return to citation in text: [1]
  34. Dai, W.; Jiang, X.-L.; Tao, J.-Y.; Shi, F. J. Org. Chem. 2016, 81, 185–192. doi:10.1021/acs.joc.5b02476
    Return to citation in text: [1]
  35. Chen, S.; Li, Y.; Ni, P.; Huang, H.; Deng, G.-J. Org. Lett. 2016, 18, 5384–5387. doi:10.1021/acs.orglett.6b02762
    Return to citation in text: [1]
  36. Ozaki, K.; Zhang, H.; Ito, H.; Lei, A.; Itami, K. Chem. Sci. 2013, 4, 3416–3420. doi:10.1039/c3sc51447a
    Return to citation in text: [1]
  37. Zheng, X.; Lv, L.; Lu, S.; Wang, W.; Li, Z. Org. Lett. 2014, 16, 5156–5159. doi:10.1021/ol5025053
    Return to citation in text: [1]
  38. Chen, S.; Li, Y.; Ni, P.; Yang, B.; Huang, H.; Deng, G.-J. J. Org. Chem. 2017, 82, 2935–2942. doi:10.1021/acs.joc.6b02892
    Return to citation in text: [1]
  39. Lu, C.; Huang, H.; Tuo, X.; Jiang, P.; Zhang, F.; Deng, G.-J. Org. Chem. Front. 2019, 6, 2738–2743. doi:10.1039/c9qo00603f
    Return to citation in text: [1]
  40. Ni, P.; Tan, J.; Zhao, W.; Huang, H.; Xiao, F.; Deng, G.-J. Org. Lett. 2019, 21, 3687–3691. doi:10.1021/acs.orglett.9b01138
    Return to citation in text: [1]
  41. Yang, R.-Y.; Sun, J.; Tao, Y.; Sun, Q.; Yan, C.-G. J. Org. Chem. 2017, 82, 13277–13287. doi:10.1021/acs.joc.7b02397
    Return to citation in text: [1]
  42. Yang, R.-Y.; Sun, J.; Sun, Q.; Yan, C.-G. J. Org. Chem. 2018, 83, 5909–5919. doi:10.1021/acs.joc.8b00196
    Return to citation in text: [1]
  43. Wang, D.-Q.; Sun, J.; Yan, C.-G. ChemistrySelect 2019, 4, 10550–10554. doi:10.1002/slct.201902407
    Return to citation in text: [1]
  44. Sun, J.; Yang, R.-Y.; Zhan, S.-C.; Yan, C.-G. ChemistrySelect 2019, 4, 10100–10103. doi:10.1002/slct.201902619
    Return to citation in text: [1]
  45. Ye, R.; Yan, C.-G. Eur. J. Org. Chem. 2019, 5882–5886. doi:10.1002/ejoc.201900955
    Return to citation in text: [1]
  46. Zhan, S.-C.; Sun, J.; Liu, R.-Z.; Yan, C.-G. Org. Biomol. Chem. 2020, 18, 163–168. doi:10.1039/c9ob02013f
    Return to citation in text: [1]
  47. Wang, D.; Sun, J.; Liu, R.-Z.; Wang, Y.; Yan, C.-G. J. Org. Chem. 2021, 86, 5616–5629. doi:10.1021/acs.joc.1c00103
    Return to citation in text: [1]
  48. Yan, C.; Sun, J.; Yan, C.-G. Chin. Chem. Lett. 2021, 32, 1253–1256. doi:10.1016/j.cclet.2020.08.052
    Return to citation in text: [1] [2] [3]
  49. Zhan, S.-C.; Fang, R.-J.; Sun, J.; Yan, C.-G. J. Org. Chem. 2021, 86, 8726–8741. doi:10.1021/acs.joc.1c00538
    Return to citation in text: [1]
  50. Ye, R.; Sun, J.; Han, Y.; Yan, C.-G. New J. Chem. 2021, 45, 5075–5080. doi:10.1039/d0nj06036d
    Return to citation in text: [1]
  51. Yan, C.; Sun, J.; Han, Y.; Yan, C.-G. J. Org. Chem. 2021, 86, 9263–9279. doi:10.1021/acs.joc.1c00044
    Return to citation in text: [1]
  52. Zhan, S.-C.; Fang, R.-J.; Sun, J.; Yan, C.-G. Org. Biomol. Chem. 2021, 19, 6322–6327. doi:10.1039/d1ob01113h
    Return to citation in text: [1]
  53. Zhan, S.-C.; Fang, R.-J.; Yang, R.-Y.; Zhao, R.-F.; Wang, Y.; Sun, J.; Yan, C.-G. New J. Chem. 2021, 45, 15423–15428. doi:10.1039/d1nj02836g
    Return to citation in text: [1] [2]
