A simple and efficient dual optical signaling chemodosimeter for toxic Hg(II)

  1. ,
  2. ,
  3. and
Department of Chemistry, University of Mumbai, Vidyanagari, Mumbai-400098, India
  1. Corresponding author email
Associate Editor: J. A. Murphy
Beilstein J. Org. Chem. 2012, 8, 1352–1357. https://doi.org/10.3762/bjoc.8.155
Received 07 May 2012, Accepted 20 Jul 2012, Published 22 Aug 2012
Full Research Paper
cc by logo
PDF
Album
Supp Info
Cite

Abstract

10-Methylthioacridone, designated as acrithion, has been employed as an easily accessible chemodosimeter for the optical targeting of toxic Hg2+ in buffered aqueous DMSO. The Hg2+-mediated desulfurization of the probe is translated into selective dual signaling of Hg2+ by means of color bleaching and fluorescence amplification while several other metal ions, including potentially competing Ag+, Cu2+ and Pb2+, afford no significant interferences even in excess concentrations.

Keywords: chemidosimeter; chemosensor; fluorescence; Hg(II) selective; UV–visible; visual detection

Introduction

Interest continues unabatedly to design optical probes for the selective detection of metal ions of importance across disciplines of biology, medicine and environment [1-5]. Though, mercury and alkylmercury are highly poisonous, mercury ions are also a subject of worldwide concern because of their acute immune-, geno- and neurotoxic effects on human, livestock and marine mammals [6-11]. The poisonous effects of mercury ions stem from their irreversible binding with the sulfhydryl-containing groups of proteins and enzymes, resulting in clinical problems such as prenatal brain damage, muscle coordination difficulties, lung, kidney and vision disorders.

To date, many chemosensors featuring assortments of ligands and signalling units have been reported for the detection of potentially toxic metal ions such as Cu2+, Hg2+, Pb2+ etc. However, owing to the reversible coordination with the probes, these paramagnetic metal ions often result in less desirable fluorescence quenching effects [12-16]. Lately, the chemodosimeter-based sensing has gained increasing popularity on account of the irreversible chemical intervention of analytes with the probe molecules. Since the metal ions are disengaged from the chemically modified dosimeters, the process results in the more reliable fluorescence ratiometric or switch-on responses even for the paramagnetic metal ions [17-19]. The first luminescence chemodosimeter for Hg2+ was developed by Czarnik et al. and was based on the Hg2+-mediated desulfurization of anthracene-thioamide chromophore [20,21]. Following this pioneering report, several other groups have utilized the exceptionally strong thiophilicity of Hg2+ to access a range of luminescent Hg2+ chemodosimeters [22-38]. Despite impressive advances [39,40], many known Hg2+ chemosensors suffer from multistep syntheses and delayed responses or cross affinities, especially from Ag+, Pb2+ and Cu2+ [41-51]. Consequently, designing easily accessible Hg2+-selective chemosensors with dual colorimetric and fluorescence switch-on capabilities is deemed of interest in supramolecular research.

Acridone, a photostable fluorophore [52], has been designed to function as metal ion and anion sensor [53-57]. In contrast to moderately fluorescent acridone, its thione analog is poorly emissive presumably on account of the intersystem crossing process of the C=S bonding [58]. Keeping this in mind, we have presently conceived the design of simple and easily accessible 10-methylthioacridone – designated as acrithion 2 – as a new chemodosimeter for the highly selective colorimetric and fluorescence signaling of Hg2+.

The chemodosimeter mechanism, illustrated in Scheme 1, is proposed to proceed via chelation of Hg2+ with the thione group of acrithion 2, forming an intermediate thioacridinium–Hg+ complex. This phenomena would polarize the C=S bond and therefore facilitate nucleophilic attack by water at the electrophilic C9 position. Subsequently, the hydrolytic desulfurization is expected to form compound 1 – which is more fluorescent – at the expense of poorly emitting acrithion 2. In addition to the fluorescence amplification, the difference in the absorbance wavelengths between acrithion 2 and the desulfurization product 1 would also afford colorimetric naked-eye signaling of Hg2+.

[1860-5397-8-155-i1]

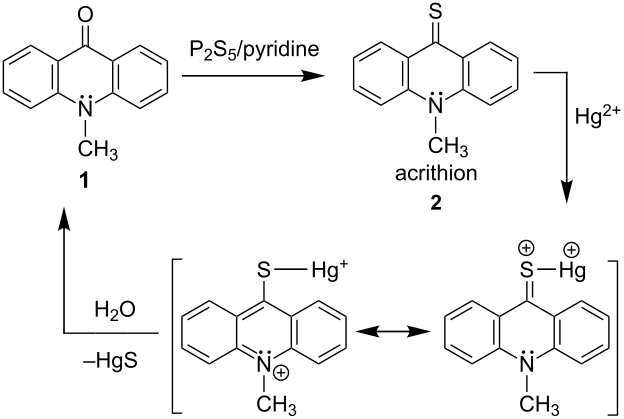

Scheme 1: Synthesis of acrithion 2 and its chemodosimeter mechanism for Hg2+ recognition.

Results and Discussion

Acrithion 2 is synthesized in good yield by treatment of readily available 10-methyl acridone 1 with P2S5 in pyridine [59] (Supporting Information File 1). The optical sensitivities of acrithion 2 towards various biologically and environmentally important metal ions as their perchlorates were evaluated on the basis of UV–vis as well as fluorescence spectral responses. Acrithion 2 (2.83 × 10−5 M) displayed absorption bands at 493, 462 and 293 nm in DMSO–H2O (70:30 v/v) at pH 7.4 (10 mM HEPES buffer). As shown in Figure 1, the spectrophotometric titration of acrithion 2 (2.83 × 10−5 M) with increasing Hg2+ induced a new blue-shifted maximum at 404 nm, while the probe’s maxima at 493 and 462 nm gradually diminished and disappeared at the limiting 2.83 × 10−4 M of Hg2+. At the limiting concentration of Hg2+, the final UV–vis spectrum was essentially similar to that of 1 [60], an observation that supports the Hg2+-induced desulfurization of the probe [60]. An independent confirmation of 1 was also obtained from the 13C NMR spectrum of the product isolated from the reaction of acrithion 2 with Hg(ClO4)2 in aqueous DMSO (Supporting Information File 1).

[1860-5397-8-155-1]

Figure 1: Spectrophotometric titration of acrithion 2 (2.83 × 10−5 M) with Hg2+ (0–2.83 × 10−4 M) in DMSO–H2O (70:30 v/v) at pH 7.4.

As depicted in Figure 2, no detectable changes in the absorbance profile of acrithion 2 could be seen up on adding 2.83 × 10−3 M of Li+, Na+, K+, Mg2+, Ca2+, Ba2+, Co2+, Ni2+, Cu2+, Zn2+, Cd2+, and Pb2+ even after 20 min, implying the absence of substantive ground state interaction. On the other hand, the exposure of the probe to Ag+ at 2.83 × 10−3 M led to partial reductions of the probe’s maxima at 493 and 462 nm, accompanied by the appearance of a new, weakly absorbing band at 347 nm. However, unlike Hg2+, the desulfurization product 1 could not be detected with Ag+. Though it has not been investigated in detail, the findings mentioned above imply that the interaction of Ag+ is not only relatively weaker, but also of a different nature than observed with Hg2+. The addition of Hg2+ turned the deep yellow solution of acrithion 2 into a colorless one, permitting ready naked-eye detection of this ion. While weakly interacting Ag+ induced only a slight dilution of the yellow color, no perceptible color modulations were noticeable with the several background metal ions which were examined (Supporting Information File 1).

[1860-5397-8-155-2]

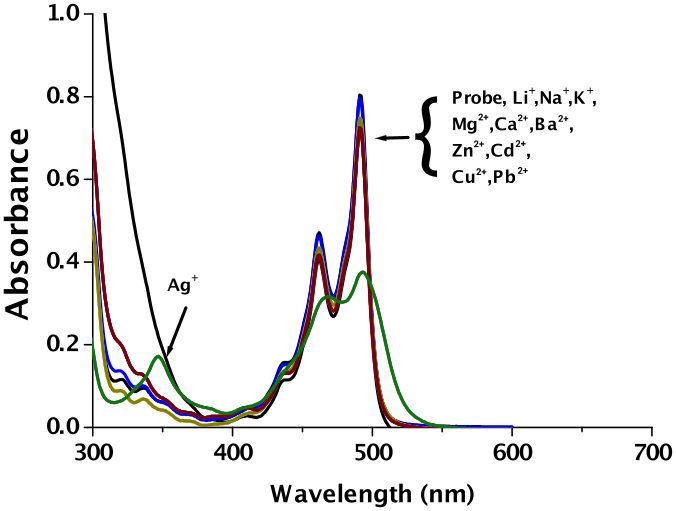

Figure 2: Spectrophotometric investigation of acrithion 2 (2.83 × 10−5 M) with metal ions (2.83 × 10−3 M) in DMSO–H2O (70:30 v/v) at pH 7.4.

Excitation of acrithion 2 at 404 nm in DMSO–H2O (70:30 v/v) at pH 7.4 gave rise to a weak emission band at 424 nm with a quantum yield (ФF) of 0.021, calculated with respect to anthracene (ФF = 0.27) [61]. Fluorimetric titration (Figure 3) revealed linear enhancements in the emission intensity with a significant 17-fold enhancement observed at a limiting 5.1 × 10−5 M of Hg2+ [60]. Based on the linear response observed in emission intensity with respect to increasing Hg2+ concentration, we calculated the limit of detection (LOD) of Hg2+ to be 1.06 × 10−8 mol L−1 or 2.12 μg L−1 of Hg2+ (Supporting Information File 1). Though, this LOD level of the probe is unsuitable to measure 1 μg L−1 of Hg2+ – the lowest permission quantity in drinking water – however, there might be potential for measuring micromolar concentrations of Hg2+ in environmental samples with the probe.

[1860-5397-8-155-3]

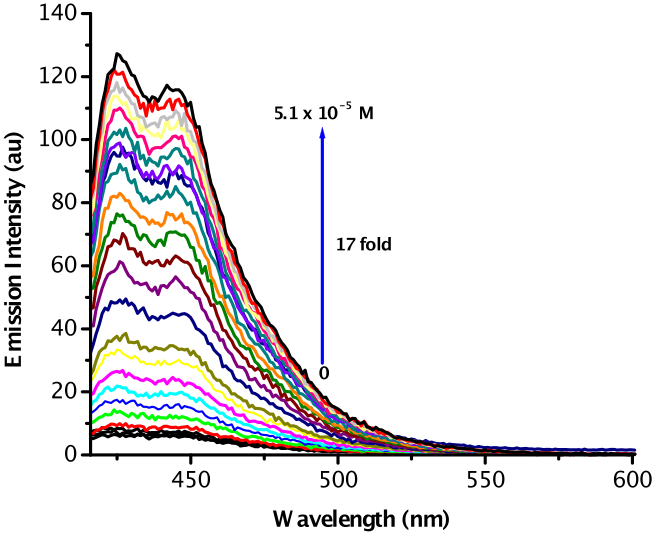

Figure 3: Fluorimetric titration of acrithion 2 (2.5 × 10−6 M) with Hg2+ (0–5.1 × 10−5 M) in DMSO–H2O (70:30 v/v) at pH 7.4.

In contrast to the sizeable fluorescence amplification observed with Hg2+, the weakly interacting Ag+ induced only less marked emission enhancement of only 3-fold at a concentration which was nearly 10 times the limiting concentration of Hg2+ (Supporting Information File 1). Consistent with their lack of ground state interaction, metal ions viz. Li+, Na+, K+, Mg2+, Ca2+, Ba2+, Co2+, Ni2+, Cu2+, Zn2+, Cd2+, and Pb2+ up to 100 equiv did not reveal any significant fluorescence modulations (Supporting Information File 1).

As shown in Figure 4, the addition of Hg2+ to a solution of acrithion 2 generated a brilliant blue fluorescence whereas other metal ions showed no detectable fluorescence responses. To verify the high selectivity of Hg2+ over other metal ions, we first measured the fluorescence response of the probe (2.5 × 10−6 M) in the presence of a matrix consisting of 100 equiv of each Li+, Na+, K+, Mg2+, Ca2+, Ba2+, Co2+, Ni2+, Cu2+, Zn2+, Cd2+, Ag+ and Pb2+. The matrix gave rise to about 3-fold fluorescence enhancement compared to that of the free probe. The addition of Hg2+ (5.1 × 10−5 M) to the matrix solution described above caused ca. 15-fold fluorescence enhancement, a value comparable to that induced by Hg2+ alone at the same concentration. This experiment (Figure 5) clearly demonstrates the superior chemodosimeter action of hazardous mercury ions in samples containing several background metal ions.

[1860-5397-8-155-4]

Figure 4: Changes in fluorescence of acrithion 2 upon addition of metal ions in DMSO–H2O (70:30 v/v) at pH 7.4.

[1860-5397-8-155-5]

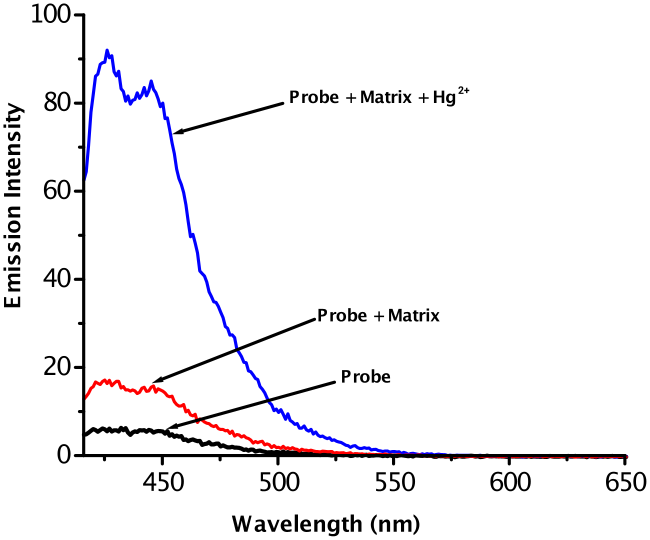

Figure 5: Emission spectra of acrithion 2 (2.5 ×10−6 M), acrithion 2 + matrix consisting of 2.5 × 10−4 M each of Li+, Na+, K+, Mg2+, Ca2+, Ba2+, Co2+, Ni2+, Cu2+, Zn2+, Cd2+, Ag+ and Pb2+ and acrithion 2 + matrix + Hg+2 (5.1 × 10−5 M).

In addition to the matrix experiment described above, we studied the effects of individual interferents on the fluorescence response of mercury ions. Therefore, the fluorescence spectra of the probe in the presence of individual metal ions (2.5 × 10−4 M each) without and with added merucury ions at 5.1 × 10−5 M were recorded. As shown in Figure 6, the background metal ions exhibited either none or insignificant perturbations on the selective fluorescence response observed upon adding mercury ions.

[1860-5397-8-155-6]

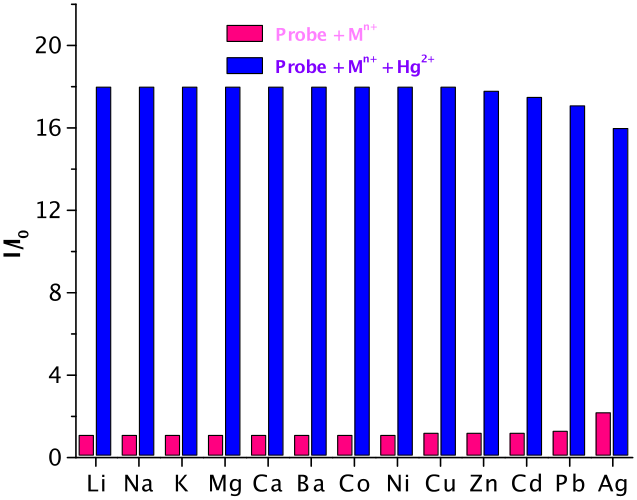

Figure 6: Fluorimetric response of acrithion 2 (2.5 × 10−6 M) in the presence of background metal ions (2.5 × 10−4 M each) in red and after addition of Hg2+ (5.1 × 10−5 M) in blue.

Next, to evaluate the response time, we plotted a time-dependent evolution of fluorescence with respect to the limiting concentration of Hg2+ at 20 °C. As shown in Figure 7, a substantial gain in the emission intensity (ca. 75 % of the total enhancement) is recorded under 20 min of contact time. Thereafter, the fluorescence enhancement occurs relatively slowly, reaching an optimum value within ca. 30 min and then remaining steady beyond this point. The response time of acrithion 2 is comparable to many known Hg2+ chemodosimeters, however, this delayed time for Hg2+ signaling may limit its practical applications.

[1860-5397-8-155-7]

Figure 7: Time course plot of the change in emission intensity of acrithion 2.

Conclusion

In conclusion, 10-methylthioacridone constitutes one of the simplest and most easily accessible chemodosimeters affording dual colorimetric and fluorescence switch-on responses for the selective and sensitive targeting of toxic Hg2+. Other merits of the chemodosimeter include visible-light excitation and absence of significant interferences, especially from the competing Ag+, Cu2+ and Pb2+, the features which may prove conducive to Hg2+-sensing applications in certain circumstances.

Supporting Information

Supporting Information File 1: Synthesis of acrithion 2, IR, 1H NMR, and 13C NMR data, experimental confirmation of 10-methylacridone, naked-eye detection and the determination of the limit of detection.
Format: PDF Size: 213.0 KB Download

References

  1. Valeur, B. Molecular Fluorescence: Principles and Applications; Wiley-VCH: Weinheim, Germany, 2002.
    Return to citation in text: [1]
  2. Czarnik, A. W. Fluorescent Chemosensors for Ion and Molecule Recognition; American Chemical Society: Washington, DC, 1992. doi:10.1021/bk-1993-0538
    Return to citation in text: [1]
  3. Desvergne, J. P.; Czarnik, A. W. Chemosensors for Ion and Molecule Recognition; NATO Asi Series, Series C; Kluwer Academic Publishers: London, 1997.
    Return to citation in text: [1]
  4. Suksai, C.; Tuntulani, T. Chem. Soc. Rev. 2003, 32, 192. doi:10.1039/b209598j
    Return to citation in text: [1]
  5. De Silva, A. P.; Gunaratne, H. Q. N.; Gunnlaugsson, T.; Huxley, A. J. M.; McCoy, C. P.; Rademacher, J. T.; Rice, T. E. Chem. Rev. 1997, 97, 1515. doi:10.1021/cr960386p
    Return to citation in text: [1]
  6. McKeown-Eyssen, G. E.; Ruedy, J.; Neims, A. A. J. Epidemiol. 1983, 118, 470.
    Return to citation in text: [1]
  7. Davidson, P. W.; Myers, G. J.; Cox, C.; Shamlaye, C. F.; Marsh, D. O.; Tanner, M. A.; Berlin, M.; Sloane-Reeves, J.; Cernichiari, E.; Choisy, O.; Choi, A.; Clarkson, T. W. Neurotoxicology 1995, 16, 677.
    Return to citation in text: [1]
  8. Grandjean, P.; Weihe, P.; White, R. F.; Debes, F. Environ. Res. 1998, 77, 165. doi:10.1006/enrs.1997.3804
    Return to citation in text: [1]
  9. Clarkson, T. W.; Magos, L.; Myers, G. J. N. Engl. J. Med. 2003, 349, 1731. doi:10.1056/NEJMra022471
    Return to citation in text: [1]
  10. von Burg, R. J. Appl. Toxicol. 1995, 15, 483. doi:10.1002/jat.2550150610
    Return to citation in text: [1]
  11. Harada, M. Crit. Rev. Toxicol. 1995, 25, 1. doi:10.3109/10408449509089885
    Return to citation in text: [1]
  12. Marzouk, S. A. M.; AI-Ariqui, W. T.; Hassan, S. S. M. Anal. Bioanal. Chem. 2003, 375, 1186.
    Return to citation in text: [1]
  13. Grandini, P.; Mancin, F.; Tecilla, P.; Scrimin, P.; Tonellato, U. Angew. Chem., Int. Ed. 1999, 38, 3061. doi:10.1002/(SICI)1521-3773(19991018)38:20<3061::AID-ANIE3061>3.0.CO;2-A
    Return to citation in text: [1]
  14. Krämer, R. Angew. Chem., Int. Ed. 1998, 37, 772. doi:10.1002/(SICI)1521-3773(19980403)37:6<772::AID-ANIE772>3.0.CO;2-Z
    Return to citation in text: [1]
  15. Zeng, H.-H.; Thompson, R. B.; Maliwal, B. P.; Fones, G. R.; Moffett, J. W.; Fierke, C. A. Anal. Chem. 2003, 75, 6807. doi:10.1021/ac0345401
    Return to citation in text: [1]
  16. Zhao, Y.; Zhong, Z. J. Am. Chem. Soc. 2006, 128, 9988. doi:10.1021/ja062001i
    Return to citation in text: [1]
  17. Quang, D. T.; Kim, J. S. Chem. Rev. 2010, 110, 6280. doi:10.1021/cr100154p
    Return to citation in text: [1]
  18. Nuriman; Kuswandi, B.; Verboom, W. Anal. Chim. Acta 2009, 655, 75. doi:10.1016/j.aca.2009.09.045
    Return to citation in text: [1]
  19. Kawakami, J.; Ohtake, R.; Miyamoto, R.; Nagaki, M.; Ito, S. Trans. Mater. Res. Soc. Jpn. 2008, 33, 9.
    Return to citation in text: [1]
  20. Chae, M. Y.; Czarnik, A. W. J. Am. Chem. Soc. 1992, 114, 9704. doi:10.1021/ja00050a085
    Return to citation in text: [1]
  21. Dujols, V.; Ford, F.; Czarnik, A. W. J. Am. Chem. Soc. 1997, 119, 7386. doi:10.1021/ja971221g
    Return to citation in text: [1]
  22. Song, K. C.; Kim, J. S.; Park, S. M.; Chung, K.-C.; Ahn, S.; Chang, S.-K. Org. Lett. 2006, 8, 3413. doi:10.1021/ol060788b
    Return to citation in text: [1]
  23. Choi, M. G.; Kim, Y. H.; Namgoong, J. E.; Chang, S.-K. Chem. Commun. 2009, 3560. doi:10.1039/b905612b
    Return to citation in text: [1]
  24. Namgoong, J. E.; Jeon, H. L.; Kim, Y. H.; Choi, M. G.; Chang, S.-K. Tetrahedron Lett. 2010, 51, 167. doi:10.1016/j.tetlet.2009.10.111
    Return to citation in text: [1]
  25. Du, J.; Fan, J.; Peng, X.; Sun, P.; Wang, J.; Li, H.; Sun, S. Org. Lett. 2010, 12, 476. doi:10.1021/ol902590g
    Return to citation in text: [1]
  26. Yang, Y.-K.; Yook, K.-J.; Tae, J. J. Am. Chem. Soc. 2005, 127, 16760. doi:10.1021/ja054855t
    Return to citation in text: [1]
  27. Yang, X.-F.; Li, Y.; Bai, Q. Anal. Chim. Acta 2007, 584, 95. doi:10.1016/j.aca.2006.11.015
    Return to citation in text: [1]
  28. Wu, J.-S.; Hwang, I.-C.; Kim, K. S.; Kim, J. S. Org. Lett. 2007, 9, 907. doi:10.1021/ol070109c
    Return to citation in text: [1]
  29. Shi, W.; Ma, H. Chem. Commun. 2008, 1856. doi:10.1039/B717718F
    Return to citation in text: [1]
  30. Chen, X.; Nam, S.-W.; Jou, M. J.; Kim, Y.; Kim, S.-J.; Park, S.; Yoon, J. Org. Lett. 2008, 10, 5235. doi:10.1021/ol8022598
    Return to citation in text: [1]
  31. Liu, B.; Tian, H. Chem. Commun. 2005, 3156. doi:10.1039/B501913C
    Return to citation in text: [1]
  32. Lee, M. H.; Cho, B.-K.; Yoon, J.; Kim, J.-S. Org. Lett. 2007, 9, 4515. doi:10.1021/ol7020115
    Return to citation in text: [1]
  33. Lu, Z.-J.; Wang, P.-N.; Zhang, Y.; Chen, J.-Y.; Zhen, S.; Leng, B.; Tian, H. Anal. Chim. Acta 2007, 597, 306. doi:10.1016/j.aca.2007.06.057
    Return to citation in text: [1]
  34. Lee, M. H.; Lee, S. W.; Kim, S. H.; Kang, C.; Kim, J. S. Org. Lett. 2009, 11, 2101. doi:10.1021/ol900542y
    Return to citation in text: [1]
  35. Choi, M. G.; Ryu, D. H.; Jeon, H. L.; Cha, S.; Cho, J.; Joo, H. H.; Hong, K. S.; Lee, C.; Ahn, S.; Chang, S.-K. Org. Lett. 2008, 10, 3717. doi:10.1021/ol8013446
    Return to citation in text: [1]
  36. Song, F.; Watanabe, S.; Floreancig, P. E.; Koide, K. J. Am. Chem. Soc. 2008, 130, 16460. doi:10.1021/ja805678r
    Return to citation in text: [1]
  37. Sakamoto, H.; Ishikawa, J.; Nakao, S.; Wada, H. Chem. Commun. 2000, 2395. doi:10.1039/b007577i
    Return to citation in text: [1]
  38. Shiraishi, Y.; Maehara, H.; Ishizumi, K.; Hirai, T. Org. Lett. 2007, 9, 3125. doi:10.1021/ol0713133
    Return to citation in text: [1]
  39. Jung, Y.; Lippard, S. J. Chem. Rev. 2007, 107, 1387. doi:10.1021/cr068207j
    Return to citation in text: [1]
  40. Zhang, J. F.; Kim, J. S. Anal. Sci. 2009, 25, 1271. doi:10.2116/analsci.25.1271
    Return to citation in text: [1]
  41. Martinez, R.; Espinosa, A.; Tárraga, A.; Molina, P. Org. Lett. 2005, 7, 5869. doi:10.1021/ol052508i
    Return to citation in text: [1]
  42. Kim, S. H.; Kim, J. S.; Park, S. M.; Chang, S.-K. Org. Lett. 2006, 8, 371. doi:10.1021/ol052282j
    Return to citation in text: [1]
  43. Yoon, J.; Ohler, N. E.; Vance, D. H.; Aumiller, W. D.; Czarnik, A. W. Tetrahedron Lett. 1997, 38, 3845. doi:10.1016/S0040-4039(97)00768-5
    Return to citation in text: [1]
  44. Kim, Y.-H.; Youk, J. S.; Moon, S. Y.; Choe, J.-I.; Chang, S.-K. Chem. Lett. 2004, 33, 702. doi:10.1246/cl.2004.702
    Return to citation in text: [1]
  45. Rurack, K.; Kollmannsberger, M.; Resch-Genger, U.; Daub, J. J. Am. Chem. Soc. 2000, 122, 968. doi:10.1021/ja992630a
    Return to citation in text: [1]
  46. Youn, N. J.; Chang, S.-K. Tetrahedron Lett. 2005, 46, 125. doi:10.1016/j.tetlet.2004.11.003
    Return to citation in text: [1]
  47. Basheer, M. C.; Alex, S.; Thomas, K. G.; Suresh, C. H.; Das, S. Tetrahedron 2006, 62, 605. doi:10.1016/j.tet.2005.10.012
    Return to citation in text: [1]
  48. Moon, Y. S.; Cha, N. R.; Kim, Y. H.; Chang, S.-K. J. Org. Chem. 2004, 69, 181. doi:10.1021/jo034713m
    Return to citation in text: [1]
  49. Park, S. M.; Kim, M. H.; Choe, J.-I.; No, K. T.; Chang, S.-K. J. Org. Chem. 2007, 72, 3550. doi:10.1021/jo062516s
    Return to citation in text: [1]
  50. Song, K.-C.; Kim, M. H.; Kim, H. J.; Chang, S.-K. Tetrahedron Lett. 2007, 48, 7464. doi:10.1016/j.tetlet.2007.08.070
    Return to citation in text: [1]
  51. Kim, S. H.; Song, K. C.; Ahn, S.; Kang, Y. S.; Chang, S.-K. Tetrahedron Lett. 2006, 47, 497. doi:10.1016/j.tetlet.2005.11.060
    Return to citation in text: [1]
  52. Móczár, I.; Huszthy, P.; Mezei, A.; Kádár, M.; Nyitrai, J.; Tóth, K. Tetrahedron 2010, 66, 350. doi:10.1016/j.tet.2009.10.076
    Return to citation in text: [1]
  53. Miyazi, H.; Sessler, J. L. Angew. Chem., Int. Ed. 2001, 40, 154. doi:10.1002/1521-3773(20010105)40:1<154::AID-ANIE154>3.0.CO;2-G
    Return to citation in text: [1]
  54. Blázquez, M. T.; Muñiz, F. M.; Sáez, S.; Simón, L. M.; Alonso, Á.; Raposo, C.; Lithgow, A.; Alcázar, V.; Morán, J. R. Heterocycles 2006, 69, 73. doi:10.3987/COM-06-S(O)18
    Return to citation in text: [1]
  55. García-Garrido, S. E.; Caltagirone, C.; Light, M. E.; Gale, P. A. Chem. Commun. 2007, 1450. doi:10.1039/b618072h
    Return to citation in text: [1]
  56. Lin, C.; Simov, V.; Drueckhammer, D. J. J. Org. Chem. 2007, 72, 1742. doi:10.1021/jo062467j
    Return to citation in text: [1]
  57. Mashraqui, S. H.; Tripathi, S.; Betkar, R.; Chandiramani, M. Chem. Lett. 2010, 39, 650. doi:10.1246/cl.2010.650
    Return to citation in text: [1]
  58. Safarzadeh, A. A.; Condirston, D. A.; Verrall, R. E.; Steer, R. P. Chem. Phys. Lett. 1981, 77, 99. doi:10.1016/0009-2614(81)85608-4
    Return to citation in text: [1]
  59. Mizuyama, K.; Tominaga, Y.; Matsuda, Y.; Kobayashi, G. Chem. Pharm. Bull. 1979, 27, 2879. doi:10.1248/cpb.27.2879
    Return to citation in text: [1]
  60. Fukuzumi, S.; Ohkubo, K. J. Am. Chem. Soc. 2002, 124, 10270. doi:10.1021/ja026613o
    Return to citation in text: [1] [2] [3]
  61. Dawson, W. R.; Windsor, M. W. J. Phys. Chem. 1968, 72, 3251. doi:10.1021/j100855a027
    Return to citation in text: [1]
