Efficient oxidation of oleanolic acid derivatives using magnesium bis(monoperoxyphthalate) hexahydrate (MMPP): A convenient 2-step procedure towards 12-oxo-28-carboxylic acid derivatives

  1. 1,2 ,
  2. 1,3 ,
  3. 1 ,
  4. 1 and
  5. 4
1Grupo de Química Farmacêutica, Faculdade de Farmácia da Universidade de Coimbra, Pólo das Ciências da Saúde, Azinhaga de Santa Comba, 3000-548, Coimbra, Portugal
2Centro de Neurociências e Biologia Celular, Universidade de Coimbra, 3004-517 Coimbra, Portugal
3Centro de Química de Coimbra, Faculdade de Ciências e Tecnologia da Universidade de Coimbra, Rua Larga, 3004-535 Coimbra, Portugal
  1. Corresponding author email
Associate Editor: C. Stephenson
Beilstein J. Org. Chem. 2012, 8, 164–169. https://doi.org/10.3762/bjoc.8.17
Received 25 Nov 2011, Accepted 04 Jan 2012, Published 30 Jan 2012
Letter
cc by logo
PDF
Album
Supp Info
Cite

Abstract

A new, straightforward and high yielding procedure to convert oleanolic acid derivatives into the corresponding δ-hydroxy-γ-lactones, by using the convenient oxidizing agent magnesium bis(monoperoxyphthalate) hexahydrate (MMPP) in refluxing acetonitrile, is reported. In addition, a two-step procedure for the preparation of oleanolic 12-oxo-28-carboxylic acid derivatives directly from Δ12-oleananes, without the need for an intermediary work-up, and keeping the same reaction solvent in both steps, is described as applied to the synthesis of 3,12-dioxoolean-28-oic acid.

Keywords: bismuth(III) triflate; δ-hydroxy-γ-lactones; MMPP; oleanolic acid; triterpenoid

Findings

The molecular diversity that arises from research into natural products represents a valuable tool for driving drug discovery and development [1,2]. In this context, pentacyclic triterpenoids are currently regarded as important scaffolds for new drug development [3]. The chemistry of oleanane-type triterpenoids has been investigated with particular interest and many relevant biological and pharmacological activities of these derivatives have been reported in the literature, among which are antitumor, antiviral, anti-inflammatory, hepatoprotective, gastroprotective, antimicrobial, antidiabetic, and hemolytic properties, as well as many others [3-5]. Functionalized γ-lactones are important building blocks of bioactive natural products [6,7]. The δ-hydroxy-γ-lactone motif is part of such bioactive natural products as (±)-muricatacin [8,9] or the three hydroxylactones found in the mushroom Mycoleptodonoides aitchisonii [10]. Terpenoid δ-hydroxy-γ-spirolactones have been found to act as significant feeding deterrents to the lesser mealworm Alphitobius diaperinus [11]. In particular, oleanane-type triterpenoids bearing a γ-lactone function, either isolated from natural sources or obtained by semisynthesis, have shown interesting biological activities [12-14]. From the synthetic point of view, the oxidative 28,13β-lactonization allows the preparation of 12α-hydroxyoleananes with a protected 28-carboxyl acid function. In fact, 12α-hydroxy-3-oxooleanan-28,13β-olide (2) is a key intermediate in the synthesis of S-0139, an endothelin A receptor antagonist [15]. Moreover, as part of our ongoing work on pentacyclic triterpenoid chemistry [16,17], we recently demonstrated that oleanolic δ-hydroxy-γ-lactones can be efficiently converted into the corresponding 12-oxo-28-carboxylic acid derivatives by bismuth(III) triflate catalysis [18]. This new approach not only avoids an inconvenient multistep synthesis by means of a protection/deprotection strategy [19,20] but also results in chemical modification of ring C, a strategy known to increase the anti-inflammatory and cytotoxic activities of oleanolic acid (OA) derivatives [19,21,22].

Oleanolic δ-hydroxy-γ-lactones can be obtained from Δ12-oleananes by oxidative 28,13β-lactonization. This reaction was performed under photochemical irradiation [23,24], but weak selectivity and low isolated yields were observed. Alternatively, oxidation reagents such as H2O2 in acetic acid [25,26], the inorganic salt mixture KMnO4/CuSO4 [27], ozone [15,28,29] and m-chloroperoxybenzoic acid (mCPBA) [30,31] have also been reported. Magnesium bis(monoperoxyphthalate) hexahydrate (MMPP) is commercially available, inexpensive and relatively stable [32-34] and has been used in the oxidation of various functional groups [35-42]. This oxidant is non-shock-sensitive and non-deflagrating [43]. Moreover, its use greatly simplifies the isolation of the reaction products, because it may simply be filtered off from the reaction crude, which is then worked up as usual.

In this letter, we report the use of MMPP for the efficient and high-yielding oxidation of OA derivatives to afford the corresponding δ-hydroxy-γ-lactones. Moreover, we have set up a protocol that allows the convenient sequential two-step preparation of 3,12-dioxoolean-28-oic acid directly from 3-oxooleanolic acid, without the need of an intermediary work-up, and keeping the same reaction solvent in both steps.

We found that the reaction of 3-oxooleanolic acid 1 with 2.0 equiv of MMPP, in refluxing acetonitrile, afforded the corresponding δ-hydroxy-γ-lactone 2 in 85% yield after 5 hours (Table 1, entry 1). These new reaction conditions were successfully extended to OA 3 and other 3β-substituted OA derivatives 5, 7 and 9 (Table 1, entries 2–5).

Table 1: Reaction of OA derivatives with MMPP to afford oleanolic δ-hydroxy-γ-lactones directly.a

Entry Substrate (mmol) MMPP (equiv) Time (h) Productb Yieldc (%)
1 [Graphic 1]
1 (0.16 mmol) 		2.0 5 [Graphic 2]
2 		85
2 [Graphic 3]
3 (0.16 mmol) 		2.0 24 [Graphic 4]
4 		84
3 [Graphic 5]
5 (0.15 mmol) 		2.0 8 [Graphic 6]
6 		88
4 [Graphic 7]
7 (0.13 mmol) 		2.6 24 [Graphic 8]
8 		98
5 [Graphic 9]
9 (0.16 mmol) 		3.0 24 [Graphic 10]
10 		92

aReactions were performed in acetonitrile, under reflux; bAnalytical data for compounds 2 [29], 4 [28], 6 [27], 8 [18] and 10 [18] are in accordance with the literature; cIsolated yield.

The substrates were dissolved in acetonitrile under reflux, and MMPP (2.0–3.0 equiv) was added to the solution under strong magnetic stirring. After completion of the reaction, the magnesium salts were easily filtered off after evaporation of the acetonitrile and suspension of the resulting white solid in ethyl acetate. We found that 2.0 equiv of MMPP were sufficient to effectively convert 3-oxooleanolic acid 1, OA 3, and 3β-acetoxyoleanolic acid 5 into the corresponding δ-hydroxy-γ-lactones 2, 4 and 6, in 84 to 88% yield (Table 1, entries 1–3). Substrates 7 and 9, bearing a trifluoroacetoxy and a methoxy group at C3, respectively, required higher amounts of the reagent and longer reaction times (Table 1, entries 4 and 5). The formation of the oleanolic δ-hydroxy-γ-lactones 2, 4, 6, 8 and 10, may be explained by epoxidation of the parent Δ12-oleanane compound, followed by nucleophilic attack of the 28-carboxyl group at C13 from the β-face, with ring-opening of the 12α,13α-epoxide intermediate [15,44].

Quite recently, we demonstrated that the 28,13β-lactonization of 3-oxooleanolic acid 1 promoted by Bi(OTf)3·xH2O affords a 3-oxo-18α-olean-28,13β-olide product, with inversion of configuration at the C18-stereocenter, as demonstrated by X-ray crystallography [45,46]. In order to assign the orientation of the 18-H of the 12α-hydroxy-γ-lactones obtained in this work, 2D NMR data were collected for compounds 2, 6 and 8, and X-ray data were gathered for compound 4. Combining 1D and 2D-NMR spectroscopy, we were able to determine the chemical shift of 18-H (2.02 ppm) for compound 2. This value is much lower than the one of the parent substrate 1 (2.84 ppm), which may be explained by magnetic anisotropy induced by the 28,13β-lactone moiety. It is also interesting to note that a long-distance coupling between the 18-H and 12β-H (3.90 ppm) signals was found in the COSY spectrum of 2. Correlation between these two signals was also observed in the NOESY experiment and, therefore, the β-configuration was assigned at the C18-stereocenter. The same NMR pattern was present for compounds 6 and 8. Unequivocal evidence of the molecular structure of compound 4 was obtained by single-crystal X-ray crystallography, and the ORTEP diagram with the corresponding atomic numbering scheme is depicted in Figure 1.

[1860-5397-8-17-1]

Figure 1: ORTEP diagram of compound 4 (50% probability level, H atoms of arbitrary sizes). The asymmetric unit also contains a molecule of CH3CN.

In the past few years, bismuth(III) salts have emerged as convenient reagents for the development of new chemical processes under more “ecofriendly” reaction conditions, which avoid the use of large amounts of toxic and corrosive materials [47-51]. Bearing in mind the solubility properties of MMPP and that both the oxidative 28,13β-lactonization and the bismuth(III) triflate-catalyzed direct opening of δ-hydroxy-γ-lactones are performed in acetonitrile, we designed a protocol to perform the synthesis of oleanolic 12-oxo-28-carboxylic acid derivatives directly from Δ12-oleananes, without the need for an intermediary work-up, and keeping the same reaction solvent in both steps (Scheme 1).

[1860-5397-8-17-i1]

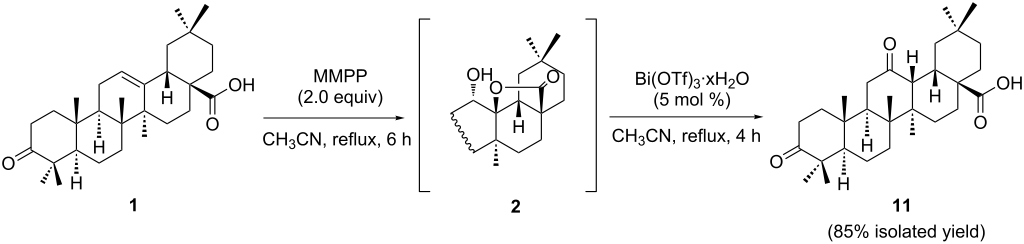

Scheme 1: Sequential 2-step synthesis of 3,12-dioxoolean-28-oic acid (11) directly from 3-oxooleanolic acid (1).

Thus, after the formation of the 12α-hydroxy-28,13β-olide compound 2 by MMPP oxidation, a filtration step allowed the elimination of insoluble magnesium salts, taking advantage of their low solubility in acetonitrile. Then, a catalytic amount of bismuth(III) triflate (5 mol %) was added to the resulting filtrate, and the expected 12-oxo-28-carboxylic acid 11 was obtained, in 85% yield, after the typical work-up procedure [18]. The formation of compound 11 from the 12α-hydroxy-28,13β-olide 2 is likely to occur due to the in situ generation of a Brønsted acid species from bismuth(III) triflate, which promotes ring opening of the 28,13β-olide group, creating a tertiary carbocation at C-13. Then, a concerted stereoselective 1,2-migration of the 12β-H to the 13β-position with the rearrangement of the 12α-hydroxy group affords the final 12-oxo-28-carboxylic acid structure [18]. The molecular structure of compound 11, determined by single-crystal X-ray crystallography, is shown in Figure 2.

[1860-5397-8-17-2]

Figure 2: ORTEP diagram of compound 11 (50% probability level, H atoms of arbitrary sizes).

In conclusion, we have found a new straightforward procedure to convert OA derivatives into δ-hydroxy-γ-lactones, in very high yields, using the convenient oxidizing agent MMPP. This procedure has considerable advantages over the previously reported oxidation methods, because no other positions of the molecule are oxidized concomitantly, it avoids the use of halogenated solvents, and allows easy recovery of the reaction products. Combination of this oxidative 28,13β-lactonization process with the ability of bismuth(III) triflate to catalyze the opening of the resulting δ-hydroxy-γ-lactone with subsequent generation of the carbonyl group, allowed us to set up a sequential two step strategy for the preparation of 3,12-dioxoolean-28-oic acid (11) directly from 3-oxooleanolic acid 1, that avoids an intermediary work-up and conveniently uses the same reaction solvent in both steps. Thus, the procedure reported herein greatly simplifies the obtainment of oleanolic δ-hydroxy-γ-lactones, which are versatile intermediates for organic synthesis, and in addition can provide very easy access to the corresponding oleanolic 12-oxo-28-carboxylic acids.

Supporting Information

The Supporting Information contains the typical procedure for the MMPP oxidative 28,13β-lactonization and preparation of compounds 2, 4, 6, 8 and 10. Moreover, the procedure for the sequential two step synthesis of 3,12-dioxoolean-28-oic acid (11) is described and the 1D and 2D NMR spectra of compounds 2, 4, 6, 8, 10 and 1D NMR spectra of compound 11 are shown.

Supporting Information File 1: Experimental and analytical data.
Format: PDF Size: 968.5 KB Download

Acknowledgements

Jorge A. R. Salvador wishes to thank Universidade de Coimbra for financial support. Vânia M. Moreira wishes to thank Fundação para a Ciência e a Tecnologia for financial support (SFRH/BPD/45037/2008). Ana S. Leal wishes to thank Fundação para a Ciência e a Tecnologia for financial support (SFRH/BD/41566/2007).

References

  1. Shu, Y.-Z. J. Nat. Prod. 1998, 61, 1053–1071. doi:10.1021/np9800102
    Return to citation in text: [1]
  2. Kong, J. M.; Liu, Y. Innovation Magazine 2009, 6.
    Available at: http://www.innovationmagazine.com/innovation/volumes/v6n2/coverstory1.shtml
    Return to citation in text: [1]
  3. Salvador, J. A. R., Ed. Pentacyclic Triterpenes as Promising Agents in Cancer; Nova Science Publishers, Inc.: New York, 2010.
    ISBN 978-1-60876-973-5.
    Return to citation in text: [1] [2]
  4. Sun, H.; Fang, W.-S.; Wang, W.-Z.; Hu, C. Bot. Stud. 2006, 47, 339–368.
    Return to citation in text: [1]
  5. Liby, K. T.; Yore, M. M.; Sporn, M. B. Nat. Rev. Cancer 2007, 7, 357–369. doi:10.1038/nrc2129
    Return to citation in text: [1]
  6. Wang, Z.-M.; Zhang, X.-L.; Sharpless, K. B.; Sinhaa, S. C.; Sinha-Bagchia, A.; Keinan, E. Tetrahedron Lett. 1992, 33, 6407–6410. doi:10.1016/S0040-4039(00)79001-0
    Return to citation in text: [1]
  7. Pehlivan, L.; Jacolot, M.; Coia, N.; Monteiro, N.; Bouyssi, D.; Balme, G. Tetrahedron Lett. 2011, 52, 4716–4719. doi:10.1016/j.tetlet.2011.06.106
    Return to citation in text: [1]
  8. Murcia, M. C.; Navarro, C.; Moreno, A.; Csákÿ, A. G. Curr. Org. Chem. 2010, 14, 15–47. doi:10.2174/138527210790226410
    Return to citation in text: [1]
  9. Mehl, F.; Bombarda, I.; Vanthuyne, N.; Faure, R.; Gaydou, E. M. Food Chem. 2010, 121, 98–104. doi:10.1016/j.foodchem.2009.12.010
    Return to citation in text: [1]
  10. Choi, J.-H.; Horikawa, M.; Okumura, H.; Kodani, S.; Nagai, K.; Hashizume, D.; Koshino, H.; Kawagishi, H. Tetrahedron 2009, 65, 221–224. doi:10.1016/j.tet.2008.10.068
    Return to citation in text: [1]
  11. Szczepanik, M.; Dams, I.; Wawrzenczyk, C. Entomol. Exp. Appl. 2008, 128, 337–345. doi:10.1111/j.1570-7458.2008.00725.x
    Return to citation in text: [1]
  12. Katai, M.; Terai, T.; Meguri, H. Chem. Pharm. Bull. 1983, 31, 1567–1571. doi:10.1248/cpb.31.1567
    Return to citation in text: [1]
  13. Poehland, B. L.; Carté, B. K.; Francis, T. A.; Hyland, L. J.; Allaudeen, H. S.; Troupe, N. J. Nat. Prod. 1987, 50, 706–713. doi:10.1021/np50052a022
    Return to citation in text: [1]
  14. Hui, W.-H.; Li, M.-M. Phytochemistry 1976, 15, 1741–1743. doi:10.1016/S0031-9422(00)97468-5
    Return to citation in text: [1]
  15. Hida, T.; Fukui, Y.; Kawata, K.; Kabaki, M.; Masui, T.; Fumoto, M.; Nogusa, H. Org. Process Res. Dev. 2010, 14, 289–294. doi:10.1021/op900265h
    Return to citation in text: [1] [2] [3]
  16. Santos, R. C.; Salvador, J. A. R.; Marín, S.; Cascante, M.; Moreira, J. N.; Dinis, T. C. P. Bioorg. Med. Chem. 2010, 18, 4385–4396. doi:10.1016/j.bmc.2010.04.085
    Return to citation in text: [1]
  17. Santos, R. C.; Salvador, J. A. R.; Marín, S.; Cascante, M. Bioorg. Med. Chem. 2009, 17, 6241–6250. doi:10.1016/j.bmc.2009.07.050
    Return to citation in text: [1]
  18. Salvador, J. A. R.; Moreira, V. M.; Pinto, R. M. A.; Leal, A. S.; Le Roux, C. Adv. Synth. Catal. 2011, 353, 2637–2642. doi:10.1002/adsc.201100155
    Return to citation in text: [1] [2] [3] [4] [5]
  19. Honda, T.; Rounds, B. V.; Bore, L.; Finlay, H. J.; Favaloro, F. G., Jr.; Suh, N.; Wang, Y.; Sporn, M. B.; Gribble, G. W. J. Med. Chem. 2000, 43, 4233–4246. doi:10.1021/jm0002230
    Return to citation in text: [1] [2]
  20. Zhu, Y.-M.; Shen, J.-K.; Wang, H.-K.; Cosentino, L. M.; Lee, K.-H. Bioorg. Med. Chem. Lett. 2001, 11, 3115–3118. doi:10.1016/S0960-894X(01)00647-3
    Return to citation in text: [1]
  21. Couch, R. D.; Browning, R. G.; Honda, T.; Gribble, G. W.; Wright, D. L.; Sporn, M. B.; Anderson, A. C. Bioorg. Med. Chem. Lett. 2005, 15, 2215–2219. doi:10.1016/j.bmcl.2005.03.031
    Return to citation in text: [1]
  22. Sporn, M. B.; Liby, K. T.; Yore, M. M.; Suh, N.; Albini, A.; Honda, T.; Sundararajan, C.; Gribble, G. W. Drug Dev. Res. 2007, 68, 174–182. doi:10.1002/ddr.20179
    Return to citation in text: [1]
  23. Kitagawa, I.; Kitazawa, K.; Yosioka, I. Tetrahedron Lett. 1968, 509–512. doi:10.1016/S0040-4039(01)98794-5
    Return to citation in text: [1]
  24. Kitagawa, I.; Kitazawa, K.; Yosioka, I. Tetrahedron 1972, 28, 907–921. doi:10.1016/0040-4020(72)80149-2
    Return to citation in text: [1]
  25. Barton, D. H. R. J. Chem. Soc. 1952, 78–92. doi:10.1039/JR9520000078
    Return to citation in text: [1]
  26. Majumber, P. L.; Bachi, A. Tetrahedron 1983, 39, 649–655. doi:10.1016/S0040-4020(01)91841-1
    Return to citation in text: [1]
  27. Hichri, F.; Jannet, H. B.; Cheriaa, J.; Jegham, S.; Mighri, Z. C. R. Chim. 2003, 6, 473–483. doi:10.1016/S1631-0748(03)00066-3
    Return to citation in text: [1] [2]
  28. Ali, M. S.; Jahangir, M.; ul Hussan, S. S.; Choudhary, M. I. Phytochemistry 2002, 60, 295–299. doi:10.1016/S0031-9422(02)00104-8
    Return to citation in text: [1] [2]
  29. Konoike, T.; Takahashi, K.; Araki, Y.; Horibe, I. J. Org. Chem. 1997, 62, 960–966. doi:10.1021/jo9615864
    Return to citation in text: [1] [2]
  30. Sánchez, M.; Theoduloz, C.; Schmeda-Hirschmann, G.; Razmilic, I.; Yáñez, T.; Rodríguez, J. A. Life Sci. 2006, 79, 1349–1356. doi:10.1016/j.lfs.2006.03.044
    Return to citation in text: [1]
  31. De Heluani, C. S.; De Boggiato, M. V.; Catalán, C. A. N.; Díaz, J. G.; Gédris, T. E.; Herz, W. Phytochemistry 1997, 45, 801–805. doi:10.1016/S0031-9422(97)00021-6
    Return to citation in text: [1]
  32. Brougham, P.; Cooper, M. S.; Cummerson, D. A.; Heaney, H.; Thompson, N. Synthesis 1987, 1015–1017. doi:10.1055/s-1987-28153
    Return to citation in text: [1]
  33. Velasco, M. A. Synlett 2005, 1807–1808. doi:10.1055/s-2005-871570
    Return to citation in text: [1]
  34. Carvalho, J. F. S.; Silva, M. M. C.; Sá e Melo, M. L. Tetrahedron 2009, 65, 2773–2781. doi:10.1016/j.tet.2009.01.100
    Return to citation in text: [1]
  35. Fernández, R.; Gasch, C.; Lassaletta, J.-M.; Llera, J.-M. Synthesis 1996, 627–632. doi:10.1055/s-1996-4257
    Return to citation in text: [1]
  36. Pareja, C.; Martín-Zamora, E.; Fernandez, R.; Lassaletta, J. M. J. Org. Chem. 1999, 64, 8846–8854. doi:10.1021/jo991049u
    Return to citation in text: [1]
  37. Fernández, R.; Ferrete, A.; Llera, J. M.; Magriz, A.; Martín-Zamora, E.; Díez, E.; Lassaletta, J. M. Chem.–Eur. J. 2004, 10, 737–745. doi:10.1002/chem.200305501
    Return to citation in text: [1]
  38. Heaney, H.; Newbold, A. J. Tetrahedron Lett. 2001, 42, 6607–6609. doi:10.1016/S0040-4039(01)01332-6
    Return to citation in text: [1]
  39. Poltowicz, J.; Pamin, K.; Haber, J. J. Mol. Catal. A: Chem. 2006, 257, 154–157. doi:10.1016/j.molcata.2006.04.070
    Return to citation in text: [1]
  40. Taubert, K.; Siegemund, A.; Eilfeld, A.; Baumann, S.; Sieler, J.; Schulze, B. Synthesis 2003, 2265–2268. doi:10.1055/s-2003-42087
    Return to citation in text: [1]
  41. Chen, M.-Y.; Patkar, L. N.; Lin, C.-C. J. Org. Chem. 2004, 69, 2884–2887. doi:10.1021/jo035698o
    Return to citation in text: [1]
  42. Heaney, H. Aldrichimica Acta 1993, 26, 35–45.
    Return to citation in text: [1]
  43. Jones, C. W. In RSC Clean Technology Monographs; Clark, J., Ed.; 1999.
    Return to citation in text: [1]
  44. García-Granados, A.; López, P. E.; Melguizo, E.; Parra, A.; Simeó, Y. Tetrahedron 2004, 60, 3831–3845. doi:10.1016/j.tet.2004.03.008
    Return to citation in text: [1]
  45. Salvador, J. A. R.; Pinto, R. M. A.; Santos, R. C.; Le Roux, C.; Beja, A. M.; Paixão, J. A. Org. Biomol. Chem. 2009, 7, 508–517. doi:10.1039/b814448f
    Return to citation in text: [1]
  46. Santos, R. C.; Pinto, R. M. A.; Matos Beja, A.; Salvador, J. A. R.; Paixão, J. A. Acta Crystallogr., Sect. E 2010, E66, o2139–o2140. doi:10.1107/S160053681002903X
    Return to citation in text: [1]
  47. Chacón-Garcia, L.; Chávez, L.; Cacho, D. R.; Altamirano-Hernández, J. Beilstein J. Org. Chem. 2009, 5, 2. doi:10.3762/bjoc.5.2
    Return to citation in text: [1]
  48. Ollevier, T.; Li, Z. Adv. Synth. Catal. 2009, 351, 3251–3259. doi:10.1002/adsc.200900710
    Return to citation in text: [1]
  49. Pinto, R. M. A.; Salvador, J. A. R.; Le Roux, C.; Paixão, J. A. J. Org. Chem. 2009, 74, 8488–8491. doi:10.1021/jo9018478
    Return to citation in text: [1]
  50. Rueping, M.; Nachtsheim, B. J.; Ieawsuwan, W. Adv. Synth. Catal. 2006, 348, 1033–1037. doi:10.1002/adsc.200606068
    Return to citation in text: [1]
  51. Anzalone, P. W.; Baru, A. R.; Danielson, E. M.; Hayes, P. D.; Nguyen, M. P.; Panico, A. F.; Smith, R. C.; Mohan, R. S. J. Org. Chem. 2005, 70, 2091–2096. doi:10.1021/jo048475m
    Return to citation in text: [1]
