1-Butyl-3-methylimidazolium tetrafluoroborate as suitable solvent for BF3: the case of alkyne hydration. Chemistry vs electrochemistry

  1. 1 ,
  2. 1 ,
  3. 2 ORCID Logo ,
  4. 1 ORCID Logo ,
  5. 3 ORCID Logo and
  6. 1 ORCID Logo
1Department of Basic and Applied Sciences for Engineering (SBAI), Sapienza University of Rome, via Castro Laurenziano, 7, 00161 Rome, Italy
2School of Chemistry, University of Southampton, Southampton SO17 1BJ, UK
3Department of Chemistry, Sapienza University of Rome, piazzale Aldo Moro, 5, 00185 Rome, Italy
  1. Corresponding author email
This article is part of the thematic issue "Synthetic electrochemistry".
Associate Editor: L. Vaccaro
Beilstein J. Org. Chem. 2023, 19, 1966–1981. https://doi.org/10.3762/bjoc.19.147
Received 28 Aug 2023, Accepted 12 Dec 2023, Published 28 Dec 2023
Full Research Paper
cc by logo
PDF
Album
Supp Info
Cite

Abstract

In order to replace the expensive metal/ligand catalysts and classic toxic and volatile solvents, commonly used for the hydration of alkynes, the hydration reaction of alkynes was studied in the ionic liquid 1-butyl-3-methylimidazolium tetrafluoroborate (BMIm-BF4) adding boron trifluoride diethyl etherate (BF3·Et2O) as catalyst. Different ionic liquids were used, varying the cation or the anion, in order to identify the best one, in terms of both efficiency and reduced costs. The developed method was efficaciously applied to different alkynes, achieving the desired hydration products with good yields. The results obtained using a conventional approach (i.e., adding BF3·Et2O) were compared with those achieved using BF3 electrogenerated in BMIm-BF4, demonstrating the possibility of obtaining the products of alkyne hydration with analogous or improved yields, using less hazardous precursors to generate the reactive species in situ. In particular, for terminal arylalkynes, the electrochemical route proved to be advantageous, yielding preferentially the hydration products vs the aldol condensation products. Importantly, the ability to recycle the ionic liquid in subsequent reactions was successfully demonstrated.

Keywords: alkyne hydration; boron trifluoride; electrochemical synthesis; ionic liquids

Introduction

Alkynes are fundamental starting materials towards more complex organic compounds, widely used both in organic chemistry and in electrochemistry as raw materials for the preparation of different molecules of pharmaceutical and industrial interest [1-9]. Among the different organic transformations involving alkynes, their hydration is a well-known and useful reaction in organic chemistry, affording carbonyl compounds based on an atom-economical approach. Indeed, the addition of water to the triple bond of a terminal alkyne leads to the formation of the corresponding methyl ketone or aldehyde, in the case of Markovnikov or anti-Markovnikov addition, respectively. On the other hand, the hydration of an internal unsymmetrical alkyne can lead to the formation of the two possible regioisomeric ketones.

The hydration reaction requires a catalytic species, able to polarize the alkyne triple bond to facilitate water attack. Initially, in 1881, Kucherov identified mercury(II) salts in sulfuric acid as efficient promoters of the hydration of alkynes and this catalyst system has found applications in industrial scale synthesis [10]. However, the toxicity and the environmental issues associated with the use of mercury-based compounds have stimulated the search for alternative catalysts and conditions for the hydration of alkynes, in order to identify safer and more sustainable methods [11-13]. In particular, transition-metal catalysts containing Au(I) or (III) [14-24], Ru(II) [25-30], Pd(II) [31-33], Pt(II) [34,35], Fe(III) [36,37], Cu(I) [38-41], Co(III) [42-44], as well as other metals, have been widely studied. In addition, methods involving Brønsted acids, alone or in presence of Lewis acids as co-catalysts, have been developed [45-54]. However, some of these procedures suffer from major drawbacks, such as the toxicity and/or high cost of the metal catalysts, the need to use concentrated Brønsted acids in high excess, long reaction times, and high temperatures. In addition, these reactions have been studied mainly in classical volatile and, in some cases, toxic organic solvents, such as dioxane, tetrahydrofuran, methanol, dichloromethane or 1,2-dichloroethane.

The efficiency of the reported catalysts and of the examined reaction conditions are variable according to the alkynes considered and, nowadays, the identification of new catalysts as well as increasingly mild, economic and sustainable reaction conditions remain fundamental objectives for research in the field of organic chemistry. In recent years, alternative methods have been developed, including the use of different heterogeneous catalysts, to ensure their recovery and reusability after several reaction cycles [55-68], or the use of eco-friendly reaction media [69-72]. Recently, Zhang and co-workers reported an electrochemical procedure for the hydration of arylacetylenes, under mild reaction conditions, without transition metal catalysts, added oxidants, or strong acids involved, using Selectfluor (1-(chloromethyl)-4-fluoro-1,4-diazabicyclo[2.2.2]octane-1,4-diium ditetrafluoroborate) as essential additive [73].

With regard to the reaction medium, the idea of replacing classic organic solvents with alternative solvents could represent an important innovation for alkyne hydration. In particular, ionic liquids (ILs) could represent a valid alternative to conventional organic solvents. ILs are generally liquid salts at or near room temperature, formed by large unsymmetrical organic cations and weakly coordinating or not-coordinating organic or inorganic anions. They have interesting physicochemical properties that differentiate them from the organic solvents commonly used in synthesis [74-77]. Importantly, they have a very low vapour pressure, and therefore do not behave as air pollutants. This also facilitates their recovery and recycling. Furthermore, they generally exhibit low flammability, high thermal and chemical stability, good thermal and electrical conductivity, together with the ability to solubilize organic and inorganic compounds of different polarity [78-81]. Considering the intrinsic ionic nature of ILs, they act as very different chemical medium compared to molecular solvents, having the possibility of stabilizing charged or dipolar intermediates. Therefore, ILs can be used to modulate outcomes for some chemical reactions [82,83].

There are only a few reported examples of the hydration reaction of alkynes carried out in ILs. In one case, a dicationic IL, containing sulfuric acid as catalyst, was used as reaction medium to carry out the hydration of different alkynes under mild conditions (40–60 °C, 0.5–1 h) [84]. In a second case, different Brønsted acid ionic liquids (BAILs) have been used both as medium and as catalysts for the hydration of various alkynes (60 °C, 10–24 h) [85,86]. In these works, the ILs were efficiently reused for subsequent reaction cycles. Another research group reported the use of commercially available 1-butyl-3-methylimidazolium hexafluorophosphate (BMIm-PF6) as co-solvent with methanol and water to allow recycling of a phosphine-based Au(I) complex, as an efficient catalytic system for the hydration of terminal alkynes [87]. Moreover, the interesting properties of ILs have also been exploited to synthesize new solid polymeric catalysts for the hydration of alkynes, named poly(ionic liquid)s (PILs), using trifluoroethanol as solvent [88,89].

One of the most studied classes of ILs in organic chemistry are 1,3-disubstitued imidazolium cations, which are cheap, liquid over a wide range of temperatures, and possess good solvating properties [90,91]. Due to their wide electrochemical window, imidazolium ILs are commonly used in organic electrochemistry, simultaneously as solvents and supporting electrolytes [92-94]. In addition, the cathodic reduction (both in batch [95] and in flow [96]) can be exploited for the generation of N-heterocyclic carbenes (NHCs), extensively studied as organocatalysts as well as ligands for transition-metal-promoted synthetic methodologies [97-99]. Under anodic oxidation, the electrogeneration of boron trifluoride (BF3) from tetrafluoroborate ILs occurs [100,101]. Moreover, we have recently demonstrated the possibility to efficiently apply the electrogenerated BF3 in IL for different classical acid-catalysed reactions [102,103]. Specifically, electrogenerated BF3 in 1-butyl-3-methylimidazolium tetrafluoroborate (BMIm-BF4) appears as an alternative and less dangerous source of BF3 compared to commercially available BF3 diethyl etherate (BF3·Et2O), commonly used in organic synthesis. Indeed, the main advantages of the developed system are: 1) in situ generation of BF3, which avoids its storage and handling, 2) the possibility to control the amount of electrogenerated BF3 using current by simply starting or stopping the electrolysis, 3) the absence of fuming, most probably due to the ability of the IL to stabilize the Lewis acid, 4) reduced sensitivity to moisture, due to the protective action of the IL, and 5) the possibility of recycling the same sample of IL for subsequent reaction cycles. In addition, with computational studies we demonstrated the greater stability of BF3 in BMIm-BF4 compared to BF3·Et2O [103].

Based on the ever increasing need to identify new eco-friendly catalysts and/or reaction media for the hydration of alkynes, and considering our previous works on ILs and electrogeneration of BF3, the aim of this work was to explore the hydration of alkynes using ILs as reaction medium and BF3 as catalyst. First of all, we investigated the behaviour of diphenylacetylene in BMIm-BF4 containing BF3·Et2O. Then we evaluated the same reaction in different ILs, modifying the cation or the anion. Subsequently, we extended the method to different internal and terminal alkynes. Finally, we studied the reaction in the electrogenerated BF3/BMIm-BF4 system, comparing the results with those obtained with the chemical route (BF3·Et2O).

Results and Discussion

Optimization of the reaction conditions for hydration of diphenylacetylene in BMIm-BF4 with BF3·Et2O

In the initial investigation, the internal alkyne diphenylacetylene (1a) was selected as a model substrate to evaluate alkyne reactivity in the ionic liquid 1-butyl-3-methylimidazolium tetrafluoroborate (BMIm-BF4) catalysed by BF3·Et2O and to optimize the reaction conditions for hydration. All reactions were carried out in sealed vials, in 1 mL BMIm-BF4 at 80 °C for the time indicated in Table 1. At the end of the reaction the mixture was extracted with diethyl ether and the extracts were washed with water to obtain the crude, which was analysed using NMR spectroscopy.

Table 1: Optimization of the reaction conditions for hydration of diphenylacetylene (1a)a.

[Graphic 1]
Entry BF3·Et2Ob H2Ob BMIm-BF4c Time Yield 2a [%]d Recovered 1a [%]d
1e 5 – dried 5 h 53 46
2f 5 – not dried 5 h 73 24
3e 5 – dried 18 h 87 10
4f 5 1 dried 5 h 72 24
5f 5 1 dried 18 h 95 4
6f 5 2 dried 5 h 73 26
7g 5 2 dried 18 h 96 (90)h 1
8f 4 1 dried 18 h 83 13
9g 3 1 dried 18 h 81 11
10 3 – not dried 65 h 92 3
11 2 – not dried 65 h 66 28

aAll the reactions were carried out at 80 °C in BMIm-BF4, with 0.3 mmol of diphenylacetylene (1a); bequivalents with respect to 1a; cBMIm-BF4 was kept under vacuum (7 mbar) for 16 h before each use (dried) or used as such (not dried); dyields calculated from 1H NMR spectra of the crude extracts; ethe same recycled IL was used for the experiments in entry 1 and 3; fthe same recycled IL was used for the experiments in entries 2, 4–6 and 8; gthe same recycled IL was used for the experiments in entries 7 and 9; hyield of the product 2a isolated after column chromatography.

Initially the reaction was carried out without added water, in the presence of a large excess of BF3·Et2O (5 equiv) (as often reported in literature, see as an example [104]). The reaction was conducted for 5 h at 80 °C using either “stock” (undried) BMIm-BF4 (Table 1, entry 2) or “dry” BMIm-BF4 (kept under vacuum for 16 h before use, entry 1). Due to the hygroscopic nature of the ILs, the water present within the “stock” BMIm-BF4 was evidently enough to give the hydration product 2a with 73% yield (Table 1, entry 2). However, even in the dried IL, without external addition of water, the product was obtained with 53% yield (Table 1, entry 1), demonstrating that the applied drying process was not sufficient to eliminate all the water present.

By increasing the reaction time, from 5 h to 18 h (Table 1, entry 3), recycling the IL used in the experiment in entry 1 (after drying the IL under vacuum for 16 h), there was a significant increase in product yield from 53% to 87%.

Then, we investigated addition of water to BMIm-BF4, as the literature reports that the hydrolysis of the anion of this IL is quite slow in the presence of excess water (less than 5% BF4‒ hydrolysis in a 1:1 in volume IL/water solution kept at 45 °C for 24 h) [105]. It should be noted that the same treatment carried out on 1-methyl-3-octylimidazolium tetrafluoroborate (OMIm-BF4) evidenced a much higher extent of BF4‒ hydrolysis. This is probably due to the weaker interaction between cation and anion of the IL as the length of the side alkyl chain increases, which makes the BF4‒/water interaction more effective. Although Saihara and co-workers demonstrated that BF4‒ hydrolysis generates HF, which reacts with the surrounding glass container yielding SiF62‒ (signal at −130 ppm in 19F NMR spectrum) [106], we never detected such a peak in 19F NMR spectra of the neat IL, analysed after reaction work-up, keeping it under vacuum to completely eliminate diethyl ether traces before NMR analysis. It should be mentioned that the solution was kept in the NMR tubes only for the time necessary to record the NMR spectra. We cannot exclude that a much longer contact time between glass and solution could evidence such a signal.

Using dried IL and adding 1 equiv of water with respect to alkyne (Table 1, entries 4 and 5), the yield of 2a improved from 53% to 72% after 5 h (Table 1, entry 1 vs 4), and from 87% to 95% after 18 h (Table 1, entry 3 vs 5). Therefore, comparable yields of 2a can be obtained using the “stock” IL (Table 1, entry 2) or the dried IL by adding 1 equiv of water (Table 1, entry 4). Clearly, the amount of water contained in the IL can be affected by various factors, in particular how long the bottle has been opened and to how much moisture it has been exposed, so from the point of view of reproducibility it was preferred to dry the IL and add a defined amount of water. By increasing the amount of water to 2 equiv, the yields of the desired product did not change (compare Table 1, entries 4 vs 6, and 5 vs 7).

A modest decrease in the yield of 2a was observed when the amount of BF3·Et2O was reduced (4 and 3 equiv) in the presence of 1 equiv of water for 18 h, although the yields of the reaction product still remained high (>80%, Table 1, entries 8 and 9). Further investigation using lower amounts of BF3·Et2O revealed that a 92% yield of 2a could be realized using 3 equiv of the Lewis acid by extending the reaction time to 65 h (Table 1, entry 10). A further reduction in the amount of BF3·Et2O to 2 equiv resulted in a lower yield of 66% after the same reaction time (65 h, Table 1, entry 11). The experiments reported in Table 1 suggest that the best conditions for the hydration of diphenylacetylene (1a) are 5 equiv of BF3·Et2O, 1 or 2 equiv of H2O, at 80 °C for 18 h (Table 1, entries 5 and 7). Importantly, as shown in Table 1, the same samples of BMIm-BF4 were efficiently reused up to five times, without adversely affecting the reaction yields.

Screening of different ionic liquids as media for the hydration of diphenylacetylene

After the optimization of the reaction conditions in BMIm-BF4, different ILs were considered as alternative solvent (Table 2 and Table 3). All the experiments were carried out under the conditions reported in entry 9 of Table 1, in order to observe possible variations in the yield of compound 2a. ILs with different anions or cations (compared to BMIm-BF4) were investigated to probe potential interactions with the reagents, the intermediates or the reaction product. All the ILs were dried under vacuum for 16 h, prior to use.

Table 2: Structure of the ILs used as solvent for the hydration reaction of diphenylacetylene (1a).

Structure Acronym R R1 X−
[Graphic 2] EMIm-BF4 CH3CH2- H- BF4−
BMIm-BF4 CH3(CH2)3- H- BF4−
HMIm-BF4 CH3(CH2)5- H- BF4−
OMIm-BF4 CH3(CH2)7- H- BF4−
DMIm-BF4 CH3(CH2)9- H- BF4−
BDMIm-BF4 CH3(CH2)3- CH3- BF4−
BMIm-Tf2N CH3(CH2)3- H- (CF3SO2)2N−
BMIm-PF6 CH3(CH2)3- H- PF6−
BMIm-TfO CH3(CH2)3- H- CF3SO3−
BMIm-OAc CH3(CH2)3- H- CH3COO−
BMIm-OCOCF3 CH3(CH2)3- H- CF3COO−
[Graphic 3] BMPy-BF4

Table 3: Hydration reaction of diphenylacetylene 1a in different ILsa.

Entry Solventb Yield 2a [%]c Recovered 1a [%]c
1 EMIm-BF4 76 13
2 d BMIm-BF4 81 11
3 HMIm-BF4 71 20
4 OMIm-BF4 37 54
5 DMIm-BF4 31 61
6 BDMIm-BF4 64 28
7 BMPy-BF4 35 60
8 BMIm-Tf2N 87 4
9 BMIm-PF6 87 3
10 BMIm-TfO 1 95
11 BMIm-OAc traces 98
12 BMIm-OCOCF3 traces 97
13 dioxane 10 90

aAll the reactions were carried out with 0.3 mmol of diphenylacetylene (1a), 3 equiv of BF3·Et2O, 1 equiv of H2O, at 80 °C for 18 h; bthe ILs were kept under vacuum for 16 h before use; cyields calculated from the 1H NMR spectra of the crude extracts; dreplicate of experiment reported in entry 9 of Table 1, for comparison.

Considering the imidazolium tetrafluoroborate ILs, with the exception of BMIm-BF4, a progressive decrease in the yield of 2a, from 76% to 31%, was observed by increasing the length of the aliphatic chain linked to the imidazolic ring (Table 3, entries 1–5). Although BMIm-BF4 gave a slightly higher yield than that obtained with EMIm-BF4, the general trend suggests that probably the increase in the lipophilicity of the ILs impairs the reaction, hindering the attack of water to the triple bond. Furthermore, the reaction in BDMIm-BF4, with an additional methyl group in 2 position of the imidazolic ring, gave 2a with a lower yield compared to BMIm-BF4 (Table 3, entry 6 vs 2). Replacing the imidazolium cation with 1-butyl-3-methylpyridinium led to a drastic reduction of the yield of 2a, to 35% (Table 3, entry 7).

By keeping the 1-butyl-3-methylimidazolium cation unchanged, anion variation also affected the reaction yield. Indeed, in the presence of triflate, acetate or trifluoroacetate anions the desired product was obtained only in trace amounts (Table 3, entries 10–12). This could be explained by the fact that these anions could coordinate the Lewis acid BF3 through the negatively charged oxygen [107], decreasing availability of BF3 for catalysis.

Otherwise, ILs possessing bis(trifluoromeylsulfonyl)imide and hexafluorophosphate anions afforded hydrated product 2a with slightly better yields (87%) compared to those achieved with the BF4– counter anion (Table 3, entries 8–9 vs 2), suggesting PF6− and Tf2N− do not hinder the reactivity of BF3 in the hydration reaction.

Based on these results, considering the higher cost of BMIm-Tf2N and BMIm-PF6, the preferred IL among those tested, in terms of both yield and cost, is BMIm-BF4.

The reaction was also carried out using dioxane as solvent [108]. In this case, the product was obtained with a very low yield of 10% (Table 3, entry 13). This result emphasizes the importance of the use of an IL as a solvent, not only for its green aspect, in particular for its very low vapour pressure and for the possibility of its recycling, but also for its ability to stabilize ionic or polar intermediates, improving the reaction efficiency.

Hydration of different alkynes catalysed by BF3·Et2O in BMIm-BF4

Subsequently, the developed method was extended to different alkynes, both internal and terminal. The best results for the hydration reaction of each studied alkyne, catalysed by BF3·Et2O in BMIm-BF4, are summarized in Table 4, while all the experiments carried out are reported in Table S1 in Supporting Information File 1. In order to avoid the use of a large excess of the Lewis acid, the conditions reported in entry 9 of Table 1 were chosen as reference for the study of the reactivity of different alkynes.

Table 4: Hydration of different alkynes catalysed by BF3−Et2O in BMIm-BF4a.

[Graphic 4]
Entry Alkyne BF3·Et2Ob Time 2, yieldc 3, yieldc
1d [Graphic 5] 3 18 h [Graphic 6] –
1a 2a, 81%
2 [Graphic 7] 3 5 h [Graphic 8] –
1b 2b, 97%
3 [Graphic 9] 3 5 h [Graphic 10] –
1c 2c, 76%
4 [Graphic 11] 1 1 h [Graphic 12] –
1d 2d, 81%
5 [Graphic 13] 1 1 h [Graphic 14] [Graphic 15]
1e 2e, 61% 3e, 38%
6 [Graphic 16] 1 1 h [Graphic 17] [Graphic 18]
1f 2f, 43% 3f, 56%
7 [Graphic 19] 1 1 h [Graphic 20] [Graphic 21]
1g 2g, 81% 3g, 4%
8 [Graphic 22] 1 1 h [Graphic 23] [Graphic 24]
1h 2h, 47% 3h, 43%
9 [Graphic 25] 1 1 h [Graphic 26] –
1i 2i, 72%
10e [Graphic 27]
1j 		2 f 1 h [Graphic 28] –
11 [Graphic 29] 3 18 h [Graphic 30] –
1k 2k, 79%
12 [Graphic 31] 2 18 h [Graphic 32] –
1l 2l, 62%
13 [Graphic 33] 5 18 h [Graphic 34] –
1m 2m, 65%
14 [Graphic 35] 5 18 h [Graphic 36] –
1n 2n, 47%

aAll the reactions were carried out at 80 °C in BMIm-BF4, kept under vacuum for 16 h before each use, with 0.3 mmol of alkyne 1 and 0.3 mmol of H2O; bequivalents with respect to 1; cyields calculated from 1H NMR spectra of the crude extracts; dreplicate of the experiment reported in entry 9 of Table 1; e0.6 mmol of H2O were used; fequivalents with respect to one alkyne group of 1j.

For the internal alkyl(aryl)alkynes a regioselective hydration occurred, with the only generation of the corresponding aryl ketones, formed after the attack of water to the pseudobenzylic position, as observed in Lewis acid-assisted Brønsted acid (LBA) catalysis [47-50]. Internal alkynes afforded the corresponding products in good to excellent yields (Table 4, entries 1–3). In particular, the unsymmetrical alkyl(aryl)alkynes 1b and 1c showed a higher reactivity compared to diphenylacetylene (1a), affording the corresponding ketones in high yields after 5 h.

Otherwise, terminal alkynes generally showed higher reactivity compared to internal ones. For all the studied terminal alkynes, only ketone products (Markovnikov) were obtained, excluding the formation of the anti-Markovnikov ones. Hydration of phenylacetylene 1d carried out with 3 equiv of BF3·Et2O for 5 h gave the aldol condensation product 3d (58%) in addition to acetophenone 2d with low yield (32%) (see Table S1, Supporting Information File 1). Assuming that enone 3d is formed from acetophenone, catalysed by the excess Lewis acid present, the reaction was performed in presence of 1 equiv of BF3·Et2O and a reaction time of 1 h (Table 4, entry 4). In this way, the selectivity was improved and only the hydration product 2d was obtained in 81% yield.

For electron-rich terminal alkynes, the corresponding ketones could not be selectively obtained without the aldol condensation products. Considering 4-methylphenylacetylene (1e), the reaction carried out with 3 equiv of BF3·Et2O for 5 h gave only the condensation product 3e (70%, see Table S1, Supporting Information File 1). Reducing the amount of BF3·Et2O to 1 equiv and the reaction time to 1 h (Table 4, entry 5) gave a mixture of ketones 2e and 3e (61% and 38%, respectively). Even reducing the amount of BF3·Et2O to 0.5 equiv did not improve the yield of the hydration product (see Table S1, Supporting Information File 1). The presence of a methyl group in the meta position in 1f decreased the selectivity with respect to formation of the hydration product 2f, favouring the condensation product 3f (Table 4, entry 6). On the other hand, an ortho methyl group in 1g favoured formation of the ketone 2g, with a good yield, probably due to the steric hindrance of the aldol condensation (Table 4, entry 7). As expected, based on the above consideration, 4-ethynyl-1,1'-biphenyl (1h) afforded both hydration and condensation products 2h and 3h in similar amounts (Table 4, entry 8), while the presence of a chlorine in the para position of the phenyl ring allowed to obtain the hydration product 2i with good yield, reducing its reactivity (Table 4, entry 9).

With 1,4-diethynylbenzene (1j) both the products of mono (2j) and bis hydration (2jj) were obtained under all conditions tested (see Table S1, Supporting Information File 1). The highest selectivity for the generation of 2j was achieved with 2 equiv of BF3·Et2O for 1 h (Table 4, entry 10).

Aliphatic alkyne 1k showed a different reactivity compared to the other terminal alkynes. Indeed, in this case the corresponding condensation product was never obtained, while the hydration product 2k was obtained in good yield using 3 equiv of BF3·Et2O and extending the reaction time to 18 h (Table 4, entry 11).

The aliphatic alkyne 1l gave the corresponding hydration product 2l in good yield with 2 equiv of BF3·Et2O and a reaction time of 18 h (Table 4, entry 12).

The following step was to study the reactivity of BF3·Et2O in BMIm-BF4 towards disubstituted alkynes containing a carbonyl group adjacent to the triple bond. This class of substrates, after water addition, yields 1,3-dicarbonyl compounds, which could yield BF2-chelates under our experimental conditions [109]. In order to study their behaviour, we decided to avoid water during an initial work-up, to prevent a possible BF2-chelate hydrolysis, and only ethereal extraction was carried out after the reaction.

When the reaction was carried out on ethyl 3-phenylpropiolate (1m, Table 4, entry 13), the analysis of the ethereal extracts showed the presence of the BF2-chelate. In fact, the following convincing peaks were found in the NMR spectra: a singlet at 6.11 ppm, along with a quartet at 4.68 ppm (1H NMR spectrum), a peak at 83.3 ppm (13C NMR spectrum) and a singlet at −139.1 ppm (19F NMR spectrum) [109]. A simple washing with distilled water gave the corresponding ethyl benzoylacetate (2m). Compared to the other studied alkynes, 1m required a larger excess of BF3·Et2O (5 equiv) to give the corresponding hydration product with a satisfactory yield. Indeed, this behaviour could be explained by the formation of the BF2-chelate, which reduces the amount of BF3 available for catalysis.

A similar behaviour was observed with ethyl 3-(4-chlorophenyl)propiolate (1n), although with lower yield due to the deactivating effect of the chlorine substituent in the para position of the phenyl ring (Table 4, entry 14).

Importantly, for the experiments involving the same alkyne (see Table S1, Supporting Information File 1), the same sample of BMIm-BF4 was effectively reused, up to five times, demonstrating the advantage of using this IL as medium for this reaction.

Hydration of alkynes in electrogenerated BF3/BMIm-BF4 system

Based on previous works, which demonstrated the possibility to electrogenerate BF3 in tetrafluoroborate ILs [100], and to efficiently use it to carry out different Lewis acid catalysed organic reactions [101-103], we investigated the applicability of the electrogenerated BF3/BMIm-BF4 system for the hydration reaction of alkynes. The best results for the hydration reaction of each studied alkyne, catalysed by electrogenerated BF3 in BMIm-BF4, are summarized in Table 5, while all the experiments carried out are reported in Table S2 in the Supporting Information File 1.

Table 5: Hydration of different alkynes catalysed by electrogenerated BF3 in BMIm-BF4.a

[Graphic 37]
Entry Alkyne Electrogenerated BF3 (F/mol)b Time Product 2, yieldc
1 [Graphic 38] 4 18 h [Graphic 39]
1a 2a, 85%
2 [Graphic 40] 4 5 h [Graphic 41]
1b 2b, 84%
3 [Graphic 42] 4 5 h [Graphic 43]
1c 2c, 94%
4 [Graphic 44] 1 1 h [Graphic 45]
1d 2d, 78%
5 [Graphic 46] 1 1 h [Graphic 47]
1e 2e, 84%d
6 [Graphic 48] 1 1 h [Graphic 49]
1f 2f, 91%
7 [Graphic 50] 1 1 h [Graphic 51]
1g 2g, 78%
8 [Graphic 52] 1 1 h [Graphic 53]
1h 2h, 94%
9 [Graphic 54] 2 18 h [Graphic 55]
1i 2i, 79%
10e [Graphic 56]
1j 		4 5 h [Graphic 57]
11 [Graphic 58] 2 18 h [Graphic 59]
1k 2k, 51%
12 [Graphic 60] 4 18 h [Graphic 61]
1l 2l, 23%
13 [Graphic 62] 4f 18 h [Graphic 63]
1m 2m, 58%

aBMIm-BF4, kept under vacuum for 16 h before each use, was electrolyzed (galvanostatic conditions: 10 mA·cm−2) on platinum electrodes (rt, N2) in divided cell configuration. At the end of electrolysis, alkyne 1 (0.3 mmol) and H2O (0.3 mmol) were added to the anolyte. All the reactions were carried out at 80 °C for the time reported in table; bamount of electrogenerated BF3 with respect to starting alkyne, admitting a 100% current efficiency (1 mF = 96.5 C = 1 mmol of BF3); cyields calculated from 1H NMR spectra of the crude extracts; d3e, 9%. e0.6 mmol of H2O were used. fthe electrolysis was carried out in the presence of the alkyne (0.3 mmol) in the anodic compartment. At the end of electrolysis, H2O (0.3 mmol) was added to the anolyte, then the reaction was carried out at 80 °C for the time reported in table.

Regarding internal alkynes, the electrogenerated BF3 (4 F/mol)/BMIm-BF4 system proved to be highly efficient for 1a, 1b and 1c, delivering the corresponding ketones in excellent yields, which were comparable or better than those achieved using BF3·Et2O (Table 5, entries 1–3, and Figure 1).

[1860-5397-19-147-1]

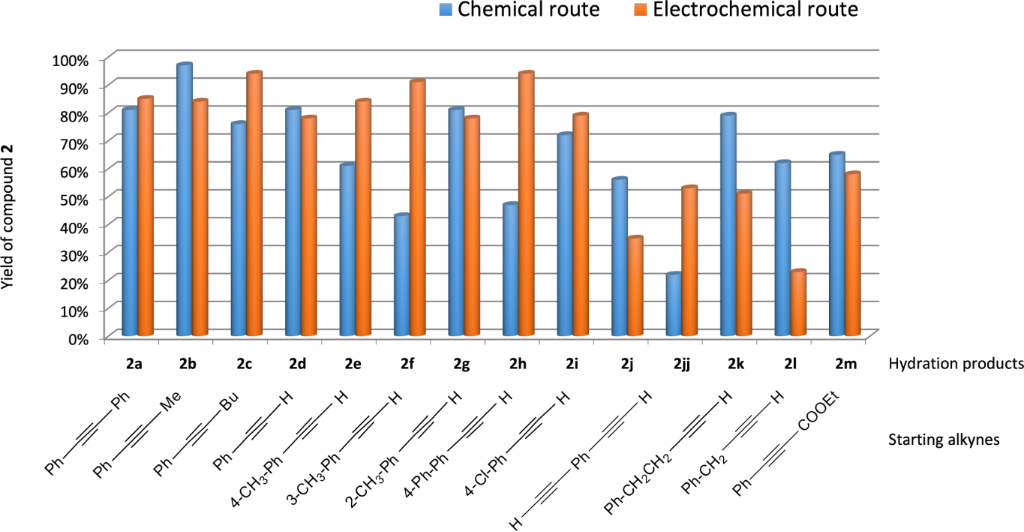

Figure 1: Comparison of the hydration reactions of different alkynes in BMIm-BF4 catalysed by BF3·Et2O (blue) and by electrogenerated BF3 (orange).

In contrast to earlier results, an interesting behaviour was observed with the terminal alkynes. Indeed, the terminal arylalkynes 1d–h afforded the corresponding hydration products selectively in good to excellent yields by exploiting the electrogeneration of BF3 in BMIm-BF4 at 1 F/mol (Table 5, entries 4–8). It is important to remember that with BF3·Et2O these alkynes gave mixtures with the corresponding aldol condensation products, in some cases in considerable amounts (Table 4, entries 5, 6, and 8). Reduction in the amount of BF3·Et2O to 0.5 equiv did not improve the yields of the hydration products (see Table S1, Supporting Information File 1).

Interestingly, the alkynes 1e, 1f and 1h, which in the chemical route provided considerable amounts of the condensation products and moderate yields for the hydration products, with the electrochemical route gave the corresponding hydration products with excellent yields, significantly better compared to those obtained with BF3·Et2O (Table 5, entries 5, 6, 8, and Figure 1). By exploiting the electrochemical generation of BF3, the alkynes 1d and 1g gave the corresponding ketones with similar yields compared to the chemical route (Table 5, entries 4 and 7, and Figure 1). The alkyne 1i gave the ketone 2i with a slightly better yield compared to the chemical route, when increasing the amount of the electrogenerated BF3 to 2 F/mol and the reaction time to 18 h (Table 5, entry 9, and Figure 1).

The application of the electrochemical conditions to 1,4-diethynylbenzene (1j) using 2 F/mol selectively afforded ketone 2j after 1 h, after hydration of one alkyne group, in low yield (39%), with the majority of the starting alkyne being recovered (46%) (see Table S2, Supporting Information File 1). Increasing the amount of electrogenerated BF3 by applying 4 F/mol and extending the reaction time (5 h) reversed the selectivity in favour of the diketone 2jj (Table 5, entry 10), which had not been achieved using BF3·Et2O as a reagent (see Table 4, entry 10).

For the aliphatic alkyne 1k the hydration product 2k was obtained with moderate yield by exploiting the electrogeneration of 2 F/mol of BF3 (Table 5, entry 11). Unfortunately, an increase in the amount of electrogenerated BF3 did not improve the yield of the desired product (see Table S2, Supporting Information File 1).

By exploiting the electrogeneration of 4 F/mol of BF3, with the aliphatic alkyne 1l the corresponding hydration product 2l was obtained with low yield (Table 5, entry 12).

Unfortunately, any attempt to hydrate disubstituted alkynes containing a carbonyl group adjacent to the triple bond (1m, 1n) with electrogenerated BF3, according to the procedure adopted for the other alkynes, failed, yielding only starting material.

We then tried to electrogenerate BF3 in BMIm-BF4, directly in the presence of the alkyne 1m or 1n in the anodic compartment. Surprisingly, for alkyne 1m this approach has allowed to obtain the hydration product 2m, with a yield (58%) slightly lower than that observed in the chemical route (Table 5, entry 13, and Figure 1). Otherwise, with the alkyne 1n, also in this way, the hydration product was not obtained. In addition to the different reactivity, due to the presence or not of chlorine in the para position of the phenyl group, the different physical state (liquid for 1m vs solid for 1n) and the possible different solubility in BMIm-BF4 at room temperature (according to the electrolysis conditions) may have affected the results obtained with these substrates. Further studies will be necessary to clarify the behaviour of alkynes containing a carbonyl group adjacent to the triple bond.

After work-up, the electrolysed IL was placed under vacuum to eliminate diethyl ether traces and then analysed by NMR to check for BMIm-F presence, whereas the fluoride ion could originate from IL decomposition in the presence of water or from the evolution of electrogenerated F2. However, the 19F NMR spectrum showed no detectable peak around −122 ppm, reported in the literature for BMIm-F [110]. The only difference between IL 19F NMR spectra before and after electrolysis is a peak at ‒148.7 ppm (referred to BF4− at −150.6 ppm), possibly due to BF3OH− or B2F7− [111,112] (see Supporting Information File 1, Figure S1a vs f and b, c). This last hypothesis is corroborated by the 19F NMR analysis of BMIm-BF4 after anodic oxidation in a divided cell, which shows a peak at −147.3 ppm (besides the peak at −150.6 due to BF4−) (see Supporting Information File 1, Figure S1e), which is replaced by a peak at −144.0 ppm (referred to −150.6 ppm for BF4−) when the electrolysis is carried out in an undivided cell (see Supporting Information File 1, Figure S1d). In this last case, in fact, the NHC-BF3 adduct is formed between anodically electrogenerated BF3 and cathodically electrogenerated NHC [103].

Evaluation of the current efficiency in the electrogeneration of BF3 in BMIm-BF4

In order to have an idea of the current efficiency in the electrogeneration of BF3 in BMIm-BF4 (a monoelectronic process, Scheme 1), we tried to quantitatively capture the electrogenerated BF3 with a tertiary base just at the end of the electrolysis.

[1860-5397-19-147-i1]

Scheme 1: Anodic oxidation of tetrafluoroborate anion.

By a comparison between the 13C NMR peaks of the base and the base–BF3 adduct, we should obtain an approximate current yield. Our first choice was N,N-diisopropylethylamine (DIPEA), as the DIPEA-BF3 adduct is reported in the literature and fully characterized by NMR in CDCl3 [113]. To be consistent with literature data, the BF4− peak in neat BMIm-BF4 was set at −150.6 ppm in 19F NMR spectrum [112].

We thus carried out the anodic oxidation of pure BMIm-BF4 (divided cell, galvanostatic conditions) and stopped the electrolysis after 60 C (corresponding to 0.6 mmol of electrons). At the end of the electrolysis, 0.6 mmol of DIPEA were added to the anolyte and the mixture was kept under stirring at room temperature for 30 min. Then, the neat anolyte was analysed by NMR (19F and 13C). The 19F NMR spectrum showed a new peak at −148.7 ppm and, to our great astonishment, we found only one set of signals in the 13C NMR spectrum (55.0, 42.8, 17.4, 16.0, 12.2), apart from those of the IL cation (see Supporting Information File 1, Figure S2). These signals are quite different from those of DIPEA in CDCl3 (48.5, 39.1, 20.6, 17.1) [114] (the 13C NMR spectrum of DIPEA in pure BMIm-BF4 is not reported), but quite similar to the 13C NMR spectrum of DIPEA-BF3 adduct in CDCl3 (53.8, 41.6, 19.5, 18.9, 9.9), inducing us to think to have the DIPEA-BF3 adduct in the solution. To confirm this assumption, we prepared a DIPEA solution in BMIm-BF4 to record the 13C NMR spectrum, but unfortunately DIPEA is not soluble enough in BMIm-BF4 to obtain a decent spectrum. Therefore, while confirming the presence of the adduct, we could not quantify it.

The next choice was DBU (1,8-diazabicyclo[5,4,0]undec-7-ene). The DBU-BF3 adduct is reported to be very stable in water and in air and not subjected to hydrolysis [115]. The DBU solubility in BMIm-BF4 was confirmed by NMR analysis (amidine carbon atom at 161.6 ppm in BMIm-BF4, taking as internal reference the imidazolium C2 at 136.4 ppm) [116]. The addition of an excess of BF3·Et2O to the solution of DBU in IL shifted the DBU amidine signal to 166.0 ppm, confirming the rapid formation of the adduct (see Supporting Information File 1, Figure S5c). Moreover, a new small peak at −146.1 ppm appeared in the 19F NMR spectrum [115], in addition to the peaks at −150.6 ppm (BF4− signal), at −148.7 ppm (BF3OH‒) and −153.6 ppm (BF3·Et2O) (see Supporting Information File 1, Figures S3 and S4).

We thus carried out the anodic oxidation of pure BMIm-BF4 (divided cell, galvanostatic conditions) and stopped the electrolysis after 60 C (corresponding to 0.6 mmol of electrons). At the end of the electrolysis, 0.6 mmol of DBU were added to the anolyte and the mixture was kept under stirring at room temperature for 30 min. Then the neat anolyte was analysed by NMR (19F and 13C). A peak at 166.0 ppm in the 13C NMR spectrum appeared and no traces of starting DBU (peak at 161 ppm) were evidenced (see Supporting Information File 1, Figure S5a, b and d). As regards the 19F NMR spectrum, a new peak at −148.6 ppm appeared, consistent with the formation of B2F7− or with the DBU-BF3 adduct (a direct comparison with literature data is not possible in this case, as the NMR data reported in previous papers were obtained in molecular solvents, while we carried out the experiments in pure ionic liquid) [115].

To our surprise, the addition of additional DBU to this solution did not show the signal of DBU in the 13C NMR spectrum (161 ppm), but increased the 166 ppm peak intensity (due to the DBU adduct) (see Supporting Information File 1, Figure S5e). We have no explanation for this behaviour, but the possibility of the coordination of more than one DBU molecule could be a hypothesis. In this regard, Hartman and co-workers reported the formation of BFxDBUy positively charged adducts (y from 1 to 3) [115]. Although we cannot exclude that the signal is due to the [DBU-H]+, the 13C NMR of the reaction mixture did not highlight the presence of the NHC derived from the IL deprotonation.

Conclusion

In conclusion, in this work we demonstrated the possibility to carry out the hydration of alkynes in imidazolium ILs, as alternative solvents until now still little explored for this reaction, employing the Lewis acid BF3 as catalyst. The catalyst was used both as BF3·Et2O and as BF3 directly electrogenerated in the IL. Among the investigated ILs, BMIm-BF4 provided the best reaction yields and is preferred on the basis of cost. The results obtained with BF3·Et2O were compared with those achieved using BF3 electrogenerated in BMIm-BF4, demonstrating the possibility of employing a less harmful system to obtain the products of alkyne hydration with analogous or improved yields. On the basis of the results obtained with the studied substrates, the electrochemical route would appear to be more advantageous for the more reactive terminal arylalkynes, in terms of selectivity and, in some cases, of yield.

The possibility of recycling the ionic liquid for subsequent reactions was successfully demonstrated, confirming the advantage of using BMIm-BF4 as a green solvent for this reaction.

Together, these results demonstrate the promise of BMIm-BF4/BF3 (either with electrogenerated BF3 or with BF3·Et2O) as an efficient and less harmful alternative to expensive metal/ligand catalysts, while avoiding conventional toxic and volatile solvents commonly used for the hydration of alkynes.

Experimental

General Information

All chemicals were commercial (Fluorochem, Aldrich) and used without further purification. Ionic liquids (ILs, Iolitec) were kept under vacuum (7 mbar) under stirring at 40 °C for 16 h before use. NMR spectra were recorded at ambient temperature on Bruker Avance spectrometer operating at 400 MHz (1H NMR) and 100 MHz (13C{1H} NMR) or on a Spinsolve 60 spectrometer operating at 62.5 MHz (1H NMR), 15.7 MHz (13C{1H} NMR) and 58.8 MHz (19F NMR) using the solvent as internal standard. All the NMR spectra of neat IL were performed on Spinsolve 60 spectrometer. The chemical shifts (δ) are given in ppm relative to TMS. Flash chromatography was carried out using silica (Merck; 40–63 μm particle size).

General procedures

General procedure for the hydration of alkynes catalysed by BF3·Et2O in ILs

In a 10 mL vial, 1 mL of the IL, a magnetic stirring bar and the amount of alkyne, water and BF3·Et2O reported in Tables 1, 3, and 4 were added. The vial was sealed with a screw cap and the mixture was stirred at 80 °C in an oil bath. After the time indicated in Tables 1, 3, and 4, the mixture was extracted with diethyl ether (3 × 8 mL). The combined organic phase was washed with water (3 × 20 mL), dried on Na2SO4, filtered and then the solvent was removed under reduced pressure. The crude was analysed by 1H NMR and 13C NMR and then the products were purified by column chromatography.

General procedure for the electrochemical generation of BF3 in BMIm-BF4

All the experiments were carried out in a home-made divided glass cell separated through a porous glass plug; Pt spirals (apparent area 0.8 cm2) were used as anode and cathode. 2.0 mL of BMIm-BF4 and the magnetic stirring bar were put in the anodic compartment (test tube, h = 10.5 cm, d = 1.7 cm), and 1.0 mL of the same IL in the cathodic one. Electrolyses were performed at constant current (I = 10 mA·cm−2), under stirring at room temperature, under nitrogen atmosphere, using an Amel Model 552 potentiostat equipped with an Amel Model 731 integrator. When the desired Coulombs (reported in Table 5) had passed through the electrolysis cell, the current was switched off, the cathodic compartment removed and the amounts of alkyne and water reported in Table 5 were added to the anolyte. The test tube was sealed with a rubber cap and the mixture was stirred at 80 °C in an oil bath. After the time indicated in Table 5, the mixture was extracted with diethyl ether (3 × 8 mL). The combined organic phase was washed with water (3 × 20 mL), dried on Na2SO4, filtered and then the solvent was removed under reduced pressure. The crude was analysed by 1H NMR and 13C NMR and then the products were purified by column chromatography.

Procedure for the evaluation of the current efficiency in the electrogeneration of BF3 in BMIm-BF4

Electrolyses were performed as reported above and stopped after the passage of 60 C. At the end of the electrolysis the cathodic compartment was removed and 0.6 mmol of the appropriate tertiary amine (DIPEA or DBU) were added to the anolyte. The mixture was stirred at room temperature under inert atmosphere (N2) for 30 min. Then the neat IL was analysed by 13C NMR and 19F NMR on Spinsolve 60 spectrometer. For the experiment with DBU, after the analysis of the sample thus prepared, another aliquot of DBU was added directly into the NMR test tube (about 0.1 mmol of DBU for 0.5 mL of IL).

The reference DIPEA/BMIm-BF4 or DBU/BMIm-BF4 solutions were prepared by mixing 0.1 mmol of the appropriate base with 0.5 mL of BMim-BF4.

Recycling of ILs

The IL sample already used was recycled after the elimination of diethyl ether and water, by keeping the IL under vacuum (7 mbar) under stirring at 40 °C for 16 h.

Procedure for the hydration of diphenylacetylene in dioxane

Water (0.3 mmol) and BF3·Et2O (0.9 mmol) were added to a solution of diphenylacetylene (1a, 0.3 mmol) in dioxane (2 mL) in a 5 mL flask. The reaction mixture was stirred at 80 °C in an oil bath for 18 h. Then, the reaction mixture was diluted with diethyl ether (20 mL) and washed with water (3 × 20 mL). The organic phase was dried on Na2SO4, filtered and then the solvent was removed under reduced pressure. The crude was analysed by 1H NMR and 13C NMR.

Supporting Information

Integral tables of the experiments for the hydration of different alkynes catalysed by BF3·Et2O or by electrogenerated BF3 in BMIm-BF4. 19F and 13C NMR spectra for the evaluation of the current efficiency in the electrogeneration of BF3 in BMIm-BF4. Analytical data, 1H and 13C NMR spectra of synthetized compounds.

Supporting Information File 1: Additional experimental data.
Format: PDF Size: 3.3 MB Download

Acknowledgements

The authors thank Marco Di Pilato for his help with the electrochemical experiments.

Funding

Sapienza University, Project number RM12117A339284EE.

References

  1. Bora, J.; Dutta, M.; Chetia, B. Tetrahedron 2023, 132, 133248. doi:10.1016/j.tet.2023.133248
    Return to citation in text: [1]
  2. Kaur, J.; Saxena, M.; Rishi, N. Bioconjugate Chem. 2021, 32, 1455–1471. doi:10.1021/acs.bioconjchem.1c00247
    Return to citation in text: [1]
  3. Gulevskaya, A. V.; Tonkoglazova, D. I. Adv. Synth. Catal. 2022, 364, 2502–2539. doi:10.1002/adsc.202200513
    Return to citation in text: [1]
  4. Kawamura, S.; Barrio, P.; Fustero, S.; Escorihuela, J.; Han, J.; Soloshonok, V. A.; Sodeoka, M. Adv. Synth. Catal. 2023, 365, 398–462. doi:10.1002/adsc.202201268
    Return to citation in text: [1]
  5. Rammohan, A.; Venkatesh, B. C.; Basha, N. M.; Zyryanov, G. V.; Nageswararao, M. Chem. Biol. Drug Des. 2023, 101, 1181–1203. doi:10.1111/cbdd.14148
    Return to citation in text: [1]
  6. Neto, J. S. S.; Zeni, G. Asian J. Org. Chem. 2021, 10, 1282–1318. doi:10.1002/ajoc.202100013
    Return to citation in text: [1]
  7. Wang, S. R. Chem. – Asian J. 2023, 18, e202300244. doi:10.1002/asia.202300244
    Return to citation in text: [1]
  8. Banjare, S. K.; Mahulkar, P. S.; Nanda, T.; Pati, B. V.; Najiar, L. O.; Ravikumar, P. C. Chem. Commun. 2022, 58, 10262–10289. doi:10.1039/d2cc03294e
    Return to citation in text: [1]
  9. Bortolami, M.; Petrucci, R.; Rocco, D.; Scarano, V.; Chiarotto, I. ChemElectroChem 2021, 8, 3604–3613. doi:10.1002/celc.202100497
    Return to citation in text: [1]
  10. Kutscheroff, M. Ber. Dtsch. Chem. Ges. 1884, 17, 13–29. doi:10.1002/cber.18840170105
    Return to citation in text: [1]
  11. Hintermann, L.; Labonne, A. Synthesis 2007, 1121–1150. doi:10.1055/s-2007-966002
    Return to citation in text: [1]
  12. Salvio, R.; Bassetti, M. Inorg. Chim. Acta 2021, 522, 120288. doi:10.1016/j.ica.2021.120288
    Return to citation in text: [1]
  13. Gao, P.; Szostak, M. Coord. Chem. Rev. 2023, 485, 215110. doi:10.1016/j.ccr.2023.215110
    Return to citation in text: [1]
  14. Mariconda, A.; Sirignano, M.; Troiano, R.; Russo, S.; Longo, P. Catalysts 2022, 12, 836. doi:10.3390/catal12080836
    Return to citation in text: [1]
  15. Zuccaccia, D.; Del Zotto, A.; Baratta, W. Coord. Chem. Rev. 2019, 396, 103–116. doi:10.1016/j.ccr.2019.06.007
    Return to citation in text: [1]
  16. Segato, J.; Del Zotto, A.; Belpassi, L.; Belanzoni, P.; Zuccaccia, D. Catal. Sci. Technol. 2020, 10, 7757–7767. doi:10.1039/d0cy01343a
    Return to citation in text: [1]
  17. Goodwin, J. A.; Aponick, A. Chem. Commun. 2015, 51, 8730–8741. doi:10.1039/c5cc00120j
    Return to citation in text: [1]
  18. Gatto, M.; Del Zotto, A.; Segato, J.; Zuccaccia, D. Organometallics 2018, 37, 4685–4691. doi:10.1021/acs.organomet.8b00689
    Return to citation in text: [1]
  19. Ebule, R. E.; Malhotra, D.; Hammond, G. B.; Xu, B. Adv. Synth. Catal. 2016, 358, 1478–1481. doi:10.1002/adsc.201501079
    Return to citation in text: [1]
  20. Xu, Y.; Hu, X.; Shao, J.; Yang, G.; Wu, Y.; Zhang, Z. Green Chem. 2015, 17, 532–537. doi:10.1039/c4gc01322k
    Return to citation in text: [1]
  21. Nun, P.; Ramón, R. S.; Gaillard, S.; Nolan, S. P. J. Organomet. Chem. 2011, 696, 7–11. doi:10.1016/j.jorganchem.2010.08.052
    Return to citation in text: [1]
  22. Voloshkin, V. A.; Saab, M.; Van Hecke, K.; Lau, S. H.; Carrow, B. P.; Nolan, S. P. Dalton Trans. 2020, 49, 13872–13879. doi:10.1039/d0dt03330h
    Return to citation in text: [1]
  23. Singh, S.; Dobereiner, G. E. Adv. Synth. Catal. 2022, 364, 3551–3558. doi:10.1002/adsc.202200812
    Return to citation in text: [1]
  24. Arai, H.; Yoshida, T.; Nagashima, E.; Hatayama, A.; Horie, S.; Matsunaga, S.; Nomiya, K. Organometallics 2016, 35, 1658–1666. doi:10.1021/acs.organomet.6b00114
    Return to citation in text: [1]
  25. Saha, R.; Mukherjee, A.; Bhattacharya, S. New J. Chem. 2022, 46, 9098–9110. doi:10.1039/d1nj04736a
    Return to citation in text: [1]
  26. Mainkar, P.; Chippala, V.; Chegondi, R.; Chandrasekhar, S. Synlett 2016, 27, 1969–1972. doi:10.1055/s-0035-1561864
    Return to citation in text: [1]
  27. Sha, Y.; Bai, W.; Zhou, Y.; Jiang, J.; Ju, X. ChemistrySelect 2020, 5, 1994–1996. doi:10.1002/slct.202000498
    Return to citation in text: [1]
  28. Tyagi, D.; Rai, R. K.; Mobin, S. M.; Singh, S. K. Asian J. Org. Chem. 2017, 6, 1647–1658. doi:10.1002/ajoc.201700396
    Return to citation in text: [1]
  29. Boeck, F.; Kribber, T.; Xiao, L.; Hintermann, L. J. Am. Chem. Soc. 2011, 133, 8138–8141. doi:10.1021/ja2026823
    Return to citation in text: [1]
  30. Luo, D.; Li, Y.; Pullarkat, S. A.; Cockle, K. E.; Leung, P.-H. Organometallics 2010, 29, 893–903. doi:10.1021/om900958p
    Return to citation in text: [1]
  31. Kassie, A. A.; Wade, C. R. Organometallics 2020, 39, 2214–2221. doi:10.1021/acs.organomet.0c00164
    Return to citation in text: [1]
  32. Zhang, Z.; Wu, L.; Liao, J.; Wu, W.; Jiang, H.; Li, J.; Li, J. J. Org. Chem. 2015, 80, 7594–7603. doi:10.1021/acs.joc.5b01178
    Return to citation in text: [1]
  33. Kusakabe, T.; Ito, Y.; Kamimura, M.; Shirai, T.; Takahashi, K.; Mochida, T.; Kato, K. Asian J. Org. Chem. 2017, 6, 1086–1090. doi:10.1002/ajoc.201700138
    Return to citation in text: [1]
  34. Lin, H.-P.; Ibrahim, N.; Provot, O.; Alami, M.; Hamze, A. RSC Adv. 2018, 8, 11536–11542. doi:10.1039/c8ra00564h
    Return to citation in text: [1]
  35. Carlisle, S.; Matta, A.; Valles, H.; Bracken, J. B.; Miranda, M.; Yoo, J.; Hahn, C. Organometallics 2011, 30, 6446–6457. doi:10.1021/om2007908
    Return to citation in text: [1]
  36. Bassetti, M.; Ciceri, S.; Lancia, F.; Pasquini, C. Tetrahedron Lett. 2014, 55, 1608–1612. doi:10.1016/j.tetlet.2014.01.083
    Return to citation in text: [1]
  37. Wu, X.-F.; Bezier, D.; Darcel, C. Adv. Synth. Catal. 2009, 351, 367–370. doi:10.1002/adsc.200800666
    Return to citation in text: [1]
  38. Mei, Q.; Liu, H.; Hou, M.; Liu, H.; Han, B. New J. Chem. 2017, 41, 6290–6295. doi:10.1039/c7nj00486a
    Return to citation in text: [1]
  39. Niu, T.-f.; Jiang, D.-y.; Li, S.-y.; Shu, X.-g.; Li, H.; Zhang, A.-l.; Xu, J.-y.; Ni, B.-q. Tetrahedron Lett. 2017, 58, 1156–1159. doi:10.1016/j.tetlet.2017.02.004
    Return to citation in text: [1]
  40. Zou, H.; He, W.; Dong, Q.; Wang, R.; Yi, N.; Jiang, J.; Pen, D.; He, W. Eur. J. Org. Chem. 2016, 116–121. doi:10.1002/ejoc.201501198
    Return to citation in text: [1]
  41. Hassam, M.; Li, W.-S. Tetrahedron 2015, 71, 2719–2723. doi:10.1016/j.tet.2015.03.034
    Return to citation in text: [1]
  42. Xie, Y.; Wang, J.; Wang, Y.; Han, S.; Yu, H. ChemCatChem 2021, 13, 4985–4989. doi:10.1002/cctc.202101180
    Return to citation in text: [1]
  43. Li, H.; Chen, J.; Liu, J.; Li, C.; Liu, L.; Yang, Q. ChemNanoMat 2022, 8, e202100386. doi:10.1002/cnma.202100386
    Return to citation in text: [1]
  44. Kang, S.-M.; Han, S.-S.; Zhu, Y.-Y.; Wu, Z.-Q. ACS Catal. 2021, 11, 13838–13847. doi:10.1021/acscatal.1c04062
    Return to citation in text: [1]
  45. Kaiser, D.; Veiros, L. F.; Maulide, N. Chem. – Eur. J. 2016, 22, 4727–4732. doi:10.1002/chem.201600432
    Return to citation in text: [1]
  46. Liu, H.; Wei, Y.; Cai, C. Synlett 2016, 27, 2378–2383. doi:10.1055/s-0035-1562779
    Return to citation in text: [1]
  47. Antenucci, A.; Flamini, P.; Fornaiolo, M. V.; Di Silvio, S.; Mazzetti, S.; Mencarelli, P.; Salvio, R.; Bassetti, M. Adv. Synth. Catal. 2019, 361, 4517–4526. doi:10.1002/adsc.201900633
    Return to citation in text: [1] [2]
  48. Cabrero‐Antonino, J. R.; Leyva‐Pérez, A.; Corma, A. Chem. – Eur. J. 2012, 18, 11107–11114. doi:10.1002/chem.201200580
    Return to citation in text: [1] [2]
  49. Liang, S.; Hammond, G. B.; Xu, B. Chem. Commun. 2015, 51, 903–906. doi:10.1039/c4cc08938c
    Return to citation in text: [1] [2]
  50. Oss, G.; Ho, J.; Nguyen, T. V. Eur. J. Org. Chem. 2018, 3974–3981. doi:10.1002/ejoc.201800579
    Return to citation in text: [1] [2]
  51. Gao, Q.; Li, S.; Pan, Y.; Xu, Y.; Wang, H. Tetrahedron 2013, 69, 3775–3781. doi:10.1016/j.tet.2013.03.079
    Return to citation in text: [1]
  52. Rebacz, N. A.; Savage, P. E. Ind. Eng. Chem. Res. 2010, 49, 535–540. doi:10.1021/ie9017513
    Return to citation in text: [1]
  53. Zeng, M.; Huang, R.-X.; Li, W.-Y.; Liu, X.-W.; He, F.-L.; Zhang, Y.-Y.; Xiao, F. Tetrahedron 2016, 72, 3818–3822. doi:10.1016/j.tet.2016.04.049
    Return to citation in text: [1]
  54. Liu, W.; Wang, H.; Li, C.-J. Org. Lett. 2016, 18, 2184–2187. doi:10.1021/acs.orglett.6b00801
    Return to citation in text: [1]
  55. Gastaldi, C.; Taviot-Guého, C.; Guérard-Hélaine, C.; Forano, C. Appl. Clay Sci. 2023, 238, 106931. doi:10.1016/j.clay.2023.106931
    Return to citation in text: [1]
  56. Ventura-Espinosa, D.; Martín, S.; García, H.; Mata, J. A. J. Catal. 2021, 394, 113–120. doi:10.1016/j.jcat.2020.12.027
    Return to citation in text: [1]
  57. De Canck, E.; Nahra, F.; Bevernaege, K.; Vanden Broeck, S.; Ouwehand, J.; Maes, D.; Nolan, S. P.; Van Der Voort, P. ChemPhysChem 2018, 19, 430–436. doi:10.1002/cphc.201701102
    Return to citation in text: [1]
  58. Öztürk, B. Ö.; Çetinel, B.; Şehitoğlu, S. K. Appl. Organomet. Chem. 2020, 34, e5686. doi:10.1002/aoc.5686
    Return to citation in text: [1]
  59. Valverde-González, A.; Marchal, G.; Maya, E. M.; Iglesias, M. Catal. Sci. Technol. 2019, 9, 4552–4560. doi:10.1039/c9cy00776h
    Return to citation in text: [1]
  60. Cirujano, F. G.; López-Maya, E.; Navarro, J. A. R.; De Vos, D. E. Top. Catal. 2018, 61, 1414–1423. doi:10.1007/s11244-018-1039-6
    Return to citation in text: [1]
  61. Shen, L.; Han, X.; Dong, B.; Yang, Y.; Yang, J.; Li, F. ACS Appl. Polym. Mater. 2022, 4, 7408–7416. doi:10.1021/acsapm.2c01167
    Return to citation in text: [1]
  62. Srivastava, A. K.; Khandaka, H.; Joshi, R. K. SynOpen 2023, 07, 121–129. doi:10.1055/a-2025-2759
    Return to citation in text: [1]
  63. Ali, M.; Srivastava, A. K.; Upadhyay, N. S.; Satrawala, N.; Joshi, R. K. Organics 2023, 4, 251–264. doi:10.3390/org4020020
    Return to citation in text: [1]
  64. Sultana Poly, S.; Hakim Siddiki, S. M. A.; Touchy, A. S.; Yasumura, S.; Toyao, T.; Maeno, Z.; Shimizu, K.-i. J. Catal. 2018, 368, 145–154. doi:10.1016/j.jcat.2018.10.004
    Return to citation in text: [1]
  65. Lei, Y.; Zhang, M.; Li, Q.; Xia, Y.; Leng, G. Polymers (Basel, Switz.) 2019, 11, 2091. doi:10.3390/polym11122091
    Return to citation in text: [1]
  66. Rathnayake, D.; Perera, I.; Shirazi-Amin, A.; Kerns, P.; Dissanayake, S.; Suib, S. L. ACS Appl. Mater. Interfaces 2020, 12, 47389–47396. doi:10.1021/acsami.0c10757
    Return to citation in text: [1]
  67. Liu, Y.; Wang, B.; Kang, L.; Stamatopoulos, A.; Gu, H.; Wang, F. R. Chem. Mater. 2020, 32, 4375–4382. doi:10.1021/acs.chemmater.0c01763
    Return to citation in text: [1]
  68. Chen, J.; Zhang, J.; Zhu, D.; Li, T. Gold Bull. 2019, 52, 19–26. doi:10.1007/s13404-018-0249-9
    Return to citation in text: [1]
  69. Trentin, F.; Chapman, A. M.; Scarso, A.; Sgarbossa, P.; Michelin, R. A.; Strukul, G.; Wass, D. F. Adv. Synth. Catal. 2012, 354, 1095–1104. doi:10.1002/adsc.201100326
    Return to citation in text: [1]
  70. Deng, T.; Wang, C.-Z. Catal. Sci. Technol. 2016, 6, 7029–7032. doi:10.1039/c6cy01629d
    Return to citation in text: [1]
  71. Nairoukh, Z.; Avnir, D.; Blum, J. ChemSusChem 2013, 6, 430–432. doi:10.1002/cssc.201200838
    Return to citation in text: [1]
  72. Dandia, A.; Saini, P.; Chithra, M. J.; Vennapusa, S. R.; Parewa, V. J. Mol. Liq. 2021, 331, 115758. doi:10.1016/j.molliq.2021.115758
    Return to citation in text: [1]
  73. Zhao, J.; Yuan, H.; Chen, R.; Chen, H.; Zhang, Y. Asian J. Org. Chem. 2022, 11, e202100681. doi:10.1002/ajoc.202100681
    Return to citation in text: [1]
  74. Mallakpour, S.; Dinari, M. Ionic liquids as green solvents: progress and prospects. Green Solvents II: properties and applications of ionic liquids; Springer: Dordrecht, Netherlands, 2012; pp 1–32. doi:10.1007/978-94-007-2891-2_1
    Return to citation in text: [1]
  75. Silva, W.; Zanatta, M.; Ferreira, A. S.; Corvo, M. C.; Cabrita, E. J. Int. J. Mol. Sci. 2020, 21, 7745. doi:10.3390/ijms21207745
    Return to citation in text: [1]
  76. Vekariya, R. L. J. Mol. Liq. 2017, 227, 44–60. doi:10.1016/j.molliq.2016.11.123
    Return to citation in text: [1]
  77. Dong, K.; Liu, X.; Dong, H.; Zhang, X.; Zhang, S. Chem. Rev. 2017, 117, 6636–6695. doi:10.1021/acs.chemrev.6b00776
    Return to citation in text: [1]
  78. Xu, C.; Cheng, Z. Processes 2021, 9, 337. doi:10.3390/pr9020337
    Return to citation in text: [1]
  79. Sowmiah, S.; Srinivasadesikan, V.; Tseng, M.-C.; Chu, Y.-H. Molecules 2009, 14, 3780–3813. doi:10.3390/molecules14093780
    Return to citation in text: [1]
  80. Wang, B.; Qin, L.; Mu, T.; Xue, Z.; Gao, G. Chem. Rev. 2017, 117, 7113–7131. doi:10.1021/acs.chemrev.6b00594
    Return to citation in text: [1]
  81. Chiappe, C.; Pieraccini, D. J. Phys. Org. Chem. 2005, 18, 275–297. doi:10.1002/poc.863
    Return to citation in text: [1]
  82. Keaveney, S. T.; Haines, R. S.; Harper, J. B. Pure Appl. Chem. 2017, 89, 745–757. doi:10.1515/pac-2016-1008
    Return to citation in text: [1]
  83. Pandolfi, F.; Chiarotto, I.; Mattiello, L.; Petrucci, R.; Feroci, M. ChemistrySelect 2019, 4, 12871–12874. doi:10.1002/slct.201902841
    Return to citation in text: [1]
  84. Wong, W.-L.; Ho, K.-P.; Lee, L. Y. S.; Lam, K.-M.; Zhou, Z.-Y.; Chan, T. H.; Wong, K.-Y. ACS Catal. 2011, 1, 116–119. doi:10.1021/cs100016h
    Return to citation in text: [1]
  85. Kore, R.; Srivastava, R. Tetrahedron Lett. 2012, 53, 3245–3249. doi:10.1016/j.tetlet.2012.04.066
    Return to citation in text: [1]
  86. Kore, R.; Kumar, T. J. D.; Srivastava, R. J. Mol. Catal. A: Chem. 2012, 360, 61–70. doi:10.1016/j.molcata.2012.04.010
    Return to citation in text: [1]
  87. Chen, X.; Ye, X.; Liang, W.-Y.; Zhou, Q.; Vo-Thanh, G.; Liu, Y. Mol. Catal. 2018, 448, 171–176. doi:10.1016/j.mcat.2018.01.035
    Return to citation in text: [1]
  88. Tao, D.-J.; Liu, F.; Wang, L.; Jiang, L. Appl. Catal., A 2018, 564, 56–63. doi:10.1016/j.apcata.2018.07.018
    Return to citation in text: [1]
  89. Chen, B.; Wang, M.; Wang, X.; Zhao, Q.; Wang, Y.; Gao, G. Polym. Chem. 2021, 12, 2731–2742. doi:10.1039/d1py00377a
    Return to citation in text: [1]
  90. Banerjee, B. ChemistrySelect 2017, 2, 8362–8376. doi:10.1002/slct.201701700
    Return to citation in text: [1]
  91. Gauchot, V.; Gravel, J.; Vidal, M.; Charbonneau, M.; Kairouz, V.; Schmitzer, A. Synlett 2015, 26, 2763–2779. doi:10.1055/s-0035-1560182
    Return to citation in text: [1]
  92. Tiago, G. A. O.; Matias, I. A. S.; Ribeiro, A. P. C.; Martins, L. M. D. R. S. Molecules 2020, 25, 5812. doi:10.3390/molecules25245812
    Return to citation in text: [1]
  93. Kathiresan, M.; Velayutham, D. Chem. Commun. 2015, 51, 17499–17516. doi:10.1039/c5cc06961k
    Return to citation in text: [1]
  94. Feroci, M.; Chiarotto, I.; Inesi, A. Curr. Org. Chem. 2013, 17, 204–219. doi:10.2174/1385272811317030003
    Return to citation in text: [1]
  95. Feroci, M.; Chiarotto, I.; D’Anna, F.; Forte, G.; Noto, R.; Inesi, A. Electrochim. Acta 2015, 153, 122–129. doi:10.1016/j.electacta.2014.11.135
    Return to citation in text: [1]
  96. Rocco, D.; Folgueiras-Amador, A. A.; Brown, R. C. D.; Feroci, M. Beilstein J. Org. Chem. 2022, 18, 979–990. doi:10.3762/bjoc.18.98
    Return to citation in text: [1]
  97. Vetica, F.; Bortolami, M.; Petrucci, R.; Rocco, D.; Feroci, M. Chem. Rec. 2021, 21, 2130–2147. doi:10.1002/tcr.202000178
    Return to citation in text: [1]
  98. Feroci, M.; Chiarotto, I.; D'Anna, F.; Gala, F.; Noto, R.; Ornano, L.; Zollo, G.; Inesi, A. ChemElectroChem 2016, 3, 1133–1141. doi:10.1002/celc.201600187
    Return to citation in text: [1]
  99. Canal, J. P.; Ramnial, T.; Dickie, D. A.; Clyburne, J. A. C. Chem. Commun. 2006, 1809–1818. doi:10.1039/b512462j
    Return to citation in text: [1]
  100. Xiao, L.; Johnson, K. E. J. Electrochem. Soc. 2003, 150, E307. doi:10.1149/1.1568740
    Return to citation in text: [1] [2]
  101. Palombi, L. Electrochim. Acta 2011, 56, 7442–7445. doi:10.1016/j.electacta.2011.07.006
    Return to citation in text: [1] [2]
  102. Bortolami, M.; Mattiello, L.; Scarano, V.; Vetica, F.; Feroci, M. J. Org. Chem. 2021, 86, 16151–16157. doi:10.1021/acs.joc.1c00932
    Return to citation in text: [1] [2]
  103. Bortolami, M.; Magboo, F. J. P.; Petrucci, R.; Vetica, F.; Zollo, G.; Feroci, M. J. Electrochem. Soc. 2021, 168, 115501. doi:10.1149/1945-7111/ac39e2
    Return to citation in text: [1] [2] [3] [4]
  104. Li, Y.; Thiemann, T.; Sawada, T.; Mataka, S.; Tashiro, M. J. Org. Chem. 1997, 62, 7926–7936. doi:10.1021/jo961985z
    Return to citation in text: [1]
  105. Freire, M. G.; Neves, C. M. S. S.; Marrucho, I. M.; Coutinho, J. A. P.; Fernandes, A. M. J. Phys. Chem. A 2010, 114, 3744–3749. doi:10.1021/jp903292n
    Return to citation in text: [1]
  106. Saihara, K.; Yoshimura, Y.; Fujimoto, H.; Shimizu, A. J. Mol. Liq. 2016, 219, 493–496. doi:10.1016/j.molliq.2016.03.036
    Return to citation in text: [1]
  107. Izquierdo, S.; Essafi, S.; del Rosal, I.; Vidossich, P.; Pleixats, R.; Vallribera, A.; Ujaque, G.; Lledós, A.; Shafir, A. J. Am. Chem. Soc. 2016, 138, 12747–12750. doi:10.1021/jacs.6b07999
    Return to citation in text: [1]
  108. Bandgar, B. P.; Sadavarte, V. S.; Uppalla, L. S. Tetrahedron Lett. 2001, 42, 951–953. doi:10.1016/s0040-4039(00)01953-5
    Return to citation in text: [1]
  109. Štefane, B. Org. Lett. 2010, 12, 2900–2903. doi:10.1021/ol100620j
    Return to citation in text: [1] [2]
  110. Wang, G.; Li, Z.; Li, C.; Zhang, S. Green Chem. 2020, 22, 7913–7923. doi:10.1039/d0gc03133j
    Return to citation in text: [1]
  111. Sieland, M.; Schenker, M.; Esser, L.; Kirchner, B.; Smarsly, B. M. ACS Omega 2022, 7, 5350–5365. doi:10.1021/acsomega.1c06534
    Return to citation in text: [1]
  112. Tempel, D. J.; Henderson, P. B.; Brzozowski, J. R.; Pearlstein, R. M.; Cheng, H. J. Am. Chem. Soc. 2008, 130, 400–401. doi:10.1021/ja077233b
    Return to citation in text: [1] [2]
  113. Iashin, V.; Berta, D.; Chernichenko, K.; Nieger, M.; Moslova, K.; Pápai, I.; Repo, T. Chem. – Eur. J. 2020, 26, 13873–13879. doi:10.1002/chem.202001436
    Return to citation in text: [1]
  114. Yoshida, K.; Morimoto, I.; Mitsudo, K.; Tanaka, H. Tetrahedron 2008, 64, 5800–5807. doi:10.1016/j.tet.2008.03.079
    Return to citation in text: [1]
  115. Hartman, J. S.; Yuan, Z.; Fox, A.; Nguyen, A. Can. J. Chem. 1996, 74, 2131–2142. doi:10.1139/v96-242
    Return to citation in text: [1] [2] [3] [4]
  116. Schmitz, P.; Jakelski, R.; Jalkanen, K.; Winter, M.; Bieker, P. Chem. – Eur. J. 2017, 23, 2261–2264. doi:10.1002/chem.201604461
    Return to citation in text: [1]

© 2023 David et al.; licensee Beilstein-Institut.
This is an open access article licensed under the terms of the Beilstein-Institut Open Access License Agreement (https://www.beilstein-journals.org/bjoc/terms), which is identical to the Creative Commons Attribution 4.0 International License (https://creativecommons.org/licenses/by/4.0). The reuse of material under this license requires that the author(s), source and license are credited. Third-party material in this article could be subject to other licenses (typically indicated in the credit line), and in this case, users are required to obtain permission from the license holder to reuse the material.

Other Beilstein-Institut Open Science Activities
Journal Logo
Institut Logo
Preprint Logo
Symposia Logo
