The charge transport properties of dicyanomethylene-functionalised violanthrone derivatives

  1. 1 ORCID Logo ,
  2. 2 ORCID Logo ,
  3. 2 ORCID Logo ,
  4. 2 ,
  5. 2 ORCID Logo ,
  6. 2 ,
  7. 2 ORCID Logo and
  8. 2 ORCID Logo
1Department of Chemistry, College of Science, Imam Mohammad Ibn Saud Islamic University (IMSIU), Riyadh 11623, Saudi Arabia
2School of Chemistry, University of Glasgow, Glasgow, G12 8QQ, UK
  1. Corresponding author email
This article is part of the thematic issue "π-Conjugated molecules and materials".
Guest Editor: A. Mateo-Alonso
Beilstein J. Org. Chem. 2024, 20, 2921–2930. https://doi.org/10.3762/bjoc.20.244
Received 19 Jul 2024, Accepted 29 Oct 2024, Published 13 Nov 2024
Full Research Paper
cc by logo
PDF
Album
Supp Info
Cite

Abstract

The study of organic small molecule semiconductor materials as active components of organic electronic devices continues to attract considerable attention due to the range of advantages these molecules can offer. Here, we report the synthesis of three dicyanomethylene-functionalised violanthrone derivatives (3a, 3b and 3c) featuring different alkyl substituents. It is found that the introduction of the electron-deficient dicyanomethylene groups significantly improves the optical absorption compared to their previously reported precursors 2a–c. All compounds are p-type semiconductors with low HOMO–LUMO gaps (≈1.25 eV). The hole mobilities, measured from fabricated organic field-effect transistors, range from 3.6 × 10−6 to 1.0 × 10−2 cm2 V−1 s−1. We found that the compounds featuring linear alkyl chains (3b and 3c) displayed a higher mobility compared to the one with branched alkyl chains, 3a. This could be the result of the more highly disordered packing arrangement of this molecule in the solid state, induced by the branched side chains that hinder the formation of π–π stacking interactions. The influence of dicyanomethylene groups on the charge transport properties was most clearly observed in compound 3b which has a 60-fold improvement in mobility compared to 2b. This study demonstrates that the choice of the solubilising group has a profound effect on the hole mobility on these organic semiconductors.

Keywords: Knoevenagel condensation; organic field-effect transistor; organic semiconductor; violanthrone

Introduction

Recently, organic semiconductors have received considerable attention due to their potential technological applications in semiconductor devices, such as organic field-effect transistors (OFETs) [1,2], organic light-emitting diodes (OLEDs) [3], and organic photovoltaic devices (OPVs)[4-6]. The charge transporting properties of organic semiconductors are key to the success of the devices and research focusing upon increasing this remains an important goal to enhance the commercial viability of the technologies. Typically, organic semiconductor molecules with large fused conjugated systems have achieved high charge carrier mobility. Such molecular structures improve the intermolecular interactions (such as π–π stacking) that are required to facilitate the hopping of charge carriers between adjacent molecules [7-9].

Among many intensively investigated organic semiconductors [10-12], are perylene diimide (PDI) derivatives which feature a rigid, planar, fused π-skeleton. These molecules have been widely utilised as n-type materials, due to their exceptional charge mobility (μe ≈ 0.1–2.1 cm2 V−1 s−1) [13-17], high electron affinity, excellent self-assembling properties [18-20], and thermal and photochemical stabilities [21]. The excellent charge carrier mobility of PDIs has been explained by the intermolecular π–π interactions with an interplanar distance (3.3–3.5 Å) [22-25] that leads to the formation of large crystalline domains which influence charge transport. However, the microscale domains reduce the donor–acceptor interface which ultimately impacts on efficient exciton dissociation in OPV devices [12]. Therefore, it is important to further investigate other fused π systems to determine if this drawback can be overcome while maintaining the favourable properties of PDIs.

Violanthrones are a class of materials featuring a large π-conjugated system composed of nine fused benzene rings with two carbonyl groups, in the 5 and 10 positions (Figure 1). The related structural features of violanthrones suggest that these materials may possess similar charge transport, optical and electrochemical properties to those of PDIs. However, the larger π-conjugated system of violanthrone, along with the two carbonyl groups, increases the possibility of stronger π–π intermolecular interactions which might result in a narrower HOMO–LUMO gap than that of PDI, and an absorption band extending to the near-infrared (NIR) region [26]. This makes violanthrone and its derivatives potential candidates for NIR optoelectronic applications. In fact, the intrinsic semiconducting properties of violanthrone is traced back to 1950, when Akamatu and Inokuchi measured its electrical conductivity (σ), which was found to be 3.4 × 10−4 Ω−1 cm−1 [27,28]. The chemical structure of violanthrone allows for its modification and hence the synthesis of materials with interesting spectral properties. Due to the low solubility of violanthrone in the majority of organic solvents, special attention has been drawn to its dihydroxy derivative (Figure 1), which allows further modification to the materials via etherification or esterification [29,30].

[1860-5397-20-244-1]

Figure 1: Chemical structures of violanthrone and dihydroxyviolanthrone.

There has been a report on the structural modification of dihydroxyviolanthrone where the effect of three alkoxy substituents on the 16,17-bis(2-ethylhexyloxy)anthra[9,1,2-cde]benzo[rst]pentaphene-5,10-dione, on aggregation and photovoltaic properties was studied [30]. It was found that derivatives with the shortest linear alkyl chain (n-hexyl) exhibit the strongest π–π interactions since the distance between two adjacent molecules is shorter and less steric repulsion is observed. This was reflected by the highest hole mobility of the derivatives with n-hexyl chains (3.15 × 10−4 cm2 V−1 s−1), compared to derivatives with n-octyl chains (1.76 × 10−4 cm2 V−1 s−1) and 2-ethylhexyl chains (4.93 × 10−5 cm2 V−1 s−1). The stronger π–π interactions led to a higher power conversion efficiency (PCE) as a result of the higher short-circuit current density (Jsc), due to films with higher crystallinity providing a smoother pathway to charge carriers to pass through the device [30].

The π–π intermolecular interactions, the molecular stacking and mobility of a solution-processable violanthrone derivative has been studied. It was shown that π–π stacking can be enhanced in solution and in the solid state by adding a non-solvent (n-hexane) to chloroform. Therefore, the resulting film of the compound obtained from a solvent mixture of chloroform/n-hexane showed a hole mobility of an order of magnitude higher (4.44 × 10−4 cm2 V−1 s−1) than that of the film obtained from pure chloroform (4.93 × 10−5 cm2 V−1 s−1) [26]. Another study reported the capability of violanthrone 2b to act as an electron acceptor in OPVs when blended with PDI as a co-acceptor, which showed an enhanced light harvesting and photocurrent generation compared to the device without violanthrone being incorporated (Figure 2) [31].

[1860-5397-20-244-2]

Figure 2: Chemical structures of 2b and 3b.

Liu et al. [32] reported a novel violanthrone derivative 3b via the incorporation of the strong electron-withdrawing dicyanomethylene unit. The study suggested that 3b could be a potential n-type material for OPVs. The incorporation of two dicyanomethylene groups resulted in a material with strong electron affinity and low reduction potential of −0.56 V vs NHE, and a λmax at 701 nm with ε of 4.69 × 104 L mol−1 cm−1 which might lead to the contribution of 3b to the photocurrent.

All previous studies suggested that violanthrone and its derivatives display electronic functionality and could be potentially used in organic electronics. Nevertheless, to the best of our knowledge, neither OPV device fabrication nor the charge mobility of 3b has been reported. Therefore, in this work, the synthesis of compound 3b and other new analagous solution-processable derivatives are reported. The performance of these materials as the semiconductor layer in OFETs was studied to determine the effect of the different side chains.

Results and Discussion

Synthesis

The synthesis of compounds 2a–c and 3a–c is shown in Scheme 1. Compounds 2a–c were synthesised through a well-established etherification protocol [30] via the reaction of the commercially available compound 16,17-dihydroxyviolanthrone with 2-ethylhexyl bromide (a), 1-bromooctane (b), and 1-bromododecane (c) resulting in compounds, 2a, 2b and 2c, respectively. The final target compounds 3a–c were synthesised in 13%, 48% and 36% yield, respectively, following the reported procedure for anthraquinone, where the Knoevenagel condensation with malononitrile was successfully reported [33].

[1860-5397-20-244-i1]

Scheme 1: Synthesis of compounds 2a–c and 3a–c.

Theoretical studies

Density functional theory (DFT) calculations of two derivatives of compounds 2 and 3, having methoxy groups instead of the longer alkyl chains have been reported in the literature [32], providing information on the molecular structure and packing of these materials. However, no significant information about the electronic and orbital distributions was provided, therefore further investigation was needed, using a more suitable basis set. The molecules were geometrically optimised at the ground state using the B3LYP functional with the 6-311G (d,p) basis set. The geometry of the two molecules was found to be nearly identical to the ones previously reported, with the nine fused rings of compound 2 almost planar, compared to the more twisted geometry of compound 3. This could possibly result in weak π–π interactions with the potential to form nanoscale pure and mixed domains in the bulk heterojunction on the length scale of the exciton diffusion length (5–15 nm), leading to an efficient exciton dissociation and charge generation [12].

Figure 3 gives an insight into the spatial distribution and the energies of the frontier molecular orbitals of molecules 2 and 3. In both cases, the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) are uniformly delocalised throughout the nine fused rings, indicating that the two molecules could benefit from a potentially efficient and isotropic charge transport [12]. It is also evident that the presence of the two dicyanomethylene groups in compound 3 are responsible for lowering the energy of the two frontier molecular orbitals and for narrowing the energy gap between HOMO and LUMO. This is likely due to an enhanced push–pull effect in this molecule due to the presence of a stronger acceptor. Furthermore, the energy of the LUMO of compound 3 is comparable to reported PDI-based acceptors which have been used in OPVs with PCE > 7% [34].

[1860-5397-20-244-3]

Figure 3: Optimised ground state geometries of compounds 2 and 3 calculated using B3LYP/6-311G(d,p) in the gas phase.

Crystallographic study

Needle-shape crystals of compound 3b suitable for single-crystal X-ray analysis were obtained by slow evaporation of a dichloromethane/isopropanol solution of 3b. The crystal structure of 3b, displayed in Figure 4, shows a very similar twisted conformation of the core of the molecule to that of the related methoxy-substituted structure obtained from theoretical studies [32] (Table S1 in Supporting Information File 1).

[1860-5397-20-244-4]

Figure 4: Views of the crystal structure of 3b (left, shows displacement ellipsoids drawn at 50% probability level, right showing the twisted conformation).

Molecules of 3b form stacks along the b-axis linked by π–π interactions with centroid–centroid distances of 3.65 and 3.98 Å. These stacks lie in sheets with alternating aromatic–aliphatic layers (Figure S3 in Supporting Information File 1).

Optical studies

The UV–vis absorption spectra of 3a, 3b, and 3c are presented in Figure 5, and were carried out in dichloromethane solution (1 × 10−5 mol L−1). The absorption properties are summarised in Table 1. The UV–vis absorption spectra of the materials show a wide absorption band from 530 nm to 860 nm for all compounds. Compound 3a shows a slight hypsochromic shift (λmax = 741 nm) in comparison with 3b (λmax = 745 nm) and 3c (λmax = 746 nm). All compounds displayed very similar extinction coefficients between 45000 and 48000 L mol−1 cm−1. The optical gaps (Eopt) were estimated from the onset values of absorption (λonset), and little difference was found with values of 1.47 eV for 3b and 1.46 eV for 3a and 3c. It is noted that the optical properties did not show a significant change upon altering the alkyl chains which indicates that different alkyl substituents have a minimal effect on the frontier orbitals.

[1860-5397-20-244-5]

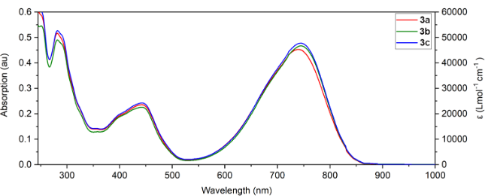

Figure 5: Absorption spectra of 3a–c measured in dichloromethane solution (1 × 10−5 M).

Table 1: The optical and the electrochemical data of compounds 3a–c.

  optical properties electrochemical properties
  λmax (nm) λonset (nm) Eopt (eV) ε (L mol−1 cm−1) IE (eV) EA (eV) Efund (eV)
3a 741 851 1.46 45300 −5.38 −4.11 1.27
3b 745 845 1.47 46700 −5.34 −4.09 1.25
3c 746 851 1.46 47800 −5.40 −4.15 1.25

Electrochemical studies

The electrochemical properties of the dyes were investigated by square wave voltammetry (SWV) and cyclic voltammetry (CV) and the data are summarised in Table 1, with the plots shown in Figure 6. All the materials exhibit at least one reversible reduction and two reversible oxidation waves as shown from the CV data (Figure 6 and Table 1). This reversibility is crucial for the regeneration of dyes following redox processes. The compounds display ionisation energies (IEs) of −5.38 eV, −5.34 eV, and −5.40 eV for 3a, 3b, and 3c, respectively, with electron affinities (EAs) of −4.11 eV, −4.09 eV, and −4.15 eV. Consequently, the estimated Efund are 1.27, 1.25 and 1.25 eV for 3a, 3b, and 3c, respectively. The EA value is in a similar range (from −3.70 to −4.30 eV) of some of the most widely used fullerene-based acceptors such as PC60BM and PC70BM [35], which suggests that the three materials might function effectively as electron acceptors.

[1860-5397-20-244-6]

Figure 6: SWV (left) and CV (right) of compound 3a–c (in dichloromethane 1 × 10−3 M) (V vs Fc/Fc+).

OFET device studies

The electrical characteristics were confirmed by the fabrication of OFETs. Compounds 3a–c were deposited by spin-coating onto n-doped Si/SiO2/Au substrates. The device performance parameters are summarised in Table 2, and their representative output and transfer curves are shown in Figure S5 (Supporting Information File 1). The charge mobility was determined in the saturation regime. The OFET devices based on 3a–c showed only p-type charge transport, with the highest hole mobility obtained by 3b. The hole mobilities (μh) of 3b and 3c are calculated as 1.07 × 10−2 and 1.21 × 10−3 cm2 V−1s−1, respectively. However, the hole mobility of 3a is only 3.62 × 10−6 cm2 V−1 s−1.

Table 2: Summary of OFET characteristics with 3a–c materials.

  ON/OFF ratio Vth (V) μh (cm2 V−1 s−1)a
3a 102 −3 3.62 × 10−6 (± 0.64 × 10−7)
3b 103 −14 1.07 × 10−2 (± 0.44 × 10−2)
3c 104 −19 1.21 × 10−3 (± 0.30 × 10−3)

aCalculated from an average of 8 devices. Standard deviation is listed in parentheses.

Side chain engineering is crucial for OFET performance since it plays an important role in determining solubility, molecular packing, polarity, and film-forming properties. Molecular packing, in particular, is greatly affected by alkyl chain length and branching point position [36]. Here, the difference in hole mobility among the three compounds can rationally be attributed to their distinguishing aggregate structures. Compared to 3a, the linear side chains in compounds 3b and 3c, might favour intermolecular π–π interactions and crystallinity in the solid state, therefore providing an easier pathway for charge carriers to hop from one molecule to nearby molecules. The introduction of the bulky dicyanomethylene groups in 3b resulted in a dramatic increase in μh (1.07 × 10−2 cm2 V−1s−1) compared to the previously reported 2b (1.76 × 10−4 cm2 V−1s−1) [30]. On the other hand, the twisted configuration of the material’s backbone upon the introduction of dicyanomethylene groups, along with branched alkyl side chains in 3a, might have contributed to a lower intermolecular π–π interaction and, therefore, lower μh (3.62 × 10−6 cm2 V−1 s−1) compared to the previously reported 2a (4.93 × 10−5 cm2 V−1 s−1) [30].

Conclusion

Violanthrone derivatives represent a promising group of semiconductor materials for organic electronics. It has been shown that molecular tailoring of violanthrone is simple and feasible. We have synthesised three soluble violanthrone derivatives with different side chains and found that due to the introduction of the electron-deficient dicyanomethylene groups, along with the extended π-conjugated framework, all compounds exhibit a narrow HOMO–LUMO gap (1.46–1.47 eV), with a wide absorption range exceeding 800 nm compared to their previously reported precursors [30]. The electrochemical studies of the three materials show reversible oxidation and reduction waves with EA values that are in a similar range (from −3.70 to −4.30 eV) of some of the most widely used fullerene-based acceptors such as PC60BM and PC70BM [35], which suggests that the three materials might function well as components in OPVs. Among the three materials the introduction of dicyanomethylene groups to compound 2b significantly improved the μh by 60-fold. It is also notable that 3a bearing branched 2-ethylhexyl side chains showed inferior performance compared to the isomeric 3b with linear n-octyl chains. The poor device performance is most likely caused by branched side chains that might induce a stronger disorder in the film, which results in hindered charge transport.

Experimental

Computational

Density functional theory (DFT) calculations were performed using Gaussian 09 software. Molecular geometries were initially optimised semi-empirically (AM1) and then reoptimised by DFT using the B3LYP method with the 6-311G(d,p) basis set unless stated otherwise. The absence of transition states was confirmed by the absence of imaginary frequencies in vibrational frequency calculations. The long side chains were replaced by methyl units to aid the convergence of the geometry optimisations.

Crystallography

Single crystal X-ray diffraction data for 3b were collected by the EPSRC National Crystallography Service using a ROD, Synergy Custom system, HyPix diffractometer with Cu Kα radiation, λ = 1.54178 Å. Data were collected and processed using CrysAlis PRO 1.171.39.30d (Rigaku OD, 2015). The structure was solved using SHELXT 2018/2 [37] and refined using SHELXL 2018/3 [38] within Olex2 1.3 [39]. Non-H atoms were refined with anisotropic atomic displacement parameters (ADPs) and H-atoms were placed in geometrically calculated positions and included as part of a riding model except the Me H-atoms which were included as a rigid rotor.

Organic field-effect transistors (OFETs) fabrication and measurement

Bottom-gate, bottom-contact organic field-effect transistors were made using prefabricated substrates (Fraunhofer IPMS, product code 1301). The substrates consisted of an n-doped Si gate electrode, SiO2 (230 nm) dielectric layer and Au (30 nm + 10 nm ITO adhesion layer) interdigitated source and drain electrodes, 1 cm in width. The substrate contained source-drain electrodes at channel lengths of 20, 10, 5, and 2.5 μm. For all compounds, four devices of 20 μm channel length and four devices with 10 μm channel length were tested, with the exception of 2b where some devices failed due to high resistance and testing was carried out using 5 μm channel length due to the low currents measured at higher channel lengths. Testing was carried out using a Keithley 4200 Semiconductor Characterisation System. Charge mobility was calculated in the saturation regime.

The substrates were washed using deionised H2O, acetone, and isopropanol before being dried over a stream of compressed air. Octadecyltrichlorosilane (30 μM) was dropcast onto the substrate for 5 minutes before the substrate was washed with toluene. The substrate was then dried over compressed air. A solution (10 mg mL−1 in CHCl3) of the semiconductor material was deposited by spin-coating at 1000 rpm for 60 seconds.

Synthesis

Compound 2a

16,17-Dihydroxyviolanthrone (500 mg, 1.02 mmol) and 2-ethylhexyl bromide (550 μL, 3.06 mmol) were dissolved in N,N-dimethylformamide (30 mL). Then, potassium carbonate was added (300 mg, 2.04 mmol), and the reaction mixture was stirred at 100 °C overnight. After cooling the reaction mixture to room temperature, it was poured into methanol (200 mL), and the resulting precipitate was filtered, then washed with water (150 mL) to give the title compound as a dark solid (440 mg, 60%). 1H NMR (400 MHz, CDCl3) δ 8.79 (d, J = 8.0 Hz, 2H), 8.65 (d, J = 8.1 Hz, 2H), 8.56 (d, J = 7.6 Hz, 2H), 8.40 (d, J = 7.8 Hz, 2H), 8.30 (s, 2H), 7.82 (t, J = 7.6 Hz, 2H), 7.62 (t, J = 7.4 Hz, 2H), 4.05 (m, 4H), 1.77 (m, 2H), 1.38 (m, 16H), 0.93–0.51 (m, 12H); 13C NMR (100 MHz, CDCl3) δ 183.4, 157.1, 135.7, 134.7, 133.3, 131.1, 129.6, 128.6, 128.3, 127.9, 127.7, 127.3, 123.9, 123.3, 122.9, 117.6, 114.6, 65.5, 42.1, 40.1, 30.2, 29.2, 23.5, 23.2, 14.2, 11.2; ASAP–HRMS (m/z): [M + H]+ calcd for C50H49O4, 713.3646; found 713.3631.

Compound 2b

16,17-Dihydroxyviolanthrone (2.00 g, 4.09 mmol) and 1-bromooctane (2.12 mL, 12.28 mmol) were dissolved in N,N-dimethylformamide (60 mL). Then, potassium carbonate was added (1.13 g, 8.19 mmol), and the reaction mixture was stirred at 100 °C overnight. After cooling the reaction mixture to room temperature, it was poured into methanol (400 mL), and the resulting precipitate was filtered, then washed with water (300 mL) to give the title compound as a dark solid (1.90 g, 65%). 1H NMR (400 MHz, CDCl3) δ 8.72 (d, J = 8.0 Hz, 2H), 8.60–8.47 (m, 4H), 8.37 (d, J = 8.2 Hz, 2H), 8.27 (s, 2H), 7.80 (t, J = 7.2 Hz, 2H), 7.60 (t, J = 7.3 Hz, 2H), 4.25 (br, 4H), 1.94–1.80 (m, 4H), 1.34 (d, J = 90.2 Hz, 20H), 0.82 (d, J = 6.9 Hz, 6H); 13C NMR (100 MHz, CDCl3) δ 183.2, 156.3, 135.6, 134.5, 133.2, 131.0, 129.4, 128.6, 128.3, 127.7, 127.5, 127.1, 123.6, 123.2, 122.7, 117.2, 113.5, 69.8, 31.9, 29.9, 29.6, 29.5, 26.2, 22.8, 14.2; HRESIMS (m/z): [M + Na]+ calcd for C50H48NaO4, 753.3409; found, 735.3445.

Compound 2c

16,17-Dihydroxyviolanthrone (500 mg, 1.02 mmol) and 1-bromododecane (800 μL, 3.06 mmol) were dissolved in N,N-dimethylformamide (30 mL). Then, potassium carbonate was added (300 mg, 2.04 mmol), and the reaction mixture was stirred at 100 °C overnight. After cooling the reaction mixture to room temperature, it was poured into methanol (200 mL), and the resulting precipitate was filtered, then washed with water (150 mL) to give the title compound as a dark solid (600 mg, 71%). 1H NMR (400 MHz, CDCl3) δ 8.78 (d, J = 8.0 Hz, 2H), 8.63 (d, J = 8.3 Hz, 2H), 8.57 (d, J = 7.7 Hz, 2H), 8.39 (d, J = 8.0 Hz, 2H), 8.30 (s, 2H), 7.81 (t, J = 7.4 Hz, 2H), 7.62 (t, J = 7.6 Hz, 2H), 4.26 (s, 4H), 1.92–1.72 (m, 4H), 1.55–1.02 (m, 36H), 0.86 (t, J = 6.8 Hz, 6H); 13C NMR (100 MHz, CDCl3) δ 183.2, 156.4, 135.6, 134.5, 133.2, 131.1, 129.5, 128.6, 128.3, 127.8, 127.5, 127.2, 123.7, 123.2, 122.8, 117.3, 113.6, 69.8, 63.2, 32.9, 32.0, 29.7, 29.6, 29.5, 29.4, 26.2, 25.8 , 22.8, 14.2; ASAP–HRMS (m/z): [M + H]+ calcd for C58H64O4, 825.4875; found, 825.4883.

Compound 3a

Compound 2a (200 mg, 0.280 mmol) and malononitrile (100 mg, 0.840 mmol) were dissolved in anhydrous chlorobenzene (6 mL). To the dark blue mixture titanium tetrachloride (100 μL, 0.840 mmol) and pyridine (130 μL, 1.68 mmol) were added and the mixture was stirred under reflux overnight. After cooling the reaction mixture to room temperature, it was poured into ice-water (50 mL) and extracted with dichloromethane (3 × 20 mL). The combined organic extract was dried over MgSO4, filtered and concentrated under reduced pressure. The crude product was purified by silica column chromatography (SiO2, CH2Cl2/diethyl ether 98:2) to give the title compound as a dark solid (30.0 mg, 13%). Mp 295–296 °C; 1H NMR (400 MHz, CDCl3) δ 8.75 (d, J = 8.2 Hz, 2H), 8.55 (dd, J = 12.5, 8.2 Hz, 4H), 8.35 (d, J = 8.1 Hz, 2H), 8.25 (s, 2H), 7.80 (t, J = 7.4 Hz, 2H,), 7.63 (t, J = 7.7 Hz, 2H), 4.24–3.96 (m, 4H), 1.79 (br, 2H), 1.54–1.21 (m, 16H), 0.84 (m, 12H); 13C NMR (100 MHz, CDCl3) δ 183.4, 157.1, 135.7, 134.7, 133.3, 131.1, 129.6, 128.6, 128.3, 127.9, 127.7, 127.3, 123.9, 123.3, 122.9, 117.6, 114.6, 65.5, 42.1, 40.1, 30.2, 29.2, 23.2 (C, 14.2, 11.2; ASAP–HRMS (m/z): [M + H]+ calcd for C56H49N4O2, 809.3841; found, 809.3856 .

Compound 3b

Compound 2b (200 mg, 0.28 mmol) and malononitrile (60.0 mg, 0.840 mmol) were dissolved in anhydrous chlorobenzene (6 mL). To the dark blue mixture, titanium tetrachloride (50.0 μL, 0.420 mmol) and pyridine (70.0 μL, 0.84 mmol) were added and the mixture was stirred under reflux overnight. After cooling the reaction mixture to room temperature, it was poured into ice-water (50 mL) and extracted with dichloromethane (3 × 20 mL). The combined organic extract was dried over MgSO4, filtered and concentrated under reduced pressure. The crude product was purified by column chromatography (SiO2, petroleum ether/CH2Cl2 1:9) to give the title compound as a dark solid (110 mg, 48%). Analysis is in agreement with previously reported data [32]. Mp 294–295 °C; 1H NMR (400 MHz, CDCl3) δ 8.75 (d, J = 8.2 Hz, 2H), 8.56 (dd, J = 8.1, 1.0 Hz, 2H), 8.51 (d, J = 8.4 Hz, 2H), 8.35 (d, J = 7.9 Hz, 2H), 8.26 (s, 2H), 7.82–7.75 (m, 2H), 7.65–7.58 (m, 2H), 4.31 (s, 4H), 1.94–1.84 (m, 4H), 1.54–1.07 (m, 20H), 0.89–0.78 (m, 6H); 13C NMR (100 MHz, CDCl3) δ 161.0, 157.1, 133.8, 132.9, 132.6, 129.1, 129.0, 128.5, 128.3, 127.9, 127.2, 127.1, 124.2, 122.5, 120.9, 117.6, 116.3, 112.5, 76.8, 70.0, 31.9, 29.8, 29.5, 29.4, 26.1, 22.7, 14.2; FAB+–HRMS (m/z): [M + H]+ calcd for C56H49N4O2, 809.3856; found, 809.3879 .

Details of the crystal structure of 3b are given in the CIF which can be obtained from the CCDC free of charge CCDC 2128169 from the Cambridge Crystallographic Data Centre [40].

Compound 3c

Compound 2c (300 mg, 0.360 mmol) and malononitrile (100 mg, 1.08 mmol) were dissolved in anhydrous chlorobenzene (6 mL). To the dark blue mixture titanium tetrachloride (120 μL, 1.08 mmol) and pyridine (170 μL, 2.16 mmol) were added and the mixture was stirred under reflux overnight. After cooling the reaction mixture to room temperature, it was poured into ice-water (50 mL) and extracted with dichloromethane (3 × 20 mL). The combined organic extracts were dried over MgSO4, filtered and concentrated under reduced pressure. The crude product was purified by silica column chromatography (SiO2, CH2Cl2/diethyl ether 98:2) to give the title compound as a dark solid (120 mg, 36%). Mp 241–242 °C; 1H NMR (400 MHz, CDCl3) δ 8.60 (d, J = 8.2 Hz, 2H), 8.48 (d, J = 8.1 Hz, 2H), 8.35 (d, J = 8.0 Hz, 2H), 8.30 (d, J = 8.3 Hz, 2H), 8.24 (s, 2H), 7.78 (t, J = 7.3 Hz, 2H), 7.57 (t, J = 7.7 Hz, 2H), 4.34 (s, 4H), 1.98–1.86 (m, 4H), 1.49–1.18 (m, 36H), 0.87 (t, J = 6.9 Hz, 6H); 13C NMR (100 MHz, CDCl3) δ 183.2, 156.4, 135.6, 134.5, 133.2, 131.1, 129.5, 128.6, 128.3, 127.8, 127.5, 127.2, 123.7, 123.2, 122.8, 117.3, 113.6, 69.8, 63.2, 32.9, 32.0, 29.9, 29.7, 29.5, 29.4, 26.2, 25.8, 22.8, 14.2; ASAP–HRMS (m/z): [M + H]+ calcd for C64H65N4O2, 921.5107; found, 921.5108.
