Exploring the potential of polymers: advancements in oral nanocarrier technology

Review

1 Introduction

The oral route is the simplest and most effective method for administering medications with minimal side effects. It is cost-effective, corresponding medications are easy to produce on a large scale, and it promotes high patient adherence to therapy. This makes this route the largest market for pharmaceutical products intended for human use [1].

Despite their advantages, drug candidates for oral administration face several limitations, as shown in Figure 1, including chemical instability caused by the gastric environment, low bioavailability, and poor permeability across barriers in the gastrointestinal tract (GIT), such as mucus and the intestinal epithelium [2,3]. The complex biochemical environment includes pH variations (ranging from 1 to 2.5 in the stomach to 7 to 8 in the colon), metabolizing enzymes (such as pepsin, lipase, peptidase, and amylases), and surfactants like bile salts and those produced by the liver. These factors can alter the structural integrity of drugs [4].

Orally administered drugs (mostly absorbed in the lumen of the GIT must pass through the mucus layer, located between the epithelial tissue and the lumen, to reach the epithelium, mucosa, and blood or lymphatic capillary walls. Since mucus is continuously secreted along the GIT, it is subsequently eliminated due to the cellular renewal process [5].

Mucus is a complex hydrogel comprising proteins, carbohydrates, lipids, salts, antibodies, bacteria, and cellular debris. Mucins are the primary protein component of mucus, secreted or cell-bound, which form a viscoelastic gel through entanglement and cross-linking. These properties contribute to the protective and lubricating functions of mucus. These functions are performed through steric, electrostatic, and hydrophobic interactions with various substances [6]. Mucin is an anionic glycoprotein that plays a pivotal role in determining the thickness and structure of the mucus layer. Consequently, its barrier function and permeability to drugs are also influenced. As a consequence, positively charged substances are attracted to mucin by electrostatic forces and retained within the mucus layer which acts as a barrier that must be overcome in the oral administration of drugs [7].

Another intrinsic physical barrier of the GIT is the intestinal epithelium (Figure 1), which consists of a single layer of epithelial cells, including enterocytes and secretory cells. Drug passage through the epithelium occurs via the transcellular and paracellular pathways, as well as through M cells located on the surface of Peyer’s patches [8]. Positioned under the mucus layer, the intestinal epithelium plays crucial roles in defending against hostile contents, selectively absorbing nutrients, and maintaining homeostasis within the GIT. The diverse cells of the intestinal epithelium can be explored as therapeutic targets for oral absorption, given the significant roles they play in the epithelial barrier [9].

Nanotechnology is a field that focuses on the study and production of nanometric particles. Materials reduced to this scale exhibit alterations in their physicochemical properties, enhancing their interactions with molecular and cellular processes. Consequently, nanotechnology has diverse pharmaceutical applications, as the nanoencapsulation of drugs improves solubility and biodistribution while preventing undesirable interactions and degradation before reaching target tissues and cells [10]. Moreover, by overcoming the biological and chemical barriers of the body, nanotechnology increases the efficiency and effectiveness of therapeutic and diagnostic regimens, offering less invasiveness and greater biocompatibility [11].

Polymeric nanoparticles (PNs) have been studied for their potential in the oral delivery of insoluble drugs and biological products [12]. Peptides, such as GLP-1 receptor agonists [13], nucleic acids such as RNA [14], insulin [15], and antigens [16] have been investigated. These nanoparticles (NPs) preserve the bioactivity of the active compound during gastric transit and facilitate permeation through mucus and absorption by epithelial cells, enabling targeted delivery. In essence, PNs offer superior performance in protecting, targeting, and enhancing both the therapeutic payload and intestinal permeability [17].

PNs represent a viable strategy for overcoming GIT barriers in oral drug delivery. The polymeric composition allows for diverse and sophisticated designs, with primary advantages including the ability to control size, shape, and surface charge. Furthermore, polymers enable the incorporation of numerous chemical and biological functionalities, rendering NPs able to target specific locations within the body. They can also be directed to individual cellular compartments and exhibit responsiveness to stimuli associated with particular physiological environments, thereby achieving highly efficient drug release [18]. This interaction with biological systems without inducing negative or toxic effects is attributed to their biocompatibility and biodegradability [19].

Surface design plays a pivotal role in PNs for oral use, as it dictates their behavior during absorption by interacting with food, digestive enzymes, bile salts, electrolytes, and mucus. Polymers enable diverse surface functionalities tailored to therapeutic demands, including adhesive, bioinert, or charge-conversion functionalities that modify zeta potential and hydrophilic properties, among others. Therefore, different polymer surfaces impact the NPs’ fate in the GIT in a different way [20].

Polymers are classified as either natural, derived from natural products, or synthetic, chemically synthesized from monomers. Examples of natural polymers include chitosan, alginate, and hyaluronic acid. Synthetic polymers are classified based on their chemical composition and include polyesters, polyamides, polyethylene glycol derivatives, and responsive polymers, among others. The most frequently used polymers as oral nanocarriers include poly(lactic-co-glycolic) acid (PLGA), polycaprolactone (PCL), and methacrylates. Strategies to enhance drug entrapment and improve interactions with biological systems often combine synthetic and natural polymers, with the latter serving as a coating to protect against degradation [21].

Considering the advantages of nanoparticulate systems in drug delivery, this review explores recent advances in the use of polymers for developing oral NPs, focusing on innovative research published in the past decade. It highlights the key characteristics of PNs and their preparation methods. The synthesis processes, chemical structures, and functions of major polymers are detailed, along with the mechanisms of active substance internalization and release within the body. Special attention is given to how PNs have been applied to enhance the oral delivery of peptides, nucleic acids, poorly soluble drugs, and small molecules. Additionally, current strategies for administration and bioavailability enhancement are discussed. The objective of this study is to provide a comprehensive theoretical foundation for employing polymers as nanocarriers in oral drug delivery.

2 Polymeric nanoparticles: a viable option for oral administration

The biocompatibility and biodegradability of polymers have made PNs a topic of growing interest in light of their small size and unique physicochemical properties [22,23]. These systems offer advantages for drug delivery, including the ability to protect labile compounds, control release kinetics, improve drug solubility and stability, enhance oral bioavailability, and enable site-specific targeting and combination therapies [24].

PNs are stable colloidal nanostructures formed from synthetic or natural polymers, characterized by synthetic versatility, which allows for customization based on the requirements of the final formulation. Biopolymers can undergo chemical derivatization to obtain specific properties, while synthetic polymers are synthesized from their corresponding monomers, resulting in diverse structures and applications [25]. PNs are viable options for smart drug delivery using responsive and stimulating polymers, which release molecules in response to internal signals (e.g., oxidation or reduction, enzymatic activity, or low acidity) or external stimuli such as light and temperature [26,27]. This delivery of active ingredients relies on differential biochemical changes, facilitating the development of more precise therapies with improved control over site specificity and drug release [28].

The absorption of PNs depends on their size, surface characteristics, and morphology, which may exhibit distinct features, classifying them as either nanocapsules or nanospheres. Nanocapsules consist of an oily core where the drug is encapsulated (Figure 2C), surrounded by a polymeric shell that regulates its release profile; alternatively, the drug may be adsorbed onto the polymeric wall (Figure 2D). In contrast, nanospheres are formed when the drug is either adsorbed onto the surface of the polymeric matrix (Figure 2B) or retained inside it (Figure 2A), resulting in a uniform dispersion of active compounds within the polymer [29,30].

The encapsulation of drugs in nanocapsules and nanospheres correlates with their biopharmaceutical characteristics, which are directly linked to oral absorption. Amidon et al. [31], through studies correlating solubility and permeability in the cell membrane both in vitro and in vivo, demonstrated the importance of these characteristics for the pharmacokinetic performance of drugs and developed the “Biopharmaceutical Classification System” (BCS), which remains widely used today by regulatory agencies, research groups, and the pharmaceutical industry. The BCS classifies drugs into four categories, namely, class I (high solubility and permeability), class II (low solubility and high permeability), class III (high solubility and low permeability), and class IV (low solubility and permeability).

In this context, nanocapsules are particularly effective in encapsulating hydrophobic and lipophilic drugs due to the affinity of these compounds for the oily core. Drug release occurs through controlled diffusion across the polymeric layer and interaction with the core material. Conversely, nanospheres are capable of encapsulating either hydrophilic or hydrophobic drugs, depending on the physicochemical compatibility between the drug and the polymeric matrix. The distribution of the drug within the matrix is influenced by drug–polymer interactions, as well as by the type of polymer and the manufacturing method employed. Release from nanospheres is generally governed by a combination of polymer degradation and drug diffusion through the matrix. Additionally, when hydrophilic polymers are employed, swelling-induced release becomes relevant, wherein polymer chain relaxation significantly influences the diffusion rate and overall release kinetics [24,32,33]. From a pharmacokinetic perspective, the size, surface charge, and morphology of PNs can modulate their transit through the GIT, and such properties can be tuned during nanoparticle preparation. The choice of manufacturing method considers not only these parameters but also the physicochemical characteristics of the drug, the intended route of administration, the therapeutic target, and the polymer selected as the nanocarrier, which plays a critical role in determining the most appropriate fabrication technique. While drug classification by the BCS remains a reference in formulation development, the design of PNs expands the delivery possibilities for drugs in all four BCS classes by overcoming limitations related to poor solubility or permeability [34].

Among the various techniques used for preparing NPs, the polymerization of monomers or dispersion of preformed polymers are the most commonly used techniques. Methods based on the polymerization of monomers include emulsion polymerization, miniemulsion, microemulsion, and interfacial polymerization, which differ in initiation mechanisms and stabilization strategies. Emulsion polymerization, for instance, can occur in organic or aqueous continuous phases, with the latter offering a reduction of toxic solvent residues. Miniemulsion and microemulsion methods provide better control over particle size and distribution, although microemulsion polymerization often requires higher concentrations of surfactants and results in lower polymer chain yields. Interfacial polymerization, in contrast, is characterized by the reaction of two monomers dissolved in immiscible phases, leading to polymer formation at the interface [35,36]. Table 1 summarizes the characteristics of these methods and the most commonly used polymers.

Although polymerization-based techniques allow for precise tailoring of nanoparticle architecture, they present significant limitations that restrict their broader application, particularly in oral drug delivery systems, where biocompatibility and safety are critical. These methods frequently involve non-biodegradable monomers, generate non-biocompatible byproducts, and require extensive purification to eliminate potentially toxic residues, thereby complicating scalability and regulatory compliance. Moreover, the use of free radicals or ultraviolet light to initiate polymerization raises additional concerns regarding the stability and safety of the final product. In light of these challenges, the use of preformed polymers has gained prominence in nanoparticle synthesis, offering a more straightforward and biocompatible alternative particularly suited for pharmaceutical applications requiring materials approved by regulatory agencies such as the Food and Drug Administration (FDA) [29,30,39,40].

Given this context, PNs produced using preformed polymers have emerged as a technically and therapeutically advantageous option. Table 2 provides an updated overview of the most commonly used methods for the preparation of PNs employing preformed polymers. These methods typically begin with the formulation of an emulsifying system, a step common to all techniques, followed by the formation of NPs through a process that varies depending on the method, such as solvent precipitation or evaporation, which ultimately defines the nomenclature of each. The selection of suitable polymers is governed by their solubility profiles, interactions with solvents and drugs, and surface charge, which requires careful consideration to meet the therapeutic demands of oral delivery systems [41,42].

These strategies involve dissolving or dispersing pre-existing polymers in appropriate solvents, followed by NP formation through approaches such as nanoprecipitation, solvent diffusion-emulsification, solvent evaporation, ionic gelation, and dialysis. Each technique is intrinsically linked to specific polymer classes, depending on their physicochemical properties and solubility behavior. Nanoprecipitation is frequently employed for synthetic polymers such as PLGA and PCL, which are soluble in organic solvents and undergo controlled precipitation in aqueous media, enabling efficient encapsulation of hydrophobic drugs [55].

Chitosan, a natural polymer, predominantly forms NPs via ionic gelation, where interactions with multivalent counterions create stable polymeric networks without the use of organic solvents, thereby ensuring high biocompatibility and minimal toxicity. Similarly, alginate NPs are often obtained through emulsification/solvent diffusion techniques, facilitated by its water solubility and gel-forming capacity in the presence of divalent cations that support the encapsulation of hydrophilic drugs. Dialysis methods, in turn, are particularly suited for amphiphilic copolymers and polyethylene glycol, as these materials tend to self-assemble into micelles or stable nanostructures when exposed to concentration gradients in aqueous solutions. Preformed polymer-based methods stand out for their simplicity, reproducibility, and regulatory compliance, reinforcing their suitability for safe and effective oral nanoparticle delivery [44,51,56].

3 Polymers and their absorption mechanisms in the body

3.1 Physical properties of polymers and their relationship with biodegradation in the body

Analyzing the Greek etymology of the word “polymer” provides insight into its definition. The term “polymer” is derived from “poly”, meaning “many” and “meres”, meaning “parts” or “units”. “Monomer”, in turn, comes from “mono”, meaning “one”, referring to a single molecule. Polymers, therefore, are macromolecules formed by smaller units, the monomers, which are covalently bonded to each other and produced through polymerization reactions such as addition, condensation, ring-opening polymerization, emulsion, precipitation, and others [57]. Monomers determine the decomposition products of polymers in the body and, consequently, their toxicity and biocompatibility. This is why synthesis methods are developed to control the rapid and reversible activation and deactivation of propagation chains. As a result, polymers with low polydispersity and controllable molecular weights are obtained, generating unimodal NPs with increasingly functional designs and satisfactory release profiles [58,59].

The intrinsic characteristics of polymers influence biodegradation and drug release behavior. Parameters such as crystallinity, glass transition temperature (T_g), solubility, and molecular weight affect the polymer matrix and the behavior of incorporated molecules. This is because each polymer has unique spatial attributes, with monomeric structures and functional groups, hydrophobic or hydrophilic, that determine its properties [60].

The nature of monomers correlates with polymer crystallinity, which, in turn, defines mechanical strength, swelling, hydrolysis, and biodegradation rates. Crystallinity is associated with ordered molecular structures that exhibit intense interactions and steric hindrance. In this context, it can be inferred that low-molecular-weight molecules form crystals more easily and, consequently, have a slower drug release profile. Conversely, in polymers with greater porosity, crystallinity has a reduced impact on molecule release [61].

The influence on compound diffusion can be attributed to the polymer’s molecular weight, which affects the formulation’s behavior, aggregation, and architecture. Degradation products form more rapidly in polymers with lower molecular weight, as these exhibit a high elastic modulus, creating a deformable matrix that expands pores due to osmotic pressure [57]. This, in turn, influences the elimination, phagocytosis, and biological activity of PNs intended for oral administration.

Another factor affecting the polymer’s physicochemical properties is its T_g, which determines the point at which the polymer transitions from a rigid, glassy state to a more flexible, rubbery state as the mobility of the polymer chains increases with rising temperature. Above T_g, the polymer becomes rubbery, leading to increased rates of water and drug mass transfer throughout the entire polymer matrix. However, in NPs, a balance between amorphous and crystalline states is necessary to optimize mechanical strength and drug release rates. The glass transition temperature reflects the polymer chain’s permeability and mobility, influencing its susceptibility to enzymatic degradation. Consequently, copolymers with hydrophobic and hydrophilic segments are widely used in NPs to ensure more predictable release rates [28,62,63].

The hydrophobicity and hydrophilicity of polymers are directly related to their in vivo stability, influencing the pharmacokinetics and biological distribution of NPs. Increased hydrophilicity determines the degradation rate and their recognition by the reticuloendothelial system, preventing adsorption and nonspecific protein interactions. Furthermore, it enhances steric repulsion, reducing opsonization and activation of the complement system. Consequently, coating the nanoparticle surface with hydrophilic polymers decreases hydrophobicity and enhances its stealth properties [64].

Polymeric coating strategies are instrumental in preventing interactions with mucin through hydrophobic, electrostatic, and hydrogen bonds, while also increasing mucus penetration by modulating cellular absorption and reducing particle entrapment [65,66]. Maisel et al. [67] demonstrated that hydrophobic mucoadhesive particles adhere to mucus, leading to aggregation and limited distribution along the GIT after oral administration. Conversely, non-mucoadhesive particles can penetrate the mucus of the small and large intestine, spreading across nearly the entire tissue surface and facilitating drug delivery for systemic applications. This behavior occurs because surface properties influence polymer–mucus interactions, altering the entanglement density of mucin chains and consequently modifying the aggregation degree of the mucin network through various interactions [68,69].

Surface coating techniques play a key role in the interaction of PNs with the biological environment. These strategies involve the physical adsorption or covalent attachment of hydrophilic polymers (e.g., polyethylene glycol (PEG) or polysaccharides) or mucoadhesive agents such as chitosan, which can enhance colloidal stability, promote mucus permeation, and protect the nanocarrier from enzymatic degradation in the GIT. Such coatings have been explored to improve the pharmacokinetic performance of PNs by modulating their interactions with mucus and the intestinal epithelium. The selection of coating material and technique is guided by the therapeutic goal, the physicochemical properties of the core polymer, and the nature of the encapsulated drug. Section 4 of this review provides a detailed discussion of examples of polymeric coatings on NPs intended for oral administration, using both synthetic and natural polymers [70,71].

Polymer properties such as T_g, solubility, crystallinity, and molecular weight are interrelated and have a significant impact on the permeability of NPs. Consequently, these properties affect interactions with mucin, pH, ionic strength, and physiological variables such as mucus thickness, clearance, and nanoparticle size, which collectively shape the mucoadhesive profile of polymers, enhancing cellular absorption [72,73]. Thus, the physicochemical characteristics of polymeric nanocarriers confer protective effects that prevent enzymatic metabolism prior to absorption, forming a barrier that remains stable for a specific duration until the encapsulated agent is released [74].

3.2 Absorption mechanisms of polymeric nanoparticles

Cellular absorption occurs after overcoming the adverse conditions of the GIT, as nanocarriers enter the bloodstream to exert their therapeutic effect. This process can occur through various mechanisms, including paracellular transport, the M cell-associated pathway, and endocytosis.

Paracellular transport involves NPs reaching the bloodstream through the spaces between intestinal epithelial cells. Although these junctions are tight, they provide a useful route for administering macromolecules like insulin. Chitosan, as a polymeric nanocarrier, has shown satisfactory results by increasing permeability through the reversible opening of these intercellular tight junctions [75] as described in Table 2 and discussed in Section 4.1.1.

M cells are characterized by invaginations in their membrane, which facilitate the selective entry of substances into the lymphatic tissue beneath the intestinal mucosa via active transport. This pathway offers an alternative to first-pass metabolism and helps reduce toxicity. Moreover, NPs using this route are intercepted by immune cells such as macrophages and dendritic cells, making them suitable for oral vaccine administration (see Table 2) by promoting mucosal immunity activation [16,76].

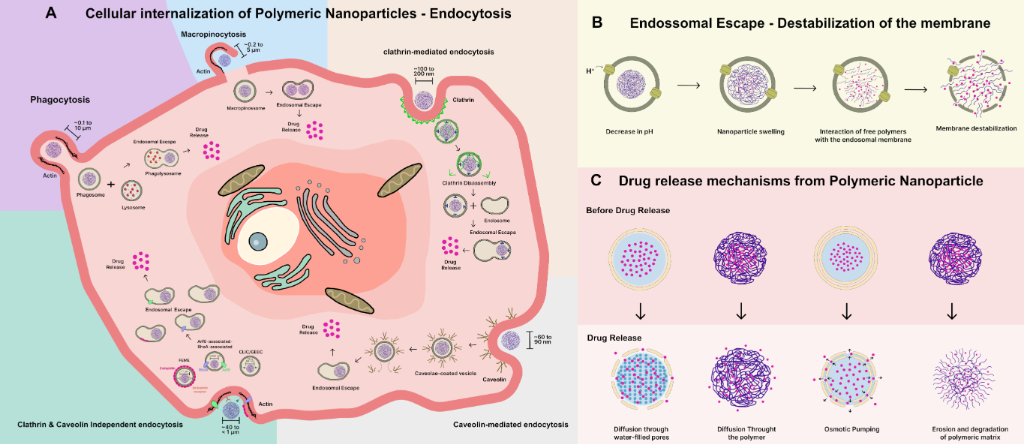

Endocytosis is the primary pathway through which NPs enter cells. Hydrophobic polymeric NPs often exhibit stronger interactions with the lipid bilayer, which may facilitate their internalization through endocytic mechanisms. In contrast, hydrophilic NPs tend to adsorb onto the cell membrane surface before being taken up via endocytosis [77]. Once internalized, NPs can be trafficked through various intracellular compartments (including endosomes and lysosomes) and in some cases, may escape into the cytosol, which is particularly relevant for therapeutic applications that require cytoplasmic or organelle-specific drug delivery. In this context, endocytosis is commonly categorized into two types, that is, phagocytosis and pinocytosis, as illustrated in Figure 3A. Phagocytosis involves the uptake of particles larger than 500 nm that bind to specific surface receptors (such as Toll-like, mannose/lectin, and scavenger receptors) on phagocytic cells. These particles are internalized through the plasma membrane, forming a cup-shaped invagination that develops into phagosomes. These phagosomes subsequently fuse with lysosomes, where the contents undergo acidic degradation [78,79].

Internalization of PNs by pinocytosis can occur through macropinocytosis, clathrin-mediated endocytosis (CME), caveolin-mediated endocytosis (CvME), and clathrin- and caveolin-independent endocytosis. Macropinocytosis is a type of endocytosis that depends on the solute concentration around the cell and is characterized by membrane protrusions induced by growth factors, bacteria, viruses, and necrotic cells. These protrusions either collapse into endocytic vesicles or retract into the membrane, fusing with it and forming macropinosomes [80].

CME involves interactions between clathrin-associated adaptors and sorting proteins, forming coated pits along the plasma membrane. These pits undergo disassembly via dynamin, leading to the formation of vesicles that are transported to endosomes for subsequent degradation. NPs smaller than 200 nm with a positive surface charge, as well as growth factors and transferrin, are internalized through CME, enabling targeted therapy [81].

The dimeric protein caveolin-1 is the primary agent in CvME, playing key roles in cell signaling, lipid regulation, and vesicular transport. It also defines the characteristic flask-like shape of vesicles and is located on the cytosolic side of the membrane. Similar to CME, dynamin is responsible for vesicle formation; however, in this pathway, vesicles fuse with caveosomes, avoiding lysosomal degradation. This mechanism is the main advantage of this internalization pathway, making it a suitable alternative when NPs are sensitive to degradation. Albumin, folic acid, peptides, and NPs smaller than 50 nm with surface charges between +15 and −15 mV are preferentially internalized via CvME. Some NPs follow clathrin- and caveolin-independent endocytosis pathways, which involve distinct uptake mechanisms, often dependent on cholesterol. These alternative pathways remain poorly understood [82]. Figure 3A illustrates all these mechanisms of cellular internalization of PNs.

After endocytosis, NPs become confined within intracellular compartments. However, as this is not the site of action for most encapsulated molecules, endosomal escape occurs (Figure 3B). This process involves the degradation pathway, where NPs follow the endosome–lysosome route post-endocytosis, with the acidity and lysosomal enzymes facilitating the release of the encapsulated constituents [83,84]. Endosomal escape is crucial for the release of nanoencapsulated actives, and PNs achieve this by destabilizing the membrane (Figure 3B). This process involves nanoparticle disassembly triggered by a pH decrease, leading to membrane disruption through interactions between the hydrophobic regions of the free polymer and the lipid membrane. Consequently, lipophilic polymeric moieties and adjustments in the disassembly pH can optimize this mechanism, which must occur during the endo/lysosomal pathway to minimize cytotoxic effects. This highlights the significance of polymeric chemical functionality as a key factor for escape efficiency [85].

Once endocytosis followed by endosomal escape occurs, drug release from the polymer matrix can proceed through various mechanisms after in vivo administration. In this context, water is absorbed by the polymer, leading to pore formation, which results in the creation of degradation products that dissolve in the release medium. Increased contact with water triggers hydrolysis, producing acids that catalyze degradation, thus enlarging the pores, a phenomenon known as swelling, which is particularly relevant in systems based on hydrophilic polymers. The mobility of the polymer chains, which is influenced by their T_g (decreasing as the polymer molecular weight increases), has the potential to close the pores and regulate the release of the active ingredients. This release can occur through diffusion via water-filled pores, diffusion through the polymer matrix, osmotic pumping, and erosion [10,86].

The release of the encapsulated agent refers to the transport of the molecule from its initial position within the polymer matrix to the external surface for subsequent release into the surrounding environment. In this context, release may occur through four mechanisms (Figure 3C), namely, drug diffusion through water-filled pores, diffusion through the polymer matrix, osmotic pumping, and erosion.

Release via diffusion through water-filled pores depends on a concentration gradient. Water absorbed by the NPs penetrates the polymer matrix, and progressive hydration leads to the formation and expansion of water-filled pores, the structure of which evolves with matrix degradation. This facilitates drug diffusion as the pores become larger and more numerous. Conversely, in diffusion through the polymer matrix, release occurs predominantly by molecular diffusion, where the release rate is governed exclusively by the permeability and thickness of the membrane, and remains constant and independent of concentration gradients [28].

In addition to diffusion, drug transport through water-filled pores may also occur by convection. The porosity of the nanostructure promotes water influx, which is induced by osmotic pressure, facilitating drug release via osmotic pumping. Diffusion-controlled release is directly influenced by the effective diffusion coefficient of the drug within the polymer matrix [10].

Erosion, as a release mechanism, involves the degradation of the polymer matrix, altering the nanostructure in two ways: surface and bulk erosion. In surface erosion, the polymer begins to degrade at the outer layer of the matrix and progressively advances inward, with the degradation rate exceeding that of water penetration. In bulk erosion, water rapidly penetrates the entire polymer structure, promoting homogeneous degradation of the matrix. This type of erosion exhibits less predictable behavior and reduces the protective capacity of the carrier [28,87].

Mathematical models are also employed to understand the drug release mechanism from the polymer matrix to the external surface and, consequently, to its site of action. This is achieved through kinetic analysis using models such as Korsmeyer–Peppas, Higuchi, zero-order, Lindner–Lippold, Ritger–Peppas, Peppas–Sahlin, Weibull, and the Monte Carlo technique, incorporating both Fickian and non-Fickian processes, among others. Each particle follows a release pattern that involves complex processes and varied interactions with the cellular environment. Additionally, the release is influenced by factors ranging from polymer properties to cellular internalization mechanisms [88].

The absorption of PNs involves complex and multifaceted mechanisms, including overcome GIT barriers and intracellular release processes. Each absorption route offers specific advantages and challenges that must be addressed based on the therapeutic application [16]. In this context, the chemical functionality of polymers, their interaction with cell membranes, and controlled release dynamics are critical for drug delivery. Understanding these mechanisms and developing optimized nanocarrier systems are essential to enhance therapeutic efficiency, minimize adverse effects, and expand the potential for oral administration of PNs.

4 Polymer based nanoparticles for oral administration

4.1 Nanoparticles: oral administration based on natural polymers

Nanotechnological systems derived from natural polymers found in biological species, such as proteins and polysaccharides, are referred to as biopolymeric NPs. Examples of natural polymers utilized in these NPs include casein, zein, hyaluronic acid, alginate, and chitosan [89].

Biopolymers are macromolecules composed of repeating monomers linked by covalent bonds [90]. These materials are highly attractive as vehicles for oral drug delivery systems due to their strong mucosal adhesion properties and their ability to enhance paracellular transport of drug molecules. Additionally, they are easy to chemically modify, non-toxic, safe, biocompatible, and capable of regulating biodegradation in the body [91]. Figure 4 illustrates the polymers discussed in this section, highlighting those most commonly used for oral administration.

The abundance of functional groups in natural polymers enables modifications to enhance molecular target specificity, allowing for adaptation to specific therapeutic targets. Furthermore, their responsiveness to stimuli, particularly pH, makes them ideal for oral applications, given the diverse chemical environments of the GIT. Biocompatibility, low toxicity, and cost-effectiveness further support the use of biopolymers as nanocarriers for drug delivery.

4.1.1 Chitosan. Chitosan is the second most abundant natural polymer and one of the most extensively studied in biomedical sciences. Analysis of the studies presented in Table 3 confirms that it is among the most frequently utilized polymers in PNs for oral drug delivery. Structurally, chitosan (Figure 4a) is a linear polysaccharide composed of ᴅ-glucosamine monomers linked via β-(1→4) bonds [92,93].

The widespread use of chitosan can be attributed to the functional groups within its molecular structure, which confer a polycationic character. These groups are reactive and can be chemically modified through activation or cross-linking. The reactivity of the hydroxy and primary amine groups imparts complexing and chelating properties, enabling the production of chitosan derivatives with enhanced characteristics compared to the precursor polymer. For instance, trimethylation of the primary amino group increases its cationic nature, enhancing mucoadhesive properties. Thiolation of chitosan forms disulfide bonds with mucus glycoproteins and intra-chain, enhancing mucoadhesive properties. Other modifications include carboxylation, the addition of chelating agents, PEGylation, and lactose conjugation, which target specific functionalities to improve performance as a drug carrier [128-130].

Chitosan nanoparticles have been modified to overcome limitations associated with the delivery of hydrophobic and unstable drugs, such as rifampin. In the study by Motiei et al. [92], chitosan was functionalized with hydrophobic amino acids to form an amphiphilic inner core. This core was stabilized with a polyanionic cross-linker and coated with a pH-resistant shell, resulting in a multilayered structure. This system exemplifies how targeted chemical modifications can enhance the encapsulation capacity and physicochemical protection of sensitive drugs. Such strategies are particularly relevant for the development of PNs for oral administration, where resistance to hydrolysis and oxidation in the gastrointestinal tract is critical [131].

In this scenario, Ghosh et al. [115] encapsulated rifampicin in a chitosan nanocarrier and investigated its efficacy in a pH-responsive environment, ensuring rapid and more efficient (75%) delivery of rifampicin at intestinal pH, compared to the stomach environment. This behavior depends on the charge properties and the interaction between chitosan and sodium tripolyphosphate (TPP) molecules. At low pH, the amino groups become protonated, causing the molecule to adopt an extended conformation due to charge repulsion. The TPP molecule is also protonated, generating a lower charge density. At pH 4, both TPP and chitosan undergo deprotonation, with the protonation of chitosan being less affected, leading to a strong TPP–chitosan interaction that prevents rifampicin release. Conversely, at basic pH, the increased TPP charge neutralizes the charge density in chitosan, causing the collapse of the nanoparticle structure and the release of rifampicin [115].

The encapsulation of biological agents by NPs has become a reality and remains a field of constant interest, with advanced pharmacokinetic studies due to the use against diseases of global importance. The oral administration of these compounds presents a challenge due to the unstable environment in the GIT, which is subject to various types of degradation. Biopolymers are being studied to facilitate the administration of these macromolecules [132]. Interferon alpha (IFNα) is one such cytokine of therapeutic interest due to its immunomodulatory activity, which plays a key role in antitumor therapy by inducing cell apoptosis [133].

Building on this, Imperiale et al. [114] evaluated the pharmacokinetic profile of chitosan NPs loaded with IFNα and analyzed the cellular compatibility of the NPs in intestinal epithelial cells (Caco-2) and the human amnion-derived cell line (WISH). They also assessed the permeability of the NPs in mucin-secreting cells and determined the complete pharmacokinetic curve. The nanocarriers exhibited moderate permeability through the paracellular pathway, suggesting the ability to open epithelial tight junctions. The pharmacokinetic profile revealed IFNα bioavailability in plasma similar to that observed with subcutaneous administration. This study was a continuation of the research by Cánepa et al. [134], which demonstrated the stability of these formulations in the gastrointestinal tract, showing that chitosan as a carrier does not interfere with the biological activity of the protein, as evidenced by oral absorption in mice.

The versatility of chitosan was utilized by Yang et al. [111] encapsulate exenatide, using TPP as a cross-linking agent. Chemical modifications were performed to generate the trimethylchitosan derivative, which has a stronger positive charge, leading to a stable and viable formulation for oral use in the treatment of type-2 diabetes, as demonstrated in their pharmacokinetic and pharmacodynamic studies.

Trimethylchitosan (TMC) improves the low solubility of chitosan, particularly at physiological pH 7.4, by enhancing penetration and opening epithelial tight junctions in basic and neutral environments, thereby improving the paracellular transport of the drug molecule and reducing transepithelial electrical resistance [135,136]. In this regard, Farhadian et al. [118] manufactured trimethylchitosan NPs for encapsulating hepatitis B antigen (HbsAg) for the development of oral vaccines, coated with hydroxypropyl methylcellulose (HPMC). In vitro release studies demonstrated improved acid stability of TMC NPs, while preserving HbsAg after exposure to stomach pH, suggesting that TMC/HPMC NPs are a viable option for oral administration of the hepatitis B vaccine.

Stability is a challenge in vaccine development, especially for cancer vaccines. RNA, the key element in this process, encodes antigens responsible for humoral immunity but is inherently unstable due to its single-stranded structure and susceptibility to environmental degradation, particularly via the oral route [137]. Therefore, stabilizing elements are necessary, and NPs have been widely used because of their relatively safe, easily adjustable physical and chemical properties and high load capacity [126].

In this context, chitosan has been studied for its ability to protect nucleic acids from nuclease degradation, facilitating cellular entry through the formation of polyplexes driven by strong electrostatic interactions [138]. The positive charge of chitosan enables interactions with negatively charged nucleic acids, forming polymeric complexes. Consequently, the incorporation of genetic material can occur via encapsulation, adsorption, or electrostatic interactions, resulting in nanocapsules, micelles, and diverse morphologies and shapes, as well as varying release profiles [139].

Considering that, to reach their therapeutic target via oral administration, nucleic acids must overcome the mucosal barrier, tight junctions that block paracellular passage, epithelial cells, subepithelial tissue, and the harsh gastric and intestinal environments, a highly challenging biological context is created [140], as depicted in Figure 1. To address this challenge, and given that cysteine promotes both mucoadhesion and the opening of tight junctions, Han et al. [117] developed a trimethyl chitosan–cysteine conjugate (GTC) to formulate PNs for the co-delivery of antitumor shRNA and siRNA via oral administration. These therapeutic genes respectively induce apoptosis and inhibit angiogenesis in cancer. Following oral PN administration in tumor-bearing mice, tumor regression was observed, attributed to the synergistic effects of the two RNAs in inhibiting cell proliferation in vitro and tumor growth in vivo.

Since nucleic acids are widely utilized in cancer therapy due to their specific ability to regulate the expression of any associated gene [141] the findings of Han et al. [117] represent an effective approach for synergistic therapy via oral RNA delivery. Moreover, these findings open new possibilities for the application of chitosan conjugates with other biopolymers.

Alginate (Figure 4b) is among the most extensively studied biopolymers for forming conjugates with chitosan, as its anionic character complements chitosan’s cationic properties, resulting in a more stable nanomaterial. Additionally, alginate is water-soluble, exhibits mucoadhesive properties, and its pH sensitivity serves as a valuable tool for controlling the release of encapsulated molecules [142,143]. Thus, alginate, with carboxyl groups (COO⁻), undergoes protonation and contracts in acidic environments, while in basic environments, it swells due to the exchange of Ca²⁺ ions with Na⁺ [144].

The complementary characteristics of chitosan and alginate have been utilized to develop nanocarriers for the release of proteins and/or peptides, such as bovine lactoferrin (LF). LF is a cationic glycoprotein involved in iron transport, with immunomodulatory and anticancer activities mediated through diverse molecular mechanisms. Mahidhara et al. [145] incorporated LF into chitosan NPs coated with alginate, which solubilized the protein in an aqueous environment. Controlled release was achieved, with the nanoparticle undergoing endocytosis and transcytosis during LF transport, demonstrating the efficacy of these biopolymers in protecting the molecule from pH variations. Complementary preclinical studies validated these findings, showing that chitosan- and alginate-coated NPs enhance the bioavailability and metabolic stability of bovine LF, preventing its degradation in mouse plasma. Oral administration in mice demonstrated that the NPs crossed the mucosal barrier without damaging the molecule, exhibiting high anticancer activity against colon tumors. This effect was attributed to the improved bioavailability provided by the nanoformulation, which induced rapid tumor regression while protecting normal cells [146].

Similar results demonstrating the effectiveness of the chitosan–alginate combination were reported by Samarasinghe et al. [98], who encapsulated bovine lactoferrin in alginate–chitosan NPs for osteoarthritis treatment. These NPs were administered orally to mice, demonstrating nontoxicity and a reduction in joint inflammation, which were attributed to the physicochemical stability of the NPs in the gastrointestinal tract. Continuing their research on lactoferrin, Mahidhara et al. [112] developed chitosan-coated nanocapsules wrapped in alginate that achieved a 4.8-fold reduction in tumor size and prevented recurrence when compared to intraperitoneal injection of taxol and doxorubicin. The in vitro and in vivo findings (see Table 2) confirmed that the nanocapsules isolated the active payload, preventing enzymatic degradation, while functionalization facilitated targeted administration [32].

The ionic interaction between alginate and chitosan, forming smart, pH-sensitive polyelectrolytic nanocomposites [147], recently led Silvestre et al. [99] to encapsulate curcumin within alginate–chitosan NPs. Curcumin, a hydrophobic molecule that degrades rapidly under alkaline conditions and other environments, has significant biomedical applications [148]. In this study, NPs were incorporated into biofilms for oral administration, demonstrating controlled release and effective protection of curcumin from external factors.

The results discussed in this section highlight the potential of chitosan as a nanocarrier for innovative therapeutic platforms, providing more effective treatment options for various clinical conditions, including infectious diseases, cancer, and immunological disorders.

4.1.2 Zein. Zein (Figure 4c) is a vegetable protein extracted from corn, characterized by its amphiphilic nature due to a balance of hydrophobic and hydrophilic groups. Based on differences in molecular weight and solubility, zein is divided into fractions: α-, β-, γ-, and δ-zein. The α-zein fraction is the most abundant, accounting for 80% of its content, with a molecular weight ranging from 19 to 22 kDa. β-zein constitutes 10% of the total zein and is rich in methionine, while the γ- and δ-zein fractions together represent the remaining 10%. Structurally, zein predominantly consists of hydrophobic and non-polar amino acids, including glutamine, leucine, proline, and alanine [149,150].

Zein’s amino acid composition contributes to its insolubility in water, except under specific conditions, such as in the presence of high concentrations of urea, alcohol, anionic surfactants, or at high pH levels (≥11). Its hydrophobicity and solubility profile make zein an attractive nanocarrier as it physically encapsulates hydrophobic compounds, enabling sustained release. Zein is considered safe and can self-assemble into NPs with various structures, depending on the solvents and processing conditions used [151], as shown in Table 3.

The characteristics of zein enable its NPs to move slowly through the gastrointestinal tract, becoming trapped in the intestinal epithelium and persisting for more than 24 h until they are degraded or eliminated. This anti-digestibility property is significant for oral administration systems, highlighting the stability of zein-based nanocarriers [152].

Due to its ability to enhance the oral bioavailability of hydrophobic molecules, Zimath et al. [123] incorporated mometasone into zein NPs. Mometasone, a lipophilic drug with low aqueous solubility, currently lacks oral formulations. Despite its many side effects, it presents fewer diabetogenic effects compared to dexamethasone, making it a candidate of interest for oral delivery systems. In this study, the authors reported that zein NPs, measuring approximately 100 nm, promote intestinal translocation. Permeability studies indicated that the NPs effectively retain mometasone during transport across cell monolayers, resulting in slow and gradual absorption. In vitro release studies supported these findings, showing minimal release at acidic pH (1.2) and sustained, controlled release at intestinal pH (6.8). The strong and prolonged interaction of zein NPs with mucus extends the absorption time and systemic bioavailability of mometasone, suggesting their potential as a promising nanocarrier for oral administration.

Reboredo et al. [121] encapsulated insulin in zein NPs and coated them with PEG, a mucus-permeable agent, to evaluate the effects of the coating, which was applied by adsorption onto the particle surface after synthesis. This technique is frequently employed due to its simplicity and efficiency. In a rat model of diabetes, orally administered insulin-loaded NPs exhibited a hypoglycemic effect lasting 5 h, compared to 3 h for subcutaneously administered insulin. The PEG-coated NPs demonstrated greater potency.

Zein, is naturally mucoadhesive due to its intrinsic chemical properties. However, hydrophilic polymers such as PEG reduce interactions with mucosal components and enhance absorption in the intestinal epithelium by increasing mucus diffusivity, thereby improving the oral bioavailability of insulin-loaded NPs in the enterocytes, the main site of absorption. In contrast, uncoated NPs remained trapped in the mucus, positioned further from the absorptive epithelium. These findings suggest that PEG coating may be a viable strategy for improving the oral delivery of insulin by overcoming the intrinsic adhesiveness of zein, and appears to be a valuable strategy for improving the bioavailability of other biopharmaceuticals [121,153]. The role of PEG will be further explored in the section on synthetic polymers.

The interaction of zein with the intestinal mucosa, along with its ability to form stable nanoparticles with prolonged release, enhances the bioavailability of hydrophobic molecules. Therefore, based on the studies discussed in this review, zein is emerging as a viable alternative for safe and efficient drug delivery, particularly for chronic treatments that require sustained and effective release.

4.1.3 Casein. Casein (Figure 4d) is the most abundant protein in bovine milk, composed of four phosphoproteins: αS1-, αS2-, β-, and κ-casein [154]. These phosphoproteins are amphiphilic and form micelles through hydrophobic interactions stabilized by calcium phosphate nanoclusters, which act as bridges connecting the phosphoproteins. Casein naturally serves as a carrier of bioactive agents, reflecting its biological role in nutrient transfer from mother to offspring [155].

The versatility of biopolymers for chemical modification allows the design of casein nanocarriers to be tailored for specific therapeutic needs (Table 3). Gandhi and Roy [102] produced casein NPs loaded with doxorubicin for oral administration in the treatment of gastric cancer, requiring targeted release in the gastric region. To stabilize the nanosystem and enable release at acidic pH, they utilized excess Ca²⁺ ions, which enhanced the packaging of free casein molecules within the micellar network, precipitating as doxorubicin-loaded NPs. Approximately 90% of the drug was released at acidic pH, facilitated by proteolytic enzymes that cleave casein [156]. Additionally, the gastric environment destabilized the NPs, which exhibited a less negative zeta potential (−12.5 mV) due to the presence of excess calcium during the nanoparticle formation process.

In another scenario, Yuan et al. [104] developed casein nanocarriers with enrofloxacin, which needed to be absorbed in the intestinal region. Enrofloxacin, a broad-spectrum antimicrobial, has shown satisfactory results in animal studies for treating both extracellular and intracellular infections; however, its low solubility in water complicates its oral administration [157]. During the preparation of NPs, a casein solution adjusted to pH 12 was used to facilitate drug absorption in the intestinal region.

The release profile of the NPs was pH-dependent, with only 40% of enrofloxacin released at acidic pH after 24 h. This slow release is due to pepsin, an enzyme that cleaves peptide bonds with hydrophobic aromatic amino acids inside the casein nanoparticle, preventing drug release in the gastric environment. At basic pH, an immediate release followed by sustained release occurred due to the repulsive effect between the negative charges of enrofloxacin and casein at pH 7.4, which facilitated drug release from the nanocarrier [104,153].

The amphiphilic structure and the ability to form stable micelles enable casein to encapsulate bioactive compounds with limited solubility. The studies analyzed demonstrated that zein NPs release drugs in a controlled manner, which is pH-dependent, facilitating their adaptation to different regions of the GIT and promoting their absorption.

4.1.4 Hyaluronic acid. Hyaluronic acid (HA) is a natural anionic linear polysaccharide, first extracted from bovine vitreous bodies in 1934. It is composed of consecutive disaccharide units of ᴅ-glucuronic acid and N-acetyl-ᴅ-glucosamine linked together through 1,4- and 1,3-glycosidic bonds, as illustrated in Figure 4e [158]. Present in the body, and its polymer chain varies in size and molecular weight, which affects its biological function, determining the cell’s responsiveness to external signals and its interaction with the cellular matrix and membrane receptors [159].

HA performs physiological functions such as controlling tissue hydration and several functions related to receptor-mediated cell displacement, mitosis, and migration. The molecular weight and percentage of HA must therefore be carefully analyzed considering the therapeutic purpose and the type of carrier used [160]. It is a highly hydrophilic polymer, as disaccharides have a carboxylic group that ionizes at physiological pH, increasing its polyanionic nature. This characteristic allows metal ions to bind to the hydration envelope, increasing volume and forming loosely compacted hydrated matrices. This underpins its physiological functions such as wound healing, cell lubrication, and its rheological characteristics [161]. With the presence of various functional groups in its molecule, including glucuronic acid, carboxyl, N-acetyl hydroxy, and amine groups, HA can be easily conjugated and is ideal for modifying nanomaterials for oral administration [162].

At physiological pH, HA has a negative charge and functions as nanotransporter. Consequently, modifications to its surface can significantly influence its interactions with the surrounding microenvironment. This high surface potential is advantageous for maintaining the NPs in suspension, preventing aggregation or precipitation. Also, the dense negative charges cause a strong repulsive interaction in vivo between the modified nanotransporters and serum proteins that are also negatively charged, resulting in the prolongation of the plasma half-life of this nanostructure. Additionally, it creates a hydrophilic layer on the surface of the NPs, protecting them from opsonization by forming an additional energy barrier through bound water molecules, which extends their circulation time in the blood [163].

Oral absorption is increased through endocytosis since HA adheres to the mucous membranes of the gastrointestinal tract via its binding to specific receptors. This cellular uptake mechanism is influenced by the size, shape, and zeta potential of the NPs. According to [164], cells internalize spherical hyaluronic acid NPs smaller than 400 nm with a zeta potential between −10 and −20 mV. In this scenario, the pH variation in the gastrointestinal compartments affects the stability of the nanoparticle, its blood circulation time, and absorption across body membranes [165].

Wang et al. [94] (Table 3) analyzed the influence of the molecular weight of HA on the absorption of pH-responsive mucoadhesive NPs for the oral administration of insulin. The results demonstrated that NPs manufactured with high molecular weight HA exhibit greater protective capacity and a more pronounced prolonged release effect, extending the NPs’ permanence at the absorption site and enhancing the efficacy and absorption of insulin.

Due to the properties of HA and its ability to be functionalized with small molecules, Agboluaje et al. [96] developed hyaluronic acid NPs functionalized with bile acids, deoxycholic acid (DOCA) and taurocholic acid (TCA) to improve the oral absorption of deferoxamine (DFO). In this study, sonication was used within a broader preparation method that involves chemical conjugation and oxidation for the formation of NPs, aiming at the dispersion of aggregates and standardization of nanoparticle size.

DFO is an iron chelator used in patients with hemopathies, such as sickle cell anemia [166]. Bile acids were also evaluated to enhance oral absorption, and polymeric conjugates (HA-DFO, DOCA-HA-DFO, and TCA-HA-DFO) were synthesized. In vitro analyses for information on cytotoxicity, absorption, and chelation efficacy were performed, demonstrating that the oral absorption of the NPs increased as more TCA molecules were conjugated to hyaluronic acid. This likely occurs due to the increased hydrophilic nature, which facilitates their movement through the aqueous environment.

Considering the studies discussed in this review, HA’s high hydrophobicity and surface modulation capacity make it a promising biomaterial for oral nanocarriers, enhancing drug delivery and promoting an effective and controlled therapeutic approach.

4.2 Synthetic polymers and polymeric nanoparticle systems for oral use

Synthetic polymers are the most widely used polymeric nanocarriers due to their ability to control physicochemical properties, biodegradation, and chemical functionalization. Among the most common synthetic polymers, polyesters exhibit distinct characteristics based on their chemical properties, such as prolonged release, cell permeability, and ease of chemical conjugation. The best-known representatives include PLGA, PCL, and PEG [167].

Another class of synthetic polymers is the methacrylates, whose most widely used component is Eudragit^® (RS, RL, S, E), available in different types depending on its solubility profile. Eudragit is widely used for its pH sensitivity, enabling the intestinal release of proteins and vaccines following oral administration. Polymers derived from maleic anhydride represent a newer synthetic option for oral NPs and are also being used for antigen delivery. Poly(methylvinyl ether-co-maleic anhydride) (PVM/MA), commercially known as Gantrez^®, is the main representative of this class. Polymers such as polyhydroxybutyrate (PHB) and polyvinyl alcohol (PVA) are also employed in nanoformulations [168,169].

Figure 5 illustrates the chemical structures of these synthetic polymers, which, as the most widely used oral nanocarriers, will be discussed in this review, highlighting their physicochemical characteristics and current applications in the encapsulation of drugs, biological molecules, genes, and other substances.

As demonstrated in Section 4.1, oral NPs, although extensively studied for conventional drugs, represent an emerging and highly promising field. Consequently, synthetic polymers are also being investigated to address challenges related to the oral delivery of nucleic acids. This is due to their ability to encapsulate, adsorb, or conjugate various substances to their core or surface, thereby providing protection and controlled release. Their mucoadhesive, stimulus-responsive, or ligand-specific properties facilitate targeted oral gene delivery [170].

The following sections will present examples of the application of synthetic polymers in the delivery of nucleic acids, antigens, vaccines, and conventional drugs.

4.2.1 Poly(lactic-co-glycolic acid). PLGA is one of the most widely used and promising materials as a nanocarrier in drug delivery, as it promotes controlled release and regulates biodegradation. It is capable of entrapping most therapeutic products by manufacturing particles of varying sizes and shapes. The molecular weight, lactic-to-glycolic acid ratio, and concentration of the encapsulated active are parameters that adjust drug release. Another advantage of PLGA is its approval by the FDA for oral, topical, and intravenous use in humans, due to its biocompatibility and safety [171].

PLGA (Figure 5a) is a linear aliphatic polyester copolymer composed of lactic acid and glycolic acid, which can exhibit varying proportions depending on the manufacturing method [172]. Although it can be synthesized through various methods, the primary ones are polycondensation and ring-opening polymerization reactions, producing PLGA with low and high molecular weights, respectively. Reaction conditions influence the polymer’s physicochemical properties, as the monomer sequence affects its degradation rate and other physicochemical characteristics. The varying monomer proportions impact amphipathic properties, including polymer emulsification capacity. An increased glycolic acid content enhances the polymer’s hydrophilicity, resulting in faster degradation rates. Conversely, PLGA demonstrates greater resistance to hydrolysis when the terminal group is an ester, which occurs with a higher lactic acid proportion [173,174].

PLGA biodegrades through the cleavage of polymer chains via non-enzymatic hydrolysis of ester bonds or by mass erosion, releasing lactic and glycolic acids. As natural metabolites, these acids are eliminated through the Krebs cycle in the form of carbon dioxide and water. Consequently, PLGA undergoes complete degradation within a short period, minimizing the risk of adverse reactions [175].

Anwer et al. [176] prepared PLGA nanoparticles loaded with rivaroxaban (Table 4) with the aim of achieving sustained release to reduce the need for fasting doses. Rivaroxaban is an anticoagulant with low solubility, available in doses of 10, 15, and 20 mg, and its bioavailability is influenced by food intake. Release and pharmacokinetic studies were conducted comparing the nanoparticle formulation (RXB-PLGA-NP) with the commercial formulation (Xarelto^®). The nanoparticle exhibited improved and sustained release of rivaroxaban over 48 h (97.64%) compared to Xarelto^® (68.45%). Additionally, the relative bioavailability of the NPs during fasting (256%) and feeding (216%) were similar, as were the maximum absorption levels during fasting (553 ± 157 ng/mL, 4196 ± 546 ng·h/mL) and feeding (566 ± 40 ng/mL, 3589 ± 138 ng·h/mL). The authors attributed the sustained release pattern and increased bioavailability of the drug in the absence of food effects to the presence of the PLGA polymeric matrix and the nano-sized particles.

This polymeric matrix exhibits a three-phase release profile, characteristic of PLGA particles, although two-phase or single-phase patterns have also been documented [24]. The process begins with an initial burst caused by weakly encapsulated cargo or cargo adhered to the particle surface, followed by a slow and sustained release mediated by the progressive hydrolysis of the polymer matrix. The third phase involves the final release of the remaining substance due to particle erosion [218].

In 2017, Liu et al. [202] discussed this release behavior of PLGA as part of their efforts to enhance the oral administration of nuciferine, a drug with limited clinical application despite its antihyperlipidemic activity, due to its low bioavailability. These results reported are promising, as they utilized simulated gastric and intestinal fluids to study the release behavior of PLGA NPs. Their findings showed a rapid release of nuciferine within the first 12 h in both gastric and intestinal fluids, attributed to the drug being weakly bound or located near the particle surface. This was followed by a slower release in gastric fluids and a sustained, prolonged release in intestinal fluids. According to the authors, the acidic environment protonated the carboxyl groups of PLGA, leading to the aggregation of the NPs into a stable structure, thereby limiting drug release. Conversely, the basic environment facilitated the release of nuciferine by increasing water absorption and penetration into the particle core.

Structural modifications can be made to PLGA nanoformulations to enhance stability, release profiles, drug targeting, and particle circulation half-life. The most commonly used agents for such modifications are PEG and poloxamers. PEGylation, as it is termed, enhances immune functionality by leveraging its hydrophilic nature to prevent particle clearance by the reticuloendothelial system. Additionally, it improves blood interactions and increases mucus adhesion in gut-associated lymphoid tissue [219].

Wang et al. [196] prepared PEG-coated PLGA NPs for the oral administration of bavachin (NP-PLGA-PEG-Bav) and administered them to asthmatic mice. The study identified greater drug accumulation in the lung region, leading to reduced inflammation and clinical improvement compared to the free drug and uncoated NPs. PEG enhanced the molecule’s targeting to the target cells and improved tissue penetration.

Iqbal et al. [210] encapsulated siRNA in PEG-PLGA nanoparticles with amine groups on the surface for charge adjustment as the delivery of this molecule relies on cationic electrostatic interactions. siRNA plays a crucial role in reducing inflammation in cases of ulcerative colitis. Nucleic acids, however, are challenging to administer orally due to their degradation throughout the GIT, necessitating the use of PEG in the NPs. In vivo studies demonstrated the structural stability and integrity of siRNA following enzymatic degradation, with accumulation in the inflamed colon and promotion of its therapeutic action.

The results observed with PEGylation of PLGA systems can be attributed to the steric repulsion and van der Waals forces provided by the hydrated barriers of polyethylene glycol on the particle surface. The flexibility of PEG chains allows for free rotation of polymeric units, forming a hydrophilic crown around the NPs. This prevents interaction with immunological markers, increases circulation time in the body, and enhances the delivery of the active ingredient to the therapeutic target [220].

PLGA nanoparticles possess a negative surface charge, which can be converted to positive by modification with cationic polymers. This modification enhances interactions with the cell membrane, facilitating the absorption of NPs by macrophages and dendritic cells. Additionally, charge inversion can induce immune responses and enable cross-presentation of antigens [221]. Mohammed et al. [204] demonstrated the benefits of this positive charge by coating PLGA NPs loaded with mycophenolate mofetil with chitosan, a cationic polymer. The resulting zeta potential greater than zero enabled mucoadhesiveness, with minimal release in simulated gastric fluid and complete release over a prolonged period in intestinal fluid.

Considering the advantages of positive charge in PNs absorption, Amin et al. [16] chemically modified the surface of PLGA NPs to enable oral vaccine delivery. To identify the most suitable polymer for functionalization, they tested alginate, polyethylene glycol, and Eudragit, all of which were incorporated after nanoparticle formation. Alginate-coated NPs exhibited greater mucin binding and sustained protein release, making them the ideal formulation for delivering protein-based antigens to trigger a mucosal immune response. These findings demonstrate the ability of polymeric nanocarriers to encapsulate antigens, protecting them against gastrointestinal degradation and enhancing their uptake by M cells in Peyer’s patches [222].

Poloxamers (also known as Pluronic^®) have been used as a coating on PLGA nanoparticles due to their amphiphilic characteristics, which favor interactions with hydrophobic surfaces and biological membranes [223]. Poloxamers are copolymers consisting of two hydrophilic blocks of PEG separated by a hydrophobic block of poly(propylene oxide) (PPO). They are characterized by their ability to form various polymorphs, ranging from gel to solid states, depending on the molar mass ratios between the blocks. Their commercial nomenclature includes a letter indicating the morphism (L - liquid, P - paste, F - flakes) accompanied by digits (two or three) that correspond to structural parameters [224].

Considering the properties of poloxamers Zhou et al. [205] produced PLGA nanoparticles loaded with curcumin, incorporanting Pluronic F-127 during the nanoparticle formation process. The polaxamer spontaneously arranged at the nanoparticle interface, resulting in the formation of a coating layer. This functionalization enhanced mucus penetration and increased cellular uptake efficiency in macrophages, with the coated particles exhibiting greater anti-inflammatory activity and therapeutic efficacy. Among the various pharmacological actions of curcumin, its anti-inflammatory activity and ability to reduce cell infiltration have led to its application for ulcerative colitis, an inflammatory disease affecting the colonic mucosa [225]. Despite its potential, curcumin’s biopharmaceutical limitations restrict its use, making the results reported particularly promising in the field of nanotechnology.

As discussed in this review and other studies [226-228], PLGA nanoparticles are the most promising nanocarriers due to their ability to encapsulate a wide variety of pharmaceutical actives, providing controlled release and biodegradation. Modifications to the PLGA surface improving its properties, enhancing stability, reducing enzymatic degradation, modulating interaction with target cells, and positively influencing nanoparticle absorption and immune response [229]. Therefore, PLGA can revolutionize oral treatments and offer new perspectives for various therapies.

4.2.2 Polycaprolactone. PCL (Figure 5b) is an aliphatic, linear, semicrystalline, and hydrophobic polyester polymer. Its application in nanostructured systems is attributed to its slow biodegradation, biocompatibility, low toxicity, and thermal stability. Additionally, the ease of surface modifications enhances its adaptability to various configurations. It is a product approved by the FDA for human use [230].

PCL is synthesized through the ROP of the ε-caprolactone monomer, which can proceed via cationic, anionic, or monomer-activated and coordination–insertion mechanisms. The ROP approach used influences molecular weight distribution, end-group composition, and the chemical structure of the copolymers [231].

The advent of faster-degrading polymers such as PLGA and PLA limited the use of PCL for many years. This was due to the prevailing belief in the scientific literature that its low degradation rate would hinder its application in NPs. However, with reduced particle size, the surface area increases, leading to an accelerated degradation rate. This occurs because the enzymatic effect is surface-driven, as diffusion within the hydrophobic polymer matrix is limiting. Consequently, the degradation process involves enzymatic adsorption followed by hydrolysis, which facilitates polymer breakdown. Therefore, a larger surface area correlates with higher degradation rates [232].

Considering the slow degradation of PCL, its use in oral NPs has been attracting interest, particularly for sustained drug administration. In this context, the PCL release profile is biphasic, beginning with water diffusion through amorphous regions, followed by the hydrolytic cleavage of ester bonds. This process results in mass loss and increased crystallinity due to the formation of low-molecular-weight oligocaprolactone (OCL), which undergoes phagocytosis and is subsequently cleaved by esterases. The second phase involves the hydrolytic degradation of these crystalline domains, with chain cleavage occurring either at the final position or randomly, depending on high or low temperatures, respectively, and is autocatalyzed by the carboxylic acids formed during the reaction. Oxalate ester bonds are broken by hydrogen peroxide, producing a reactive intermediate that instantly decomposes into carbon dioxide [233]. Table 4 describes studies using PCL-based NPs.

Insulin instability in the gastrointestinal tract is a significant challenge for oral administration. To address this Kalaycioglu et al. [192] protected insulin-loaded PCL NPs by coating them with alginate and chitosan. Additionally, Pluronic F-127 was incorporated into the hydrophobic PCL matrix to enhance water permeability. Alginate was selected for its pH sensitivity, while cationic chitosan was used to neutralize the anionic alginate and facilitate permeation through the gastrointestinal tract. The authors achieved increased stability with the double coating, and release studies demonstrated pH responsiveness, protecting insulin from degradation in the gastric environment.

In vivo studies are essential to evaluate the performance of formulations in biological systems. In this regard Moreira et al. [193] orally administered PCL nanoparticles loaded with α-tocopherol to rats with polyarthritis, a model equivalent to rheumatoid arthritis. They compared the results with free and intraperitoneally administered α-tocopherol. The nanoencapsulated α-tocopherol demonstrated greater efficacy, improving joint inflammation and systemic oxidative stress in the rats.

Modifications to PCL, considering the purpose of nanoformulation, can be beneficial as introducing functional groups into the polymer structure adjusts its hydrophilicity, biodegradation rate, and bioadhesion. PCL functionalization allows modifications by incorporating drugs, bioactive fractions, and stimuli-responsive components. Generally, functionalizations are performed on ε-caprolactone monomers through a bond due to its simplicity and minimal interference with ROP. Water-soluble polymers such as PEG (Figure 5c), mPEG, polyethylene oxide (PEO), and polyethyleneimine (PEI) are copolymerized, while hydrophilic polymers like starch and clay are blended with PCL [234,235].

PEGylation of PCL, as with PLGA, enhances the molecule’s hydrophilicity and prevents absorption by the reticuloendothelial system, thereby increasing blood circulation time. Additionally, it impacts the crystallinity of the polymer by lowering the degradation temperature, shortening the crystallization time, and increasing the average crystal size [236].

In this context, PEG-PCL has been used as a carrier for hydrophobic drugs. Kurd et al. [189], utilized this copolymer to encapsulate indinavir, an antiretroviral with limited oral application due to its biopharmaceutical properties. Pharmacokinetic studies in their article demonstrated increased plasma concentrations of indinavir administered as a mPEG-PCL nanoparticle, along with prolonged systemic circulation compared to the free drug.

Poudel et al. [195] reported promising results using PEG-PCL for the nanoencapsulation of nucleic acids, addressing the primary challenge of gastric protection in oral administration. The nucleic acids formed complexes with PEI, a cationic polymer, and were encapsulated within PEG-PCL nanoparticles to prevent degradation. The nanocarrier protected the complexes in a simulated gastric fluid environment, releasing them in the intestinal fluid due to the action of lipases. Oral administration of these systems in mice showed the presence of the complex in the intestine and its delivery to the colon, successfully inducing gene expression following absorption.

Modifications to PCL have shown potential in optimizing NPs. The studies analyzed in this review highlight advantages such as stability, controlled release, increased systemic absorption, improved hydrophilicity, and protection of drugs sensitive to the gastric environment, preventing early degradation The combination of these benefits, demonstrated in animal models, positions PCL as a viable nanocarrier option for the oral administration of drugs.

4.2.3 Eudragit^®. Eudragit^® (Figure 5d) is a line of methacrylate-based polymers registered by GmbH & Co. KG Darmstadt in Germany, first marketed in the 1950s. Its chemical name is poly(butyl methacrylate-co-(2-dimethylamino) ethyl methacrylate-co-methyl methacrylate), and it belongs to the class of polymethacrylates, which are cationic or anionic synthetic polymers of dimethyl aminoethyl methacrylate, methacrylic acid, and methacrylic acid esters in varying proportions. These polymers are synthesized through the polymerization of acrylic and methacrylic acids or their esters [168].

Classified as cationic, anionic, and neutral, Eudragit^® is available in the form of powders, granules, aqueous dispersions, and organic solutions. The most commonly used types for oral administration in NPs are Eudragit^® E, Eudragit^® RL, Eudragit^® RS, and Eudragit^® S100 [237]. Table 4 describes studies using Eudragit^®-based NPs.

Eudragit^® E is a cationic copolymer that is soluble at gastric pH due to the hydration of dimethylamino groups, which undergo protonation under these conditions. This property makes it suitable for oral administration formulations [238]. Chaurasia et al. [179] developed NPs of Eudragit^® E100 loaded with naringenin to enhance its oral bioavailability and anticancer potential. Cancer cells are negatively charged; therefore, through electrostatic attraction, the drug delivery from NPs with a positive surface charge was passively directed, enhancing the therapeutic effect. The anticancer activity was evaluated in mice, showing a 96-fold increase in bioavailability and a 16-fold increase in cytotoxicity, with significant tumor suppression. The cationic properties of the NPs improved the efficacy of naringenin against colorectal cancer.

The ammonium groups present in the Eudragit^® RL molecule are responsible for its permeability. This cationic polymer is composed of methyl methacrylate, ethyl acrylate, and a smaller proportion of methacrylic acid ester with quaternary ammonium groups. Its structure makes it highly stable and hydrophobic, with excellent extrudability and swelling properties that are independent of pH [239,240].

Considering the gastrointestinal stability of Eudragit^® RL, Pawar et al. [181] utilized the polymer to develop NPs for stabilizing Pickering nanoemulsions for oral administration. The formulation does not contain any surfactants; the nanoparticle itself acts as the stabilizer. Ketoprofen is encapsulated within the Pickering system, where the Eudragit^® particles protect the drug and enable controlled release based on the pH of the gastrointestinal tract. In vitro studies demonstrated prolonged ketoprofen release for up to 6 h (82%), whereas the control formulation without NPs completed the release process within 1 h. These findings highlight the polymer’s pH sensitivity as a critical factor in achieving controlled release.

Eudragit^® RS shares the same characteristics as RL but differs in the proportion of ammonium groups, containing only 5% quaternary ammonium. This composition significantly reduces its intestinal permeability [241]. The use of Eudragit^® RS in combination with other materials can compensate for this limitation. For instance, Ma et al. [182] compared the tissue distribution of free Eudragit^® RS NPs and chitosan microcapsules loaded with enteric-coated NPs after oral administration in mice (Figure 6). The microcapsules enhanced the delivery of NPs to the colon, with complete release observed in the lower part of the small intestine. This suggests that the protection provided by the nanoparticle was effective.

The anionic polymers Eudragit^® S100, Eudragit^® L100, and Eudragit^® L100-55 are composed of poly(methacrylic acid-co-acrylates). Eudragit^® L100 distinguishes itself from S100 by having a higher proportion of active carboxylic groups (48.3%), which contributes to their pH-dependent solubility profiles. Eudragit^® L100 dissolves at pH values above 6, while S100 dissolves at pH values above 7. Eudragit^® L100-55, in contrast, is a methacrylic acid/ethyl acrylate copolymer that dissolves at pH values greater than 5.5 [242].

Zhang et al. [178] produced NPs of thiolated Eudragit^® L100 (Eul-cys) and reduced glutathione (GSH) loaded with insulin. Thiomers are mucoadhesive polymers capable of covalently binding to mucus. The thiolated NPs exhibited a high degree of swelling in the intestinal region and demonstrated rapid in vitro release of insulin. The authors explained that the thiolated complex swelled significantly at intestinal pH, interacting with the mucus and mucin to form disulfide bonds with the sulfhydryl groups. This interaction created a physical and mechanical barrier that facilitated nanoparticle transport. The study concluded that combining these polymers represents a promising strategy for increasing the oral bioavailability of insulin. Furthermore, studies like this contribute to advancing the understanding of Eudragit as an oral nanocarrier.

4.2.4 Alternative synthetic polymers. New polymers with the versatility to enable the oral delivery of molecules with limited solubility are emerging, as described in Table 4. Polyanhydride NPs are a notable example of this innovation, offering biocompatibility, biodegradability, and the ability to promote sustained drug release.

One of the most widespread examples within this group is the poly(methyl vinyl ether-co-maleic anhydride) (Figure 5e) derivatives, marketed as Gantrez^®. This polymer is an alternating copolymer of methyl vinyl ether and maleic anhydride. Its primary characteristic is its ability to establish bioadhesive interactions in the GIT due to the formation of carboxylic groups during the hydrolysis of anhydride residues in the copolymer. These carboxylic groups form hydrogen bonds with mucosal constituents, enhancing adhesion. Another advantageous feature of this polymer is the ease of modifying its NPs to improve their physicochemical and biological properties, making it a versatile carrier for drug delivery applications [169,243].

The mucoadhesion capacity of Gantrez^®, as demonstrated by Patel et al. [186] was responsible for the higher bioavailability of its NPs loaded with rifampicin compared to another nanosystem using poly(ethylene sebacate), a hydrophobic polymer. The study compared lung accumulation after the oral administration of rifampicin-loaded NPs produced with these two polymers. Rifampicin, a tuberculostatic drug, exhibited improved targeting and retention in the lungs when delivered using Gantrez^® NPs due to their enhanced mucoadhesive properties.

Coating nanoparticles with PEG is a well-established strategy in oral drug delivery systems, as discussed in this review. Thus, Inchaurraga et al. [185] studied the effect of pegylation on Gantrez^® NPs mucus permeability using PEG of varying molecular weights (PEG 2000, PEG 6000, and PEG 10000). Although the uncoated NPs showed mucoadhesive properties in the stomach, those with PEG reached the epithelial surface of the intestine, and the highest permeations occurred with PEG of a lower molecular weight. The study did, however, show a coating limit for efficiency in mucus permeation. According to the authors, high PEG density makes it difficult for the NPs to diffuse, as the coating is less flexible due to entanglements between the macrogol chains (which facilitates interaction with the mucus). This decreases their ability to reach enterocytes, which is why the entanglement of PEG chains was suggested as a factor that negatively influences bioadhesion.

Other studies are being carried out with polyanhydro NPs, demonstrating their versatility for conjugation with various substances with promising results. Iglesias et al. [184] compared various ligands and demonstrated that the use of mannosamine consistently increases the permeative capacity through mucus. Inchaurraga et al. [183] investigated another type of coating with characteristics similar to PEG, that is, thiamine. In this study, different coating methods, such as post-synthetic adsorption and desolvation, were applied to nanoparticles, and both approaches yielded comparable physicochemical and biodistribution properties. The strategy aimed to enhance gastrointestinal transit and epithelial interaction. This opens a discussion regarding the selection of less costly methods with greater potential for industrial scalability.

Lipophilic drugs have limitations in being loaded into poly(methylvinylether-co-maleic anhydride). NPs, due to the characteristics of the polymer itself, so modifications using cyclodextrins have been used to improve this performance. The increase in oral bioavailability with this strategy occurred with atovaquone [244], and camptothecin [245]. Lucio et al. [215] demonstrated the antidiabetic effect of glibencamide using this approach. However, Huarte et al. [246] comparing Gantrez^® NPs with different conjugates (PEG and beta-cyclodextrin), demonstrated that although both increased the relative oral bioavailability of camptothecin, this value was 2.6 times higher with PEG.

The properties of PEG, which were discussed in this review, justify this result. However, the incorporation of cyclodextrin facilitates the encapsulation of lipophilic drugs, leading to increased solubility, oral bioavailability, and stability. In addition, it modulates and sustains the release of molecules from PNs through their interactions, forming an inclusion complex with reversible bonds [247]. Therefore, they are rapidly hydrolyzed because they are not metabolized by gastric acids or amylase [248].

Modifications using PEG are a common approach in polymeric nanocarriers for oral administration. Chaturvedi et al. [214] fabricated PHB NPs conjugated with PEG and deoxycholic acid (DOCA), loaded with insulin. This system was granulated and coated with Eudragit^®, which prevented the release of insulin in the acidic environment with 11.6% bioavailability. There was rapid cellular uptake and internalization, with increased intestinal absorption and a hypoglycemic effect sustained for 24 h after oral administration.

PHB (Figure 5f) is a biodegradable and promising polymer that, upon degradation, generates 3-hydroxybutyric acid, a component produced by endogenous ketogenesis, suggesting its biocompatibility. Its degradation is slow and mediated by enzymatic hydrolysis, starting with the diffusion of water molecules in the polymer matrix, cleaving its chains. Lipases and esterases are responsible for the erosion of the polymer surface [249].

Niu et al. [211] developed a novel oral peptide delivery nanosystem using insulin as a model. It consisted of an insulin complex with a cell-penetrating peptide (CPP) modified hydrophobically with lauric acid (C12) and octa-arginine (r8). The entire complex was protected by a coating layer of PEGylated polyamino acids (PGA-PEG) to prevent nanoparticle aggregation and enhance mucodiffusion. The nanosystem was stable, protected insulin from degradation in the gastrointestinal tract, diffused through intestinal mucus, and achieved an uptake of 47.59 ± 5.79%. In vivo studies demonstrated that retention in enterocytes did not translate into enhanced systemic absorption.

Ha-Lien Tran et al. [187] explored complex interpolymer structures with HPMC and chitosan linked with TPGS (polyethylene glycol ᴅ-α-tocopherol succinate) for the oral administration of docetaxel. Two nanoparticle manufacturing strategies were carried out: In the first, HPMC-chitosan was formed, conjugated with TPGS, and followed by docetaxel loading. In the second, the drug was first loaded with TPGS and then linked to the HPMC-chitosan conjugate. The first production method avoided release at the beginning of the GIT. Additionally, the chitosan amino group involved in the conjugate binding made it impossible to dissolve this biopolymer at acidic pH. PVA acted not only as a stabilizer but also as a cross-linker. There was greater permeability in CaCo₂ cells and the cellular uptake, demonstrated facilitated transport of NPs with docetaxel from the small intestine to the bloodstream for subsequent targeting to the tumor site.

Considering that spherical NPs are most studied for oral administration Banerjee et al. [213] manufactured polystyrene particles with different sizes and shapes to analyze the uptake and transport through intestinal cells, with emphasis on the rod shape compared to spheres or discs. Although the rod shape improved the efficacy of NPs for oral administration, in vivo studies are necessary to elucidate and confirm the results found.

The alternative synthetic polymers discussed in this section provide promising solutions to address the challenges of oral drug delivery. Their key attributes include mucoadhesion, controlled release, ease of structural modification, and the capacity to encapsulate hydrophobic molecules. Nevertheless, additional in vivo studies are essential to confirm the efficacy and safety of these systems and assess their potential for industrial scalability.

4.3 Hybrid nanoparticles – the future in oral drug delivery

Solid lipid nanoparticles (SLNs) possess a crystalline lipid core stabilized by interfacial surfactants, which can encapsulate lipophilic molecules due to the intrinsic properties of lipids. Hydrophilic molecules, in turn, tend to localize at the surface or within interfacial regions, depending on the nanoparticle composition and the nature of the surfactants used. These SLNs are effective as delivery systems for drugs, nucleic acids, and vaccines, offering advantages such as high drug entrapment efficiency, ease of production, biocompatibility, scalability, and targeted delivery. However, they also present limitations, including reduced stability, rapid release of the active ingredient, excessive polydispersity, and a low weight-to-volume ratio, which restricts the payload that can be effectively encapsulated [250].

In this context, a strategy involving lipid–polymer hybrid nanoparticles (LPHNs) to leverage the advantages of biodegradable PNs and biomimetic phospholipids has been investigated to overcome the limitations of individual systems. These hybrid NPs (Figure 7) are formed from a polymer core wrapped in a lipid layer. They feature a drug-encapsulating polymer core, a lipid layer surrounding the polymer core, and an external lipid–PEG layer in some cases. For oral administration formulations, this type of nanocarrier offers gastrointestinal stability, which is a significant barrier for oral nanostructured systems [251].

The inner lipid membrane may play a critical role in drug protection, acting as a hydrophobic barrier that reduces water diffusion and minimizes chemical degradation processes within the NP. The outer lipid layer may modulate the NP’s interactions with the immune system, influencing plasma protein adsorption and, consequently, affecting systemic circulation time. [252]. This is because PNs, due to their hydrophobic surface, are recognized as foreign material, triggering an immune response, short circulation time, and rapid elimination [251].

Table 5 illustrates research with hybrid NPs for oral administration, aimed at increasing encapsulation efficiency for therapeutic molecules such as peptides. Boushara et al. [253] incorporated 2% methocel and doubled the encapsulation efficiency of insulin compared to formulations with conventional lipid nanocarriers, protecting it from degradation in the gastrointestinal tract. The hydrophobic nature of lipid nanoparticles impedes the encapsulation of hydrophilic molecules like insulin. Methocel is a non-ionic, hydrophilic polymer that is stable from pH 2 to 13, acting as a surfactant, stabilizing the emulsion and reducing surface and interfacial tension.

Wang et al. [254] fabricated a stable hybrid nanoparticle in the gastrointestinal tract through in situ conjugation between oxidized dextran and bovine serum albumin. This was done to encapsulate astaxanthin, a lipophilic compound, which had its antioxidant activity increased in aqueous environment and sustained release in simulated gastrointestinal fluids. Oxidized dextran has aldehyde groups that stabilize glyceryl distearate, and through in situ conjugation, form the hybrid NPs. Stability was achieved due to the covalent bond between the oxidized dextran aldehyde and the amino group of bovine serum albumin. The results demonstrate the feasibility of encapsulating lipophilic molecules through this delivery system for oral administration.

Oral administration of insulin is a necessity for users due to dosage convenience, causing nanocarrier systems to be studied exhaustively aiming at various tools to increase the entrapment of this molecule. Boushra et al. [255] incorporated two polymers into SLNs, resulting in bi-polymeric lipid nanocarriers. PEG was added to the internal aqueous phase and PLGA to the lipid phase, achieving 50% (20% without the bi-polymer) encapsulation efficiency and preserving the chemical stability and biological activity of insulin.

Promising results with LPHNs may represent an alternative for molecules with low oral bioavailability, which is why Drais and Hussein [260] prepared hybrid nanocarriers loaded with felodipine to increase their solubility and improve their therapeutic effect. The use of chitosan in this formulation demonstrates the wide applicability of this biopolymer as a nanocarrier. The release and intestinal permeation studies demonstrated prolonged release and stability at the pH of the gastrointestinal tract. In addition, encapsulation efficiency was above 70%.

The use of combined compounds and vehicles has been frequently used in the development of nanocarriers, especially for oral drug administration. The gastrointestinal tract is an important physiological barrier with enzymes, changes in the chemical environment, and long path; hence, the encapsulation of hydrophilic and hydrophobic molecules has limitations. Therefore, lipid–polymer hybrid NPs represent the future of nanocarriers, as their polymeric core wrapped in a lipid layer [261,262] has demonstrated satisfactory results for controlled drug release, increased encapsulation rates, and stability in the GIT. These characteristics represent an advance in the development of NPs for oral administration.

Conclusion

This review reinforces the pivotal role of polymers in advancing oral drug delivery through nanoparticulate systems. The structural and functional diversity of natural and synthetic polymers enables the development of nanocarriers capable of protecting drugs from degradation, improving solubility, modulating release profiles, and enhancing bioavailability. Natural polymers, such as chitosan and alginate, provide advantages in terms of biocompatibility, mucoadhesion, and permeability, while synthetic polymers like PLGA and PCL offer better control over degradation rates and greater flexibility for chemical modification and are also biocompatible. Hybrid systems combining different polymer classes and lipids have demonstrated synergistic effects, although they still face production and scalability challenges.

In this context, the lack of standardization in nanoparticle characterization, poorly defined absorption mechanisms, and the scarcity of in vivo studies with proven clinical efficacy remain significant limitations in the development of oral polymeric nanoformulations. Another barrier to the advancement of clinical application is the absence of clear regulations for this type of formulation.

Smart polymers with the ability to release drugs in response to specific stimuli represent a tangible future direction in this field, aiming to optimize therapeutic profiles. Furthermore, ensuring the safe administration of oral polymeric nanocarriers will require scalable manufacturing technologies supported by bioinformatics and artificial intelligence. Therefore, advances in polymer science and nanotechnology are essential for expanding the application of these systems to peptides, nucleic acids, genes, and poorly soluble molecules. All of this consolidates PNs as a promising strategy for more efficient oral therapies.
